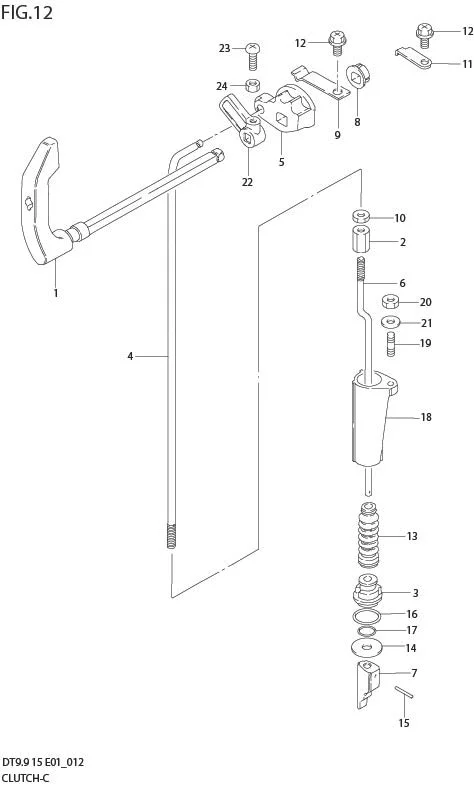

FIG 12 CLUTCH

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	21110-90L01-000 SUB: 21110-93912-000	LEVER, CLUTCH	1	Rp184.000
2	23311-95DL0-000 SUB: 23311-94300-000	TURNBUCKLE, CLUTCH ROD	1	Rp72.500
3	25211-93901-000	GUIDE, SHIFT ROD	1	Rp50.000
4	DISCONTINUE SUB: 23111-93901-000	ROD, CLUTCH	1	-
5	DISCONTINUE SUB: 23211-93900-000	ARM, CLUTCH ROD	1	-
6-1	DISCONTINUE SUB: 25111-93910-000	ROD, SHIFT (S)	1	-	L:245
6-2	25100-93820-000 SUB: 25111-93900-000	ROD, SHIFT (L)	1	Rp398.000	L:372
6-3	DISCONTINUE SUB: 25111-93920-000	ROD, SHIFT (X)	1	-	L:499
6-4	25111-93911-000	ROD, SHIFT (S)	1	Rp180.000	DT9.9:680080%
6-5	25111-93901-000	ROD, SHIFT (L)	1	Rp202.000	DT9.9:680080%
6-6	25111-93921-000	ROD, SHIFT (X)	1	Rp213.000	DT9.9:680080%
7-1	DISCONTINUE SUB: 25311-93E10-000	CAM, SHIFT	1	-	!SHIFT ROD SET
7-2	25311-93E11-000	CAM, SHIFT	1	Rp242.500	DT9.9:680080%
8	DISCONTINUE SUB: 21220-93900-000	BUSH, CLUTCH LEVER	1	-
9	23213-93900-000	SPRING, NOTCH PLATE	1	Rp23.500
10	29141-93J00-000	NUT	1	Rp18.500	?09140-06020
11	21126-95L10-000 SUB: 21126-92D00-000	HOLDER, CLUTCH SHAFT	1	Rp20.000
12	02162-06127-000	BOLT	2	Rp12.500
13	25222-93902-000 SUB: 25222-93901-000	BOOT, SHIFT ROD	1	Rp67.500
14	09160-05047-000	WASHER (5.5X24X1.6)	1	Rp12.500
15-1	09205-02006-000	SPRING PIN	2	Rp11.000
15-2	09205-02004-000	SPRING PIN	2	Rp10.500	DT9.9:680080%
16	09280-05005-000	O RING (D:3.5,ID:4.9)	1	Rp13.500
17	59291-94J00-000 SUB: 09280-19006-000	O RING (D:3.6,ID:18.6)	1	Rp31.000
18	25215-94J00-000 SUB: 25205-93901-000	COLLAR, SHIFT ROD	1	Rp54.000
19	DISCONTINUE SUB: 09108-05007-000	STUD BOLT	1	-
20	09140-05005-000	NUT	1	Rp20.000
21	09160-05029-000	WASHER	1	Rp14.000
22	DISCONTINUE SUB: 21313-93900-000	ARM, ELECTRICAL NSI	1	-
23	DISCONTINUE SUB: 02112-05167-000	SCREW	1	-
24	08310-00057-000	NUT	1	Rp13.500
