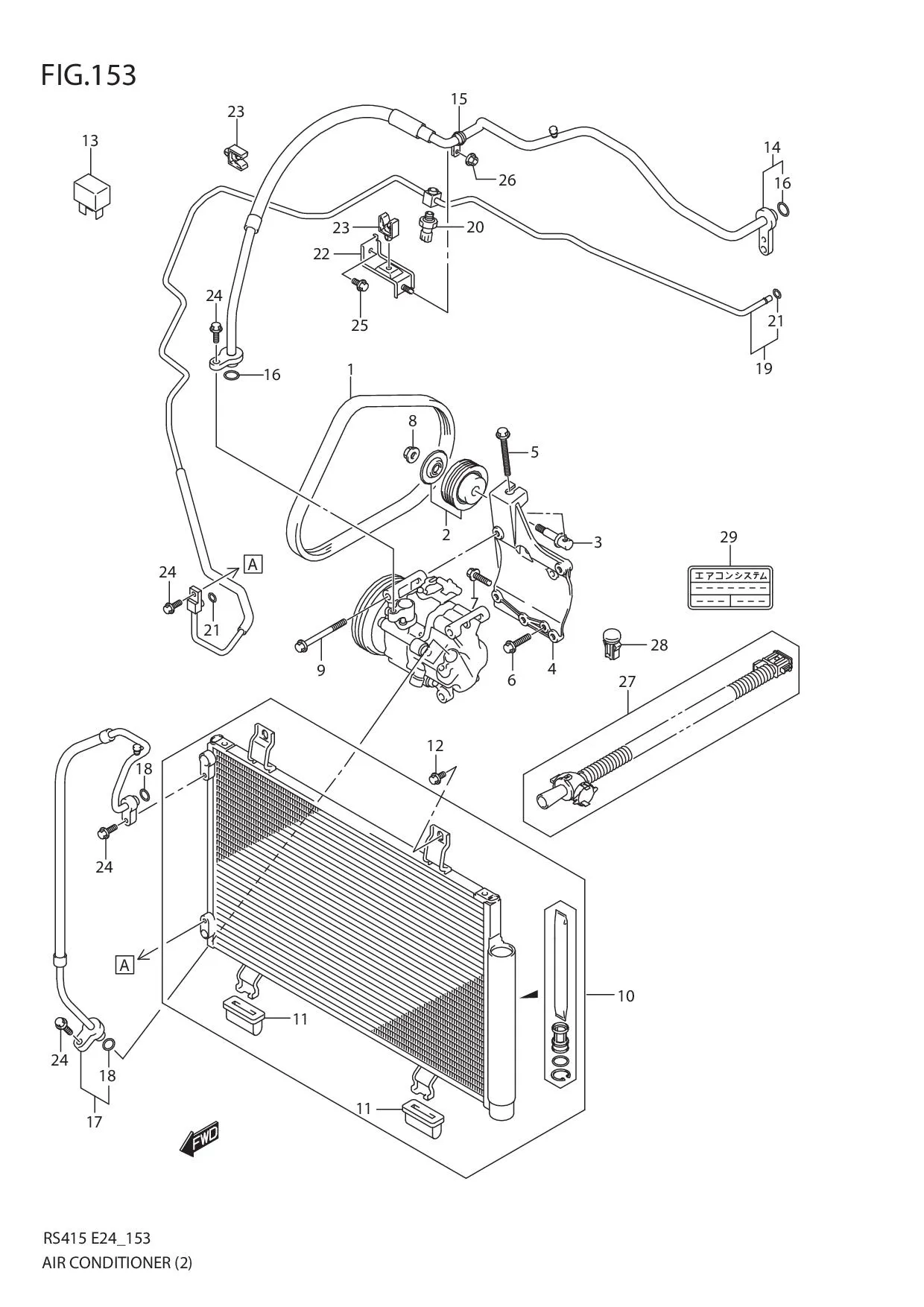

FIG.153 AIR CONDITIONER (RHD)

FIG.153 AIR CONDITIONER (RHD)
No No. Part Description Qty Price Per Pcs Remarks
1 17521-86550-000
SUB: 17521-86500L000		 V BELT (4PK815) 1 Rp64.500
2 49160-70AA0-000 PULLEY ASSY, BELT TENSION 1 Rp949.000
3 49161-60B10-000 BOLT 1 Rp128.500
4 95111-63J00-000 BRACKET, COMPRESSOR 1 Rp916.500
5 95126-58J00-000
SUB: 09103-08352-000		 BOLT 1 Rp48.500
6 01550-0830B-000
SUB: 01550-08303L000		 BOLT 3 Rp3.000
7 01550-0855B-000
SUB: 01550-08553-000		 BOLT 1 Rp24.000
8 08316-1010A-000
SUB: 08316-10103-000		 NUT 1 Rp3.500
9 01550-0875B-000
SUB: 01550-08753-000		 BOLT 4 Rp41.000
10 95310-63J00-000 CONDENSER ASSY 1 Rp6.291.500
11 DISCONTINUE
SUB: 95851-75F00L000		 •BUSH 2 -
12 02162-0612B-000
SUB: 02162-06123-000		 BOLT 2 Rp16.000
13 38860-76F01-000
SUB: 38860B76F01N000		 RELAY 1 Rp47.000
14 95710-63J00-000 HOSE, SUCTION 1 Rp1.109.000
15 DISCONTINUE
SUB: 95771-50G10-000		 •CLAMP 1 -
16 95896-50G00-000
SUB: 95896B50G00N000		 •O RING 2 Rp19.000
17 95720-63J00-000 HOSE, DISCHARGE 1 Rp862.000
18 95895-50G00-000
SUB: 95895B50G00N000		 •O RING 2 Rp12.500
19 95731-63J00-000 PIPE, LIQUID 1 Rp2.143.500
20 95546-58J00-000
SUB: 95546B58J00N000		 •SENSOR, PRESSURE 1 Rp326.000
21 95891-50G00-000
SUB: 95891B50G00N000		 •O RING 2 Rp12.500
22 DISCONTINUE
SUB: 95781-63J00-000		 STAY, SUCTION HOSE 1 -
23 09403M08331-000 CLAMP 4 Rp6.500
24 01550-0620B-000
SUB: 01550-06203L000		 BOLT 5 Rp3.500
25 02162-0612B-000
SUB: 02162-06123-000		 SCREW 1 Rp16.000
26 08316-1006A-000
SUB: 08316-10063L000		 NUT 1 Rp2.000
27 DISCONTINUE
SUB: 95640-63J00-000		 SENSOR ASSY, ROOM TEMP 1 - E35
28 95642-64G20-000 SENSOR, SUN LIGHT 1 Rp578.000 E35
29 95956-84G50-000 LABEL, REFRIGERANT 1 - E35

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
