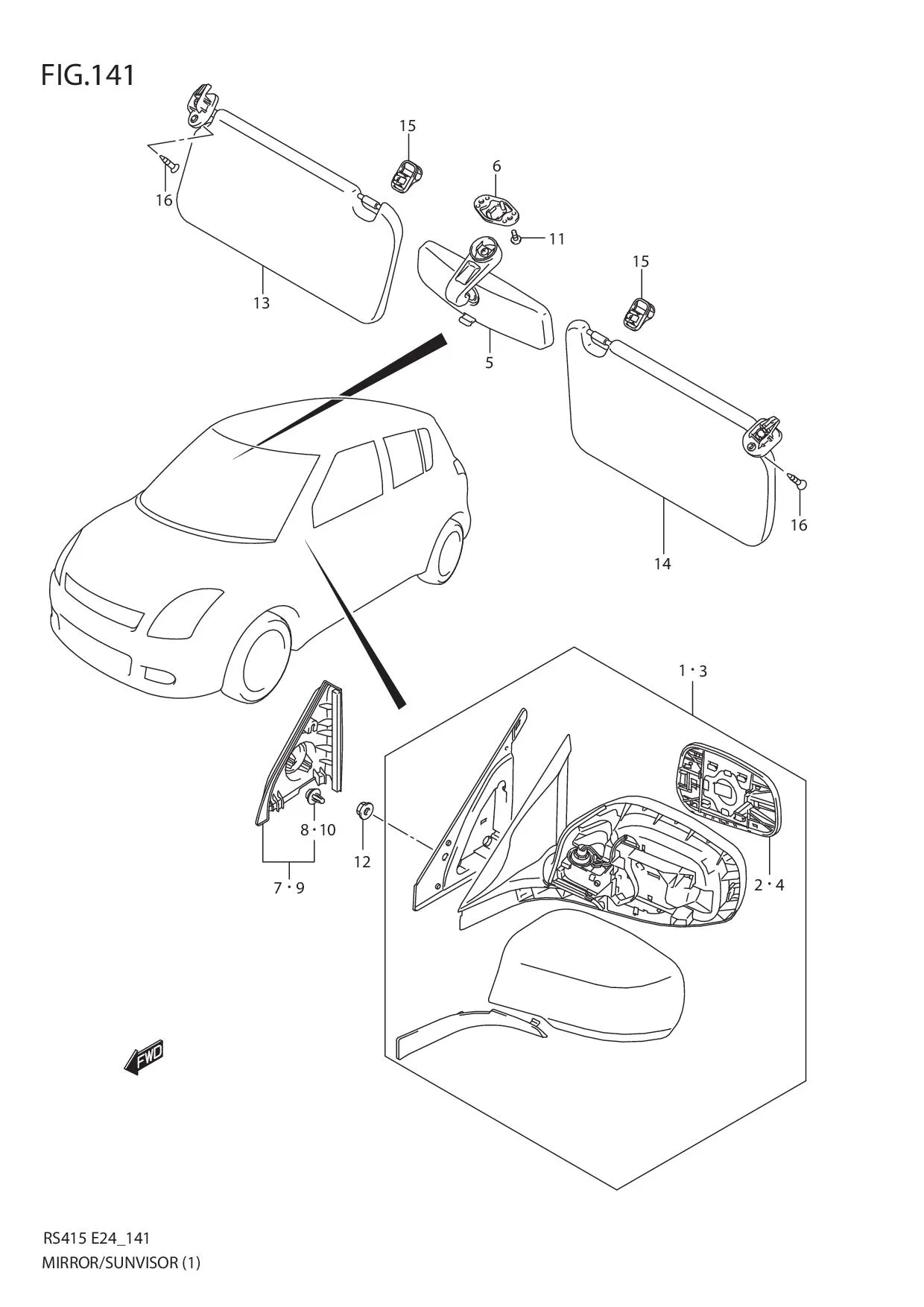

FIG.141 MIRROR/SUNVISOR (LHD)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-15	84701-63J00-Z2S	MIRROR ASSY, OUT RR VIEW RH (SILVER)	1	Rp2.568.000	E96
1-1	84701-63J40-ZCV	MIRROR ASSY, OUT RR VIEW RH (ORANGE)	1	-	E43
1-17	84701-63J00-5PK	MIRROR ASSY, OUT RR VIEW (BLACK)	1	-	E96
1-16	DISCONTINUE SUB: 84701-63J00-Z7T	MIRROR ASSY, OUT RR VIEW RH (WHITE)	1	-	E96
1-14	DISCONTINUE SUB: 84701-63J00-ZY4	MIRROR ASSY, OUT RR VIEW RH (GRAY)	1	-	E96
1-13	DISCONTINUE SUB: 84701-63J00-ZK1	MIRROR ASSY, OUT RR VIEW RH (LAVENDER)	1	-	E96
1-12	DISCONTINUE SUB: 84701-63J00-ZJ3	MIRROR ASSY, OUT RR VIEW RH (BLACK)	1	-	E96
1-11	DISCONTINUE SUB: 84701-63J00-ZDF	MIRROR ASSY, OUT RR VIEW RH (RED)	1	-	E96
1-10	DISCONTINUE SUB: 84701-63J00-ZCW	MIRROR ASSY, OUT RR VIEW RH (BLUE)	1	-	E96
1-8	84701-63J40-Z7T	MIRROR ASSY, OUT RR VIEW RH (WHITE)	1	-	E43
1-2	84701-63J40-ZCW	MIRROR ASSY, OUT RR VIEW RH (BLUE)	1	-	E43
1-3	84701-63J40-ZDF	MIRROR ASSY, OUT RR VIEW RH (RED)	1	-	E43
1-4	84701-63J40-ZJ3	MIRROR ASSY, OUT RR VIEW RH (BLACK)	1	-	E43
1-5	84701-63J40-ZK1	MIRROR ASSY, OUT RR VIEW RH (LAVENDER)	1	-	E43
1-6	84701-63J40-ZY4	MIRROR ASSY, OUT RR VIEW RH (GRAY)	1	-	E43
1-7	84701-63J40-Z2S	MIRROR ASSY, OUT RR VIEW RH (SILVER)	1	-	E43
1-9	DISCONTINUE SUB: 84701-63J00-ZCV	MIRROR ASSY, OUT RR VIEW RH (ORANGE)	1	-	E96
2-1	84730-63J20-000	•MIRROR, OUT REAR VIEW RH	1	-	E43
2-2	84730-63J00-000	•MIRROR, OUT REAR VIEW RH	1	Rp580.000	E96
3-9	DISCONTINUE SUB: 84702-63J00-ZCV	MIRROR ASSY, OUT RR VIEW LH (ORANGE)	1	-	E96
3-17	84702-63J00-5PK	MIRROR ASSY, OUT RR VIEW LH (BLACK)	1	-	E96
3-16	DISCONTINUE SUB: 84702-63J00-Z7T	MIRROR ASSY, OUT RR VIEW LH (WHITE)	1	-	E96
3-15	DISCONTINUE SUB: 84702-63J00-Z2S	MIRROR ASSY, OUT RR VIEW LH (SILVER)	1	-	E96
3-14	DISCONTINUE SUB: 84702-63J00-ZY4	MIRROR ASSY, OUT RR VIEW LH (GRAY)	1	-	E96
3-13	DISCONTINUE SUB: 84702-63J00-ZK1	MIRROR ASSY, OUT RR VIEW LH (LAVENDER)	1	-	E96
3-12	DISCONTINUE SUB: 84702-63J00-ZJ3	MIRROR ASSY, OUT RR VIEW LH (BLACK)	1	-	E96
3-11	DISCONTINUE SUB: 84702-63J00-ZDF	MIRROR ASSY, OUT RR VIEW LH (RED)	1	-	E96
3-10	DISCONTINUE SUB: 84702-63J00-ZCW	MIRROR ASSY, OUT RR VIEW LH (BLUE)	1	-	E96
3-7	84702-63J40-Z2S	MIRROR ASSY, OUT RR VIEW LH (SILVER)	1	-	E43
3-6	84702-63J40-ZY4	MIRROR ASSY, OUT RR VIEW LH (GRAY)	1	-	E43
3-5	84702-63J40-ZK1	MIRROR ASSY, OUT RR VIEW LH (LAVENDER)	1	-	E43
3-4	84702-63J40-ZJ3	MIRROR ASSY, OUT RR VIEW LH (BLACK)	1	-	E43
3-3	84702-63J40-ZDF	MIRROR ASSY, OUT RR VIEW LH (RED)	1	-	E43
3-2	84702-63J40-ZCW	MIRROR ASSY, OUT RR VIEW LH (BLUE)	1	-	E43
3-1	84702-63J40-ZCV	MIRROR ASSY, OUT RR VIEW LH (ORANGE)	1	-	E43
3-8	84702-63J40-Z7T	MIRROR ASSY, OUT RR VIEW LH (WHITE)	1	-	E43
4-1	84740-63J20-000	•MIRROR, OUT REAR VIEW LH	1	-	E43
4-2	84740-63J00-000	•MIRROR, OUT REAR VIEW LH	1	Rp619.500	E96
5	84770-63J00-000	MIRROR ASSY, INSIDE RR VIEW	1	Rp776.500
6	84781-63J00-000	BASE, INSIDE MIRROR	1	Rp157.500
7-2	84750-63J10-5PK	GARNISH, RH (BLACK)	1	Rp161.500	W/TWEETER
7-1	84750-63J00-5PK	GARNISH, RH (BLACK)	1	Rp188.000	N/TWEETER
8	09409-10327-000 SUB: 09409B10312N000	•CLIP	1	Rp5.000
9-1	84790-63J00-5PK	GARNISH, LH (BLACK)	1	Rp188.000	N/TWEETER
9-2	84790-63J10-5PK	GARNISH, LH (BLACK)	1	Rp161.500	W/TWEETER
10	09409-10327-000 SUB: 09409B10312N000	•CLIP	1	Rp5.000
11	02142-0616B-000 SUB: 02142B06163N000	SCREW	2	Rp5.500
12	08316-1006A-000 SUB: 08316-10063L000	NUT	6	Rp2.000
13-1	84801-63J61-J0T	SUNVISOR ASSY, RH (GRAY)	1	-	E43
13-2	DISCONTINUE SUB: 84801-63J20-J0T	SUNVISOR ASSY, RH (GRAY)	1	-	E96
14-1	84802-63J41-J0T	SUNVISOR ASSY, LH (GRAY)	1	-	E43
14-2	DISCONTINUE SUB: 84802-63J20-J0T	SUNVISOR ASSY, LH (GRAY)	1	-	E96
15	84851-77K00-6GS SUB: 84851-65D00-6GS	HOLDER, SUNVISOR (GRAY)	2	Rp47.500
16	03121-0516A-000 SUB: 03121-05163-000	SCREW	2	Rp11.500
