SWIFT RS415

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.105 FRONT HOOD PANEL FIG.106 FRONT FENDER FIG.107 FRONT BODY PANEL FIG.108 FLOOR PANEL FIG.109 SIDE BODY PANEL FIG.110 ROFF PANEL FIG.111 FRONT BUMPER FIG.112 REAR BUMPER FIG.113 INSTRUMENT PANEL (LHD)FIG.114 INSTRUMENT PANEL (RHD)FIG.115 VENTILATOR (LHD)FIG.116 VENTILATOR (RHD)FIG.117 HEATER (LHD)FIG.118 HEATER (RHD:MANUAL AIR CON)FIG.119 HEATER (RHD:AUTO AIR CON)FIG.120 HEATER CONTROL (LHD)FIG.121 HEATER CONTROL (RHD)FIG.122 CONSOLE BOX FIG.123 FLOOR CARPET (LHD)FIG.124 FLOOR CARPET (RHD)FIG.125 INTERIOR TRIM FIG.126 COVER/CAP FIG.127 FUEL LID OPENER FIG.128 ROOF SIDE PAD FIG.129 ROOF LINING/ROOF MOLDING FIG.130 SPLASH GUARD FIG.131 EMBLEM FIG.132 WINDSHIELD FIG.133 FRONT DOOR PANEL FIG.134 FRONT DOOR REGULATOR FIG.135 FRONT DOOR LOCK FIG.136 REAR DOOR PANEL FIG.137 REAR DOOR REGULATOR FIG.138 REAR DOOR LOCK FIG.139 BACK DOOR PANEL FIG.140 BACK DOOR LOCK FIG.141 MIRROR/SUNVISOR (LHD)FIG.142 MIRROR/SUNVISOR (RHD)FIG.143 TOOL FIG.144 FUEL TANK FIG.145 SEAT BELT FIG.146 FRONT SEAT (GA)FIG.147 FRONT SEAT (LHD:GL)FIG.148 FRONT SEAT (RHD:GL)FIG.149 RH REAR SEAT FIG.150 LH REAR SEAT FIG.151 PARCEL SHELF FIG.152 AIR CONDITIONER (LHD)FIG.153 AIR CONDITIONER (RHD)FIG.154 COMPRESSOR (LHD)FIG.155 COMPRESSOR (RHD)

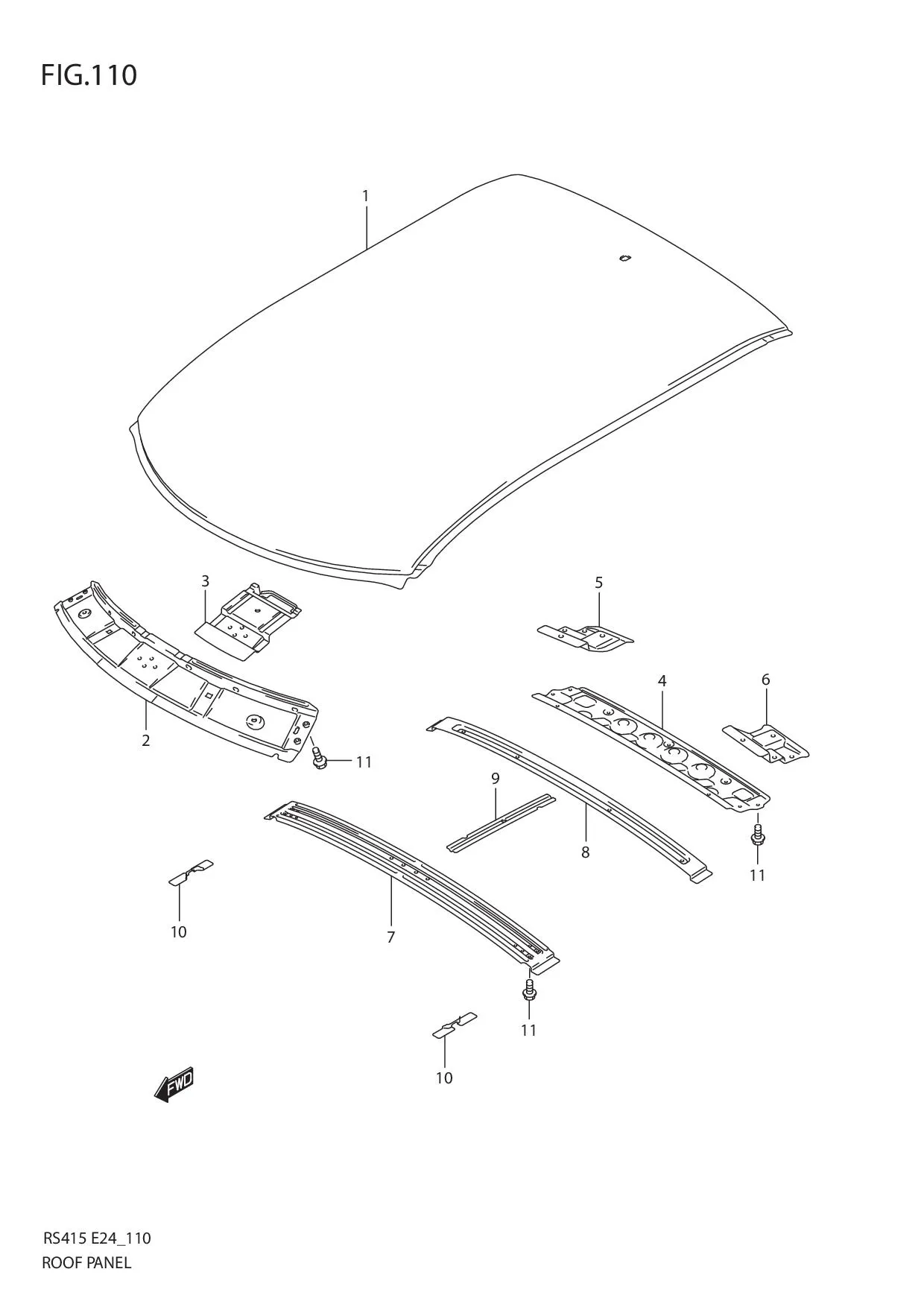

FIG.110 ROFF PANEL

FIG.110 ROFF PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 65111-63J00-000	PANEL, ROOF	1	-
2	DISCONTINUE SUB: 65121-63J10-000	RAIL, ROOF FRONT INNER	1	-
3	DISCONTINUE SUB: 65140-63J00-000	BRACKET, ROOM MIRROR	1	-
4	DISCONTINUE SUB: 65131-63J01-000	MEMBER, ROOF BACK INNER	1	-
5	DISCONTINUE SUB: 65132-63J10-000	REINF, BACK DOOR HINGE RH	1	-
6	DISCONTINUE SUB: 65133-63J00-000	REINF, BACK DOOR HINGE LH	1	-
7	DISCONTINUE SUB: 65151-63J00-000	MEMBER, ROOF PANEL CTR NO.1	1	-
8	DISCONTINUE SUB: 65161-63J00-000	MEMBER, ROOF PANEL CTR NO.2	1	-
9	DISCONTINUE SUB: 65162-63J00-000	MEMBER, ROOF PANEL CTR NO.3	1	-
10	65171-63J00-000	BRACKET, ROOF CARRIER	4	Rp114.500
11	DISCONTINUE SUB: 01550B06123N000	BOLT	12	-

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
