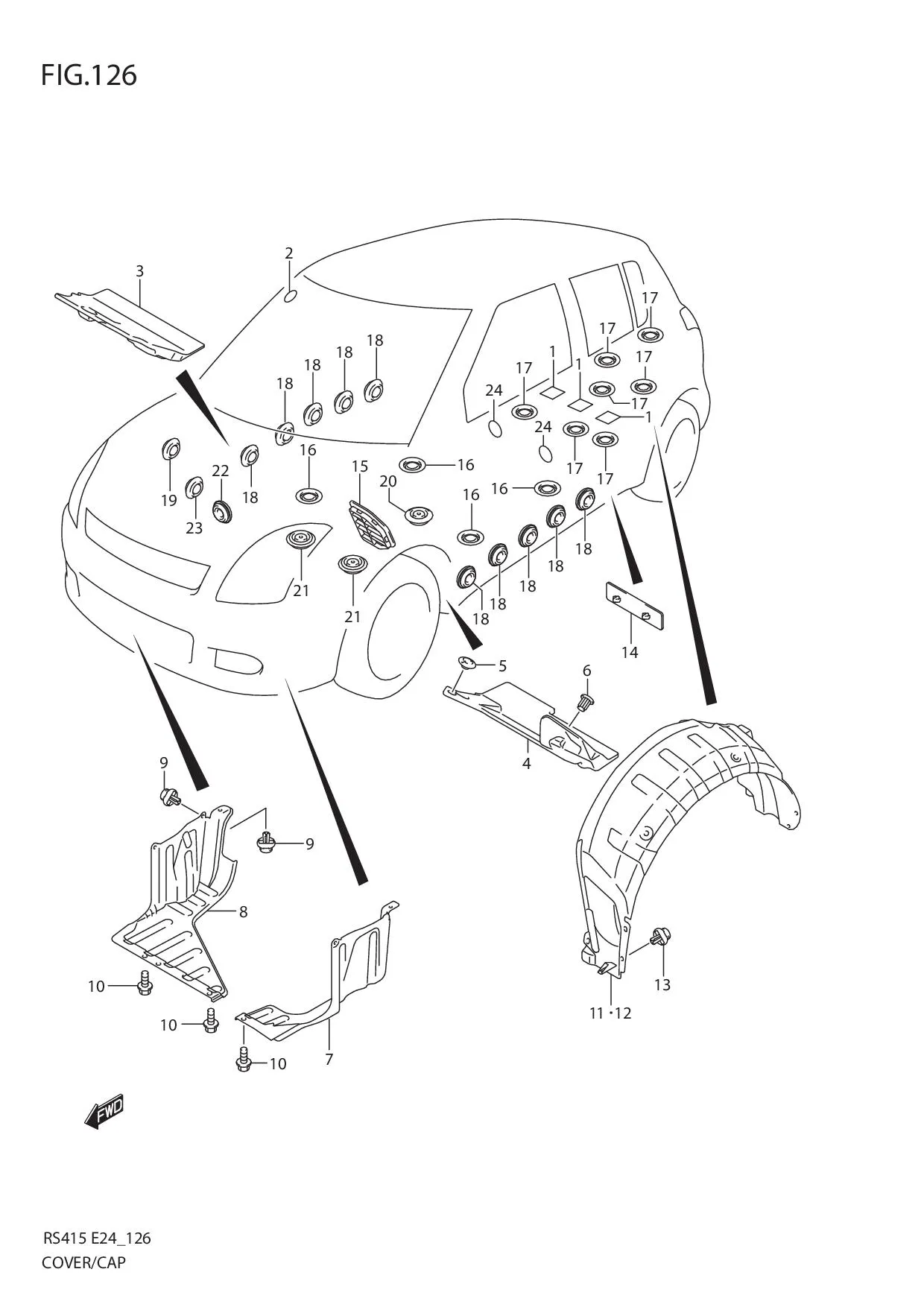

FIG.126 COVER/CAP

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 84761-50X50-000	FILM, X MBR CTR	3	-	CUT AS REQUIRED
2-1	DISCONTINUE SUB: 84761-50X50-000	FILM, FR PILLAR INNER	14	-	N/SIDE AIR BAG CUT AS REQUIRED
2-2	DISCONTINUE SUB: 84761-50X50-000	FILM, FR PILLAR INNER	8	-	W/SIDE AIR BAG CUT AS REQUIRED
3-1	75411-80J10-000	PAD, DASH LOWER RH	1	-	LHD
3-2	DISCONTINUE SUB: 75411-63J00-000	PAD, DASH LOWER RH	1	-	RHD
4-1	75412-62J00-000	PAD, DASH LOWER LH	1	-	LHD
4-2	75412-80J00-000	PAD, DASH LOWER LH	1	Rp573.000	RHD
5	09148-05037-000	CLIP, PAD	1	Rp18.000
6	75471-63J00-000	STOPPER, ACCEL PEDAL	1	Rp34.000
7	72392M63J10-000 SUB: 72392-63J00-000	COVER, ENGINE UNDER RH	1	Rp73.000
8	72391-63J10-000 SUB: 72391-63J00-000	COVER, ENGINE UNDER LH	1	Rp954.000
9	09409M07L01-000 SUB: 09409M07332-000	CLIP	4	Rp5.000
10	09122-76001-000	SCREW	3	Rp16.500
11	75511-63J00-000	LINING, RR FENDER RH	1	Rp1.243.000
12	75521-63J00-000	LINING, RR FENDER LH	1	Rp1.243.000
13	09409M07L01-000 SUB: 09409M07332-000	CLIP	26	Rp5.000
14	DISCONTINUE SUB: 75542-63J00-000	COVER, MAIN FLOOR END	2	-
15	DISCONTINUE SUB: 75420B63J00N000	CAP, DASH LOWER	2	-
16	75431-58J00-000 SUB: 75431-73H01-000	CAP, MAIN FLOOR DRAIN	4	Rp40.000
17	75431-58J00-000 SUB: 75431-73H01-000	CAP, RR FLOOR DRAIN	7	Rp40.000
18	09250M20031-000 SUB: 09250-20015-000	CAP, SIDE SILL FR (OD:28.5)	10	Rp4.500
19	09250-15012-000 SUB: 09250B15012N000	CAP, DASH SIDE (OD:23.5)	2	Rp5.000
20	09250-15L03-000 SUB: 09250B15015N000	CAP, FLOOR TUNNEL (OD:23.5)	1	Rp5.500
21	09250-25007-000	CAP, MAIN FLOOR FR (OD:31)	2	Rp10.500
22	09250M20031-000 SUB: 09250-20015-000	CAP, DASH PANEL (OD:28.5)	1	Rp4.500
23	09250M20031-000 SUB: 09250-20015-000	CAP, DASH SIDE FR	1	Rp4.500	LHD:RH RHD:LH
24	DISCONTINUE SUB: 84761-50X50-000	SEAL, RR FLOOR OPENER HOLE	2	-	LHD CUT AS REQUIRED
