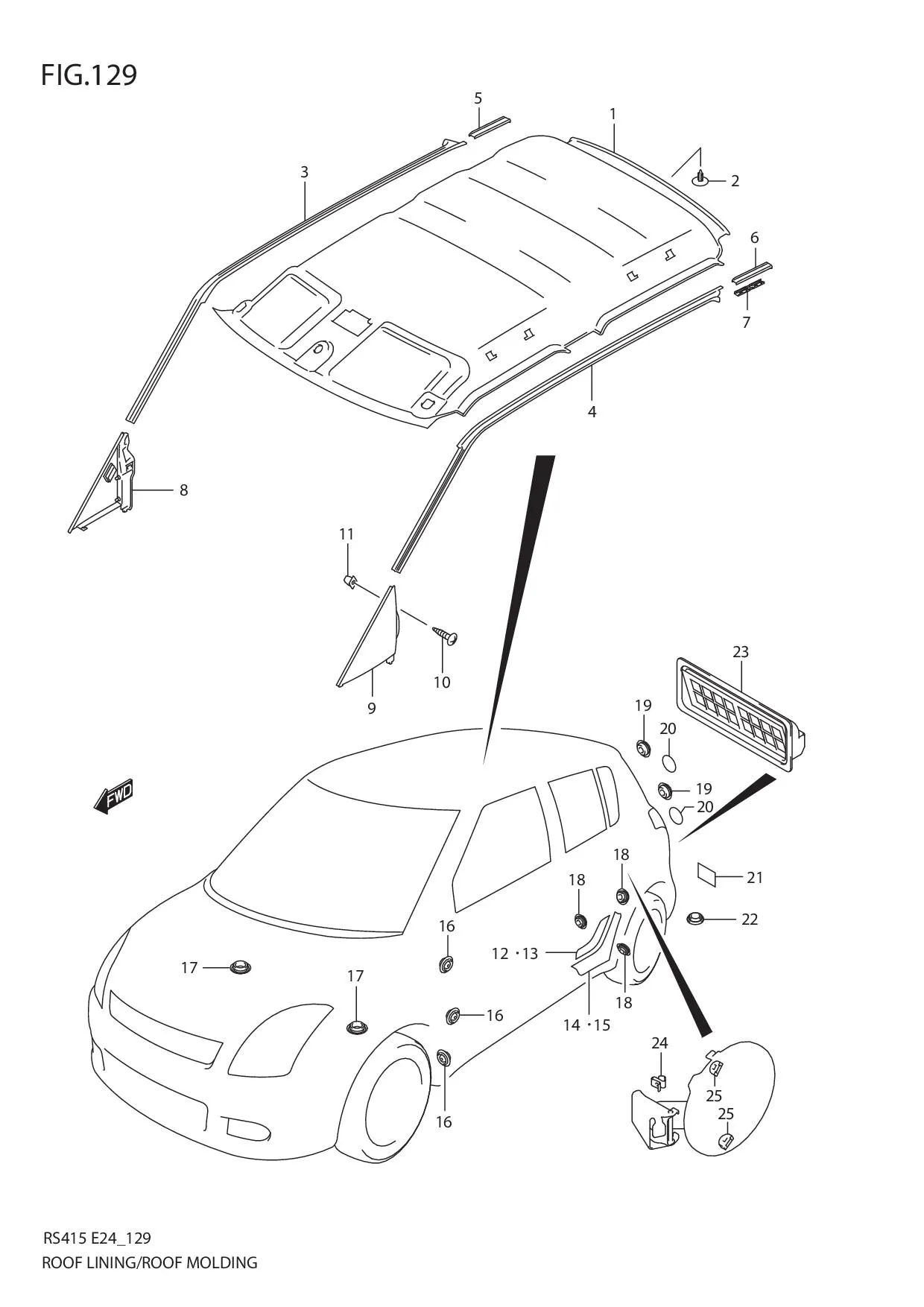

FIG.129 ROOF LINING/ROOF MOLDING

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 78110-63J00-6GS	LINING, ROOF (GRAY)	1	-
2	09409M06L02-6GS SUB: 09409M06326-6GS	CLIP (GRAY)	3	Rp5.500
3	84611-63J02-000 SUB: 84611-63J01-000	WEATHERSTRIP, ROOF SIDE RH	1	Rp1.170.000
4	84621-63J02-000 SUB: 84621-63J01-000	WEATHERSTRIP, ROOF SIDE LH	1	Rp1.170.000
5	78131-63J00-000	MOLDING, ROOF RH	1	Rp82.500
6	78141-63J00-000	MOLDING, ROOF LH	1	Rp82.500
7	78150-63J11-000	CLIP, ROOF MOLDING	2	Rp121.000
8	DISCONTINUE SUB: 77180-63J00-F08	GARNISH, FRONT PILLAR RH (BLACK)	1	-
9	77191-63J20-0CE SUB: 77190-63J00-F08	GARNISH, FRONT PILLAR LH (BLACK)	1	Rp435.000
10	03241-0512A-000 SUB: 03242-05123-000	SCREW	2	Rp3.500
11	09148-05044-000	NUT	2	Rp18.000
12	83935-63J00-000	PROTECTOR, RR DOOR OUTER LWR RH	1	Rp186.500
13	83936-63J00-000	PROTECTOR, RR DOOR OUTER LWR LH	1	Rp206.000
14	77131-63J10-000 SUB: 77131-63J00-000	PROTECTOR, SIDE SILL RR RH	1	Rp295.000
15	77132-63J10-000 SUB: 77132-63J00-000	PROTECTOR, SIDE SILL RR LH	1	Rp295.000
16	09250-17001-000 SUB: 09250B17001N000	CAP FR PILLAR OUTER (OD:25.5)	6	Rp6.500
17	72397-58J00-000	CAP, DASH LOWER	2	Rp39.000
18	09250-15012-000 SUB: 77111-63J00-000	CAP, RR WHL HOUSE (OD:40)	6	Rp5.000
19	09250-10016-000 SUB: 09250B10016N000	CAP, RR COMB OUTER (OD:16.2)	6	Rp14.000
20	DISCONTINUE SUB: 77191M76F00-000	FILM, BACK DOOR CUSHION	4	-
21	DISCONTINUE SUB: 84761-50X50-000	FILM, TAIL END MBR	2	-	CUT AS REQUIRED
22	09250-30002-000 SUB: 72999-67H00-000	CAP, TAIL END MBR (OD:40)	2	Rp5.500
23	77330M63J00-000	OUTLET, VENTILATOR	1	Rp118.000
24	77121-63J00-000	SPRING, FUEL LID	1	Rp49.500
25	77116M60B00-000 SUB: 77116-60B20-000	CUSHION, FUEL LID	2	Rp11.500
