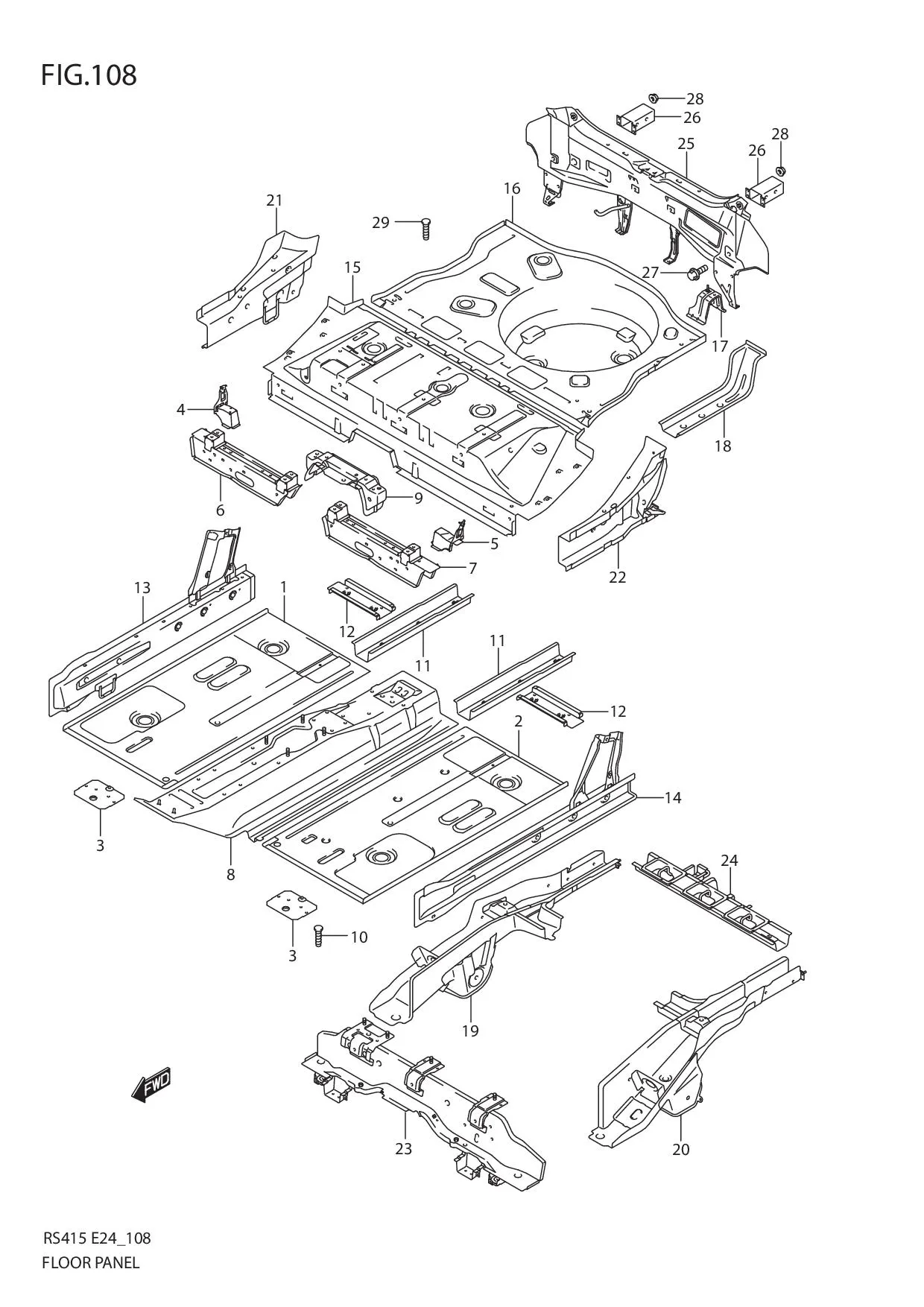

FIG.108 FLOOR PANEL

No	No. Part	Description	Qty	Price Per Pcs
	09250-25007-000	CAP(OD:25.0)	1	Rp10.500
1	DISCONTINUE SUB: 61111-63J00-000	PAN, MAIN FLOOR RH	1	-
2	DISCONTINUE SUB: 61161-63J00-000	PAN, MAIN FLOOR LH	1	-
3	DISCONTINUE SUB: 61112-63J00-000	REINF, MAIN FLOOR	2	-
4	DISCONTINUE SUB: 61120-63J00-000	BRACKET, FR SEAT RR OUT RH	1	-
5	DISCONTINUE SUB: 61170-63J00-000	BRACKET, FR SEAT RR OUT LH	1	-
6	DISCONTINUE SUB: 61130-63J00-000	CROSSMEMBER, FLR PAN UPR RH	1	-
7	DISCONTINUE SUB: 61180-63J00-000	CROSSMEMBER, FLR PAN UPR LH	1	-
8	DISCONTINUE SUB: 61210-63J00-000	TUNNEL, MAIN FLOOR	1	-
9	DISCONTINUE SUB: 61230-63J00-000	BRACKET, FR SEAT RR INSIDE	1	-
10	09119-05018-000	BOLT, STUD	7	Rp13.000
11	DISCONTINUE SUB: 61241-63J00-000	MEMBER, FLOOR SIDE REAR	2	-
12	DISCONTINUE SUB: 61242-63J00-000	CROSSMEMBER, FLR PAN LWR	2	-
13	DISCONTINUE SUB: 61310-63J00-000	PANEL, SIDE SILL INNER RH	1	-
14	DISCONTINUE SUB: 61320-63J00-000	PANEL, SIDE SILL INNER LH	1	-
15	DISCONTINUE SUB: 61511-57K00-000	PANEL,REAR FLOOR FR	1	-
16	DISCONTINUE SUB: 61512-63J00-000	PANEL, RR FLOOR RR	1	-
17	DISCONTINUE SUB: 61513-63J00-000	BRACKET, SPARE TIRE	1	-
18	DISCONTINUE SUB: 61550-63J00-000	HOOK, TOWING REAR	1	-
19	DISCONTINUE SUB: 62100-63J00-000	MEMBER, RR FLOOR SIDE RH	1	-
20	DISCONTINUE SUB: 62300-63J00-000	MEMBER, RR FLOOR SIDE LH	1	-
21	DISCONTINUE SUB: 62210-63J00-000	COMPARTMENT, RR FLR SIDE RH	1	-
22	DISCONTINUE SUB: 62410-63J00-000	COMPARTMENT, RR FLR SIDE LH	1	-
23	DISCONTINUE SUB: 62600-63J00-000	CROSSMEMBER, RR FLOOR FR	1	-
24	DISCONTINUE SUB: 62700-63J00-000	CROSSMEMBER, RR FLOOR CTR	1	-
25	65500-63J00-000	PANEL, BACK	1	-
26	DISCONTINUE SUB: 65561-63J00-000	ABSORBER, REAR BUMPER	2	-
27	DISCONTINUE SUB: 01550B06123N000	BOLT	4	-
28	08316-1006A-000 SUB: 08316-10063L000	NUT	4	Rp2.000
29	09119-05018-000	BOLT, STUD	4	Rp13.000
