SWIFT RS415

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.105 FRONT HOOD PANEL FIG.106 FRONT FENDER FIG.107 FRONT BODY PANEL FIG.108 FLOOR PANEL FIG.109 SIDE BODY PANEL FIG.110 ROFF PANEL FIG.111 FRONT BUMPER FIG.112 REAR BUMPER FIG.113 INSTRUMENT PANEL (LHD)FIG.114 INSTRUMENT PANEL (RHD)FIG.115 VENTILATOR (LHD)FIG.116 VENTILATOR (RHD)FIG.117 HEATER (LHD)FIG.118 HEATER (RHD:MANUAL AIR CON)FIG.119 HEATER (RHD:AUTO AIR CON)FIG.120 HEATER CONTROL (LHD)FIG.121 HEATER CONTROL (RHD)FIG.122 CONSOLE BOX FIG.123 FLOOR CARPET (LHD)FIG.124 FLOOR CARPET (RHD)FIG.125 INTERIOR TRIM FIG.126 COVER/CAP FIG.127 FUEL LID OPENER FIG.128 ROOF SIDE PAD FIG.129 ROOF LINING/ROOF MOLDING FIG.130 SPLASH GUARD FIG.131 EMBLEM FIG.132 WINDSHIELD FIG.133 FRONT DOOR PANEL FIG.134 FRONT DOOR REGULATOR FIG.135 FRONT DOOR LOCK FIG.136 REAR DOOR PANEL FIG.137 REAR DOOR REGULATOR FIG.138 REAR DOOR LOCK FIG.139 BACK DOOR PANEL FIG.140 BACK DOOR LOCK FIG.141 MIRROR/SUNVISOR (LHD)FIG.142 MIRROR/SUNVISOR (RHD)FIG.143 TOOL FIG.144 FUEL TANK FIG.145 SEAT BELT FIG.146 FRONT SEAT (GA)FIG.147 FRONT SEAT (LHD:GL)FIG.148 FRONT SEAT (RHD:GL)FIG.149 RH REAR SEAT FIG.150 LH REAR SEAT FIG.151 PARCEL SHELF FIG.152 AIR CONDITIONER (LHD)FIG.153 AIR CONDITIONER (RHD)FIG.154 COMPRESSOR (LHD)FIG.155 COMPRESSOR (RHD)

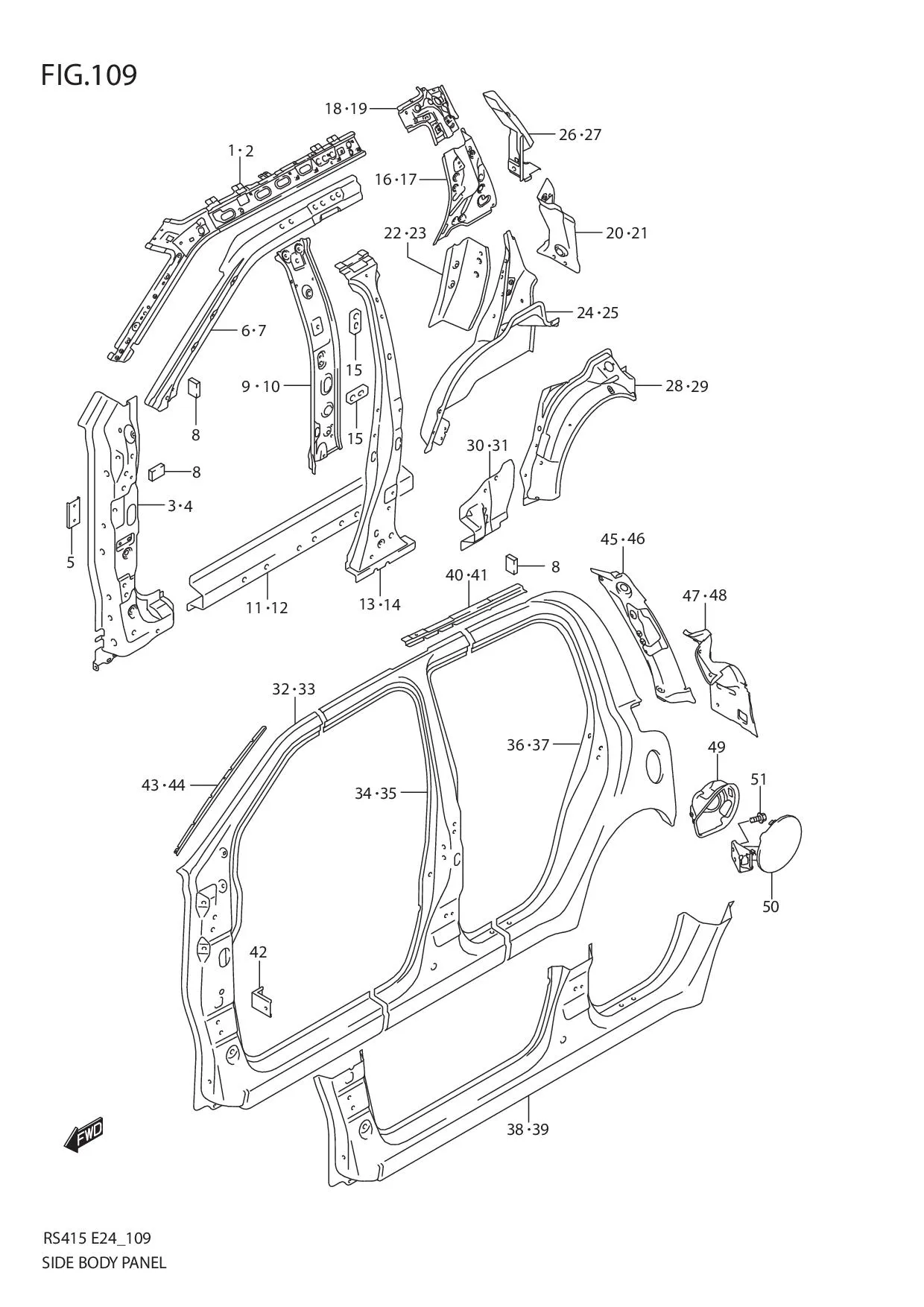

FIG.109 SIDE BODY PANEL

No	No. Part	Description	Qty	Price Per Pcs
1	DISCONTINUE SUB: 63120-63J00-000	RAIL, ROOF SIDE INNER RH	1	-
2	DISCONTINUE SUB: 63520-63J00-000	RAIL, ROOF SIDE INNER LH	1	-
3	DISCONTINUE SUB: 63140-63J00-000	REINF, FR DOOR HINGE RH	1	-
4	DISCONTINUE SUB: 63540-63J00-000	REINF, FR DOOR HINGE LH	1	-
5	DISCONTINUE SUB: 63145-58J00-000	RETAINER, DOOR HINGE	4	-
6	DISCONTINUE SUB: 63150-63J00-000	REINF, FR PILLAR UPPER RH	1	-
7	DISCONTINUE SUB: 63550-63J00-000	REINF, FR PILLAR UPPER LH	1	-
8	DISCONTINUE SUB: 75242-82300-000	PAD	6	-
9	DISCONTINUE SUB: 63211-63J00-000	PANEL, CTR PILLAR INNER RH	1	-
10	DISCONTINUE SUB: 63611-63J00-000	PANEL, CTR PILLAR INNER LH	1	-
11	DISCONTINUE SUB: 63220-63J00-000	STRENGTH, SIDE SILL RH	1	-
12	DISCONTINUE SUB: 63620-63J00-000	STRENGTH, SIDE SILL LH	1	-
13	DISCONTINUE SUB: 63240-63J12-000	REINF, RR DOOR HINGE RH	1	-
14	DISCONTINUE SUB: 63640-63J11-000	REINF, RR DOOR HINGE LH	1	-
15	63243-72J00-000 SUB: 63243B72J00N000	RETAINER, RR DOOR HINGE	4	Rp9.500
16	DISCONTINUE SUB: 63311-63J10-000	PANEL, QTR INNER RH	1	-
17	DISCONTINUE SUB: 63711-63J00-000	PANEL, QTR INNER LH	1	-
18	DISCONTINUE SUB: 63312-63J10-000	EXTENSION, QTR INNER RH	1	-
19	DISCONTINUE SUB: 63712-63J00-000	EXTENSION, QTR INNER LH	1	-
20	DISCONTINUE SUB: 63313-63J00-000	PANEL, RR LAMP HOUSE INR RH	1	-
21	DISCONTINUE SUB: 63713-63J00-000	PANEL, RR LAMP HOUSE INR LH	1	-
22	DISCONTINUE SUB: 63320-63J00-000	REINF, RR DOOR STRIKER RH	1	-
23	DISCONTINUE SUB: 63720-63J00-000	REINF, RR DOOR STRIKER LH	1	-
24	DISCONTINUE SUB: 63410-63J10-000	PANEL, WHEEL HOUSE INR RH	1	-
25	DISCONTINUE SUB: 63810-63J00-000	PANEL, WHEEL HOUSE INR LH	1	-
26	DISCONTINUE SUB: 63440-63J00-000	BRACKET, SEAT BELT RETR RH	1	-
27	DISCONTINUE SUB: 63840-63J00-000	BRACKET, SEAT BELT RETR LH	1	-
28	DISCONTINUE SUB: 63481-63J00-000	PANEL, WHEEL HOUSE OTR RH	1	-
29	DISCONTINUE SUB: 63881-63J00-000	PANEL, WHEEL HOUSE OTR LH	1	-
30	DISCONTINUE SUB: 63482-63J00-000	EXTENSION, WHL HOUSE LWR RH	1	-
31	DISCONTINUE SUB: 63882-63J00-000	EXTENSION, WHL HOUSE LWR LH	1	-
32	DISCONTINUE SUB: 64111-63J20-P11	PANEL, A-PILLAR RH	1	-
33	DISCONTINUE SUB: 64511-63J20-P11	PANEL, A-PILLAR LH	1	-
34	DISCONTINUE SUB: 64111-63J20-P21	PANEL, B-PILLAR RH	1	-
35	DISCONTINUE SUB: 64511-63J20-P21	PANEL, B-PILLAR LH	1	-
36	64111-63J20-P31	PANEL, QUARTER RH	1	Rp4.485.000
37	DISCONTINUE SUB: 64511-63J20-P31	PANEL, QUARTER LH	1	-
38	DISCONTINUE SUB: 64111-63J20-P41	PANEL, SIDE SILL RH	1	-
39	DISCONTINUE SUB: 64511-63J20-P41	PANEL, SIDE SILL LH	1	-
40	DISCONTINUE SUB: 64112-63J00-000	EXTENSION, SIDE BODY UPR RH	1	-
41	DISCONTINUE SUB: 64512-63J00-000	EXTENSION, SIDE BODY UPR LH	1	-
42	64113M63J00-000	BRACKET, FR FENDER	2	Rp7.500
43	DISCONTINUE SUB: 64114-63J00-000	BRACKET, RAIL SIDE RH	1	-
44	DISCONTINUE SUB: 64514-63J00-000	BRACKET, RAIL SIDE LH	1	-
45	DISCONTINUE SUB: 64120-63J00-000	EXTENSION, SIDE BODY OTR RH	1	-
46	DISCONTINUE SUB: 64520-63J00-000	EXTENSION, SIDE BODY OTR LH	1	-
47	DISCONTINUE SUB: 64130-63J00-000	PANEL, RR LAMP HOUSE OTR RH	1	-
48	DISCONTINUE SUB: 64530-63J00-000	PANEL, RR LAMP HOUSE OTR LH	1	-
49	DISCONTINUE SUB: 64571-63J00-000	BOX, FUEL FILLER	1	-
50	64850-63J11-000 SUB: 64850-63J00-000	DOOR, FUEL FILLER	1	Rp628.500
51	DISCONTINUE SUB: 01550B06123N000	BOLT	2	-
