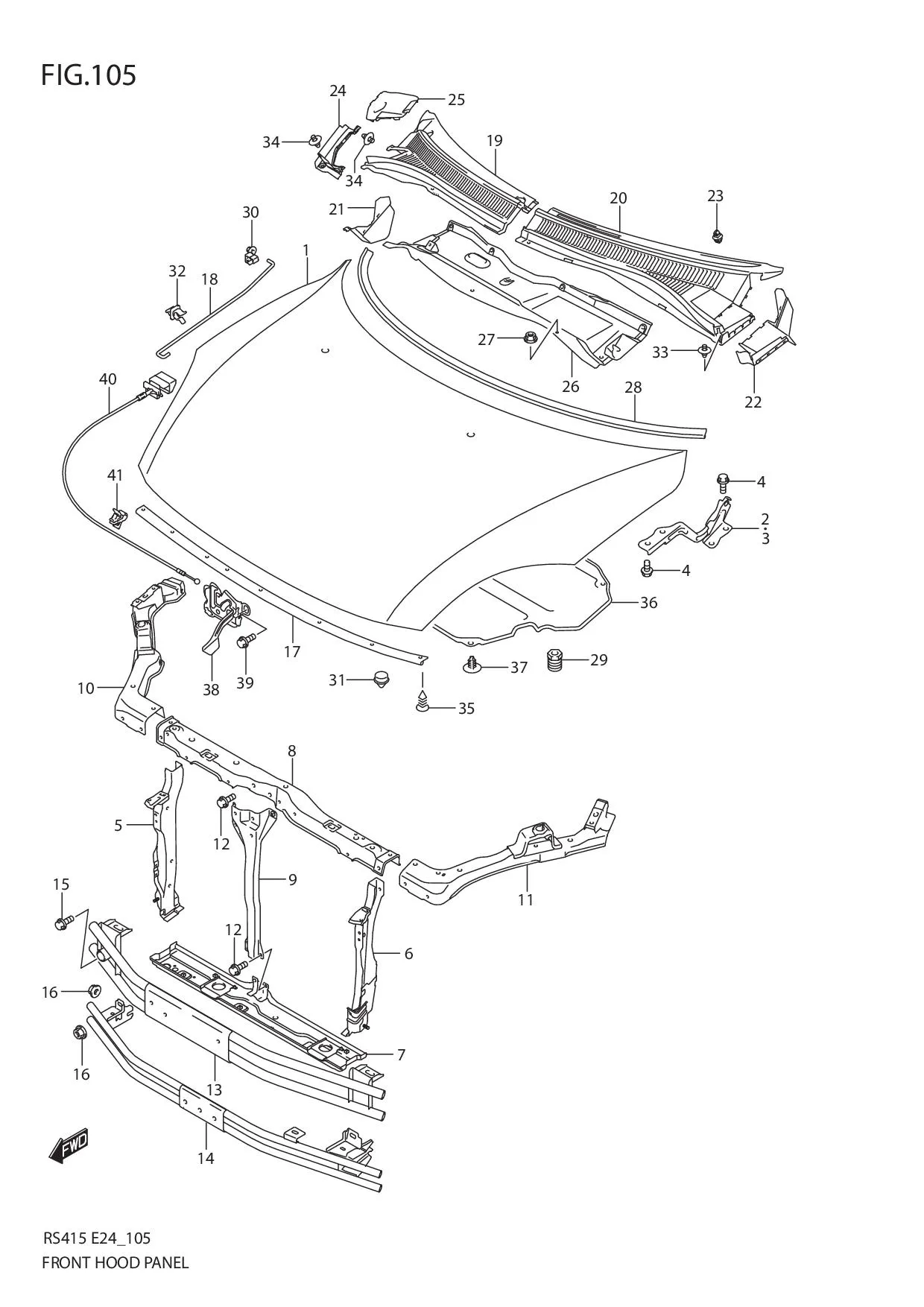

FIG.105 FRONT HOOD PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	57300-63J00-000	PANEL ASSY, FRONT HOOD	1	Rp5.175.000
2	57410-63J10-000 SUB: 57410-63J00-000	HINGE, FRONT HOOD RH	1	Rp384.000
3	57420-63J00-000	HINGE, FRONT HOOD LH	1	Rp363.500
4	DISCONTINUE SUB: 01550B06123N000	BOLT	8	-
5	58110-63J10-000 SUB: 58110-63J00-000	BRACE, LAMP SUPPORT RH	1	Rp933.000
6	58120-57K00-000 SUB: 58120-63J00-000	BRACE, LAMP SUPPORT LH	1	Rp907.500
7	58210-63J00-000	MEMBER, RDTR SUPPORT LOWER	1	Rp1.074.500
8	58230-63J00-000	MEMBER, HOOD LOCK	1	Rp798.000
9	58241-63J00-000	BRACE, HOOD LOCK	1	Rp394.500
10	58250-63J00-000	MEMBER, LAMP SUPPORT RH	1	Rp684.500
11	58260-63J00-000	MEMBER, LAMP SUPPORT LH	1	Rp684.500
12	DISCONTINUE SUB: 01550B06123N000	BOLT	8	-
13	58270-63J10-000 SUB: 58270-63J00-000	MEMBER, FR BUMPER UPPER	1	Rp2.871.000
14	58280-62J00-000 SUB: 58280-63J00-000	MEMBER, FR BUMPER LOWER	1	Rp1.620.500
15	01551-0820A-000 SUB: 01551-08203-000	BOLT	5	Rp17.500
16	08316-1008A-000 SUB: 08316B10083N000	NUT	4	Rp3.500
17	72361-63J00-000	SEAL, HOOD FRONT	1	Rp243.500
18	72311M63J00-000	STAY, FR HOOD	1	Rp13.000
19-1	72330-62J01-5PK	GARNISH, COWL TOP RH (BLACK)	1	-	LHD
19-2	72330-63J01-5PK SUB: 72330-63J00-5PK	GARNISH, COWL TOP RH (BLACK)	1	Rp857.500	RHD
20-1	72340-62J01-5PK	GARNISH, COWL TOP LH (BLACK)	1	-	LHD
20-2	72340-63J01-5PK SUB: 72340-63J00-5PK	GARNISH, COWL TOP LH (BLACK)	1	Rp909.500	RHD
21	DISCONTINUE SUB: 72333-63J00-000	•COVER, RH	1	-
22	72343-63J00-000	•COVER, LH	1	Rp224.000
23	77553-65D00-000	•CLIP	5	Rp26.500	RH:2PCS,LH:3PCS
24	72370-63J01-5PK SUB: 72370-63J00-5PK	GARNISH, COWL TOP SIDE (BLACK)	1	Rp655.000
25	72332-63J01-5PK SUB: 72332-63J00-5PK	LID, COWL TOP GARNISH (BLACK)	1	Rp218.000
26-1	72380-62J00-000	PANEL, FR COWL UPPER	1	-	LHD
26-2	DISCONTINUE SUB: 72380-63J00-000	PANEL, FR COWL UPPER	1	-	RHD
27	08316-1006A-000 SUB: 08316-10063L000	NUT	6	Rp2.000
28	72362-54L00-000 SUB: 72362B63J00N000	SEAL, HOOD REAR	1	Rp305.500
29	72372-63J00-000 SUB: 72372B82000N000	CUSHION	2	Rp8.000
30	09209M09L02-000 SUB: 09209M09007-000	LINKAGE	1	Rp4.500
31	09321-10023-000 SUB: 09321B10023N000	CUSHION	2	Rp6.000
32	09403-07307-5PK	HOLDER, STAY (BLACK)	1	Rp18.500
33	09409M07L02-5PK SUB: 09409M07308-5PK	CLIP (BLACK)	5	Rp7.500
34	09409M07L02-5PK SUB: 09409M07308-5PK	CLIP (BLACK)	2	Rp7.500
35	09409-05308-5PK	CLIP (BLACK)	8	Rp17.500
36	72440-63J00-000	SILENCER, FR HOOD	1	Rp668.000
37	09409-06325-000	CLIP	9	Rp17.000
38-1	82110-62J10-000	LATCH, HOOD	1	-	LHD
38-2	82110-63J01-000 SUB: 82110-63J00-000	LATCH, HOOD	1	Rp526.000	RHD
39	02162-0616A-000 SUB: 02162-06163L000	SCREW	3	Rp3.000
40-1	82160-62J10-000	CABLE, HOOD LATCH RELEASE	1	-	LHD
40-2	82160-63J01-000 SUB: 82160-63J00-000	CABLE, HOOD LATCH RELEASE	1	Rp339.000	RHD
41	09403M04401-000	CLAMP	3	Rp4.500
