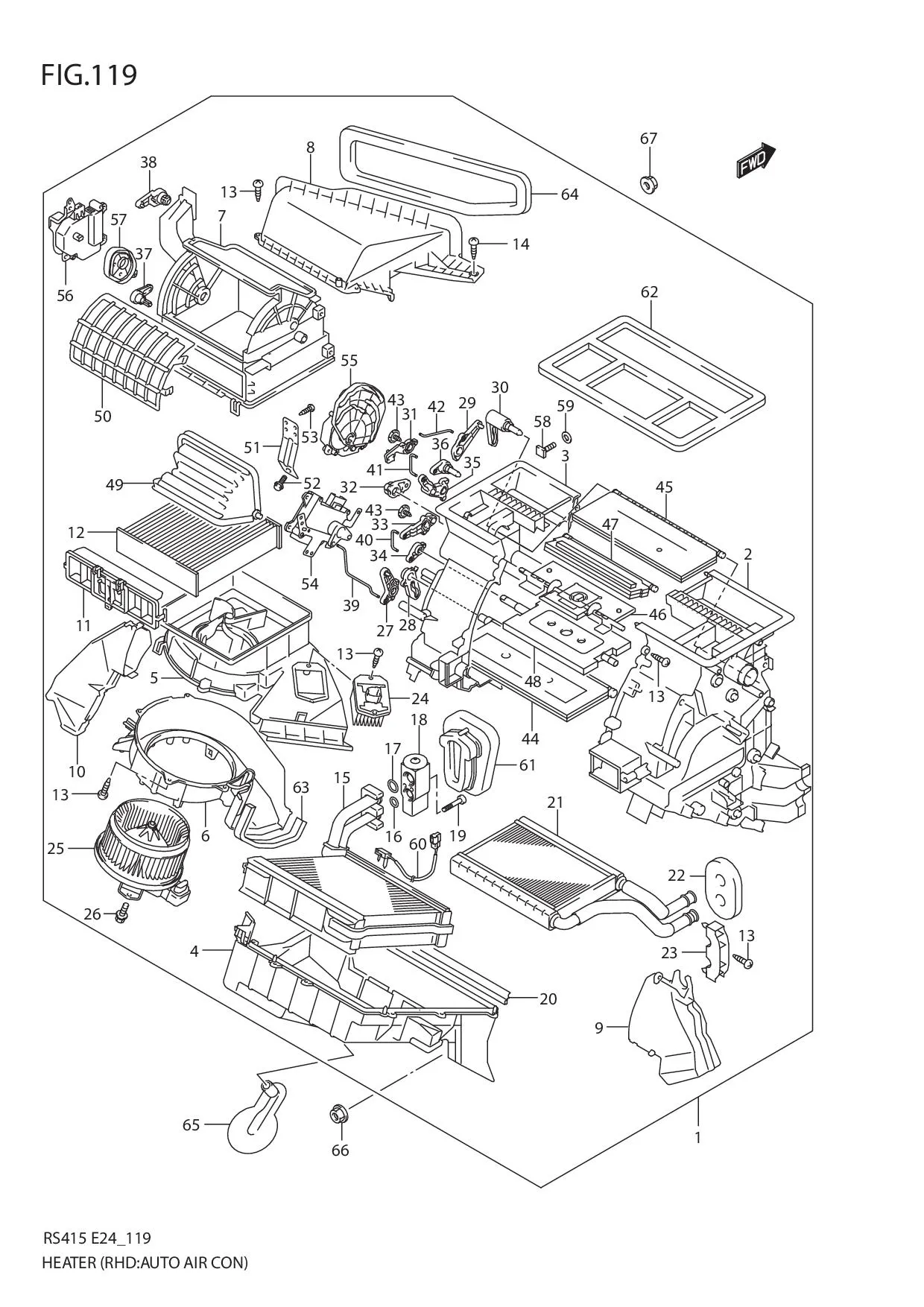

FIG.119 HEATER (RHD:AUTO AIR CON)

No	No. Part	Description	Qty	Price Per Pcs
1	74100-63J20-000	HEATER UNIT	1	-
2	DISCONTINUE SUB: 74111-63J20-000	•CASE, HEATER RH	1	-
3	DISCONTINUE SUB: 74112-63J20-000	•CASE, HEATER LH	1	-
4	74113-63J00-000	•CASE, LOWER	1	Rp625.500
5	74212-63J00-000	•CASE, BLOWER UPPER	1	Rp868.000
6	DISCONTINUE SUB: 74211-63J00-000	•CASE, BLOWER LOWER	1	-
7	74213-63J00-000	•CASE, BLOWER	1	Rp848.000
8	DISCONTINUE SUB: 74214-63J00-000	•CASE, BLOWER AIR INTAKE	1	-
9	74114-63J00-000 SUB: 74114B63J00N000	•DUCT, DRIVER SIDE	1	Rp43.500
10	74115-63J00-000 SUB: 74115B63J00N000	•DUCT, ASSISTANT SIDE	1	Rp61.000
11	95861-63J01-000 SUB: 95861-63J00-000	•HOLDER, FILTER	1	Rp155.500
12	95860-58J01-000 SUB: 95860-58J00-000	•FILTER	1	Rp313.000
13	03112-0416A-000 SUB: 03112-04163-000	•SCREW	34	Rp23.500
14	03112-06163-000	•SCREW	1	-
15	95411-63J00-000 SUB: 95411B63J00N000	•EVAPORATOR	1	Rp1.049.000
16	95895-50G00-000 SUB: 95895B50G00N000	••O RING (D:2.4,ID:10.8)	1	Rp12.500
17	95896-50G00-000 SUB: 95896B50G00N000	••O RING (D:2.4,ID:13.4)	1	Rp19.000
18	95431-63J00-000 SUB: 95431B63J00N000	•VALVE, EXPANSION	1	Rp357.500
19	74134-58J00-000 SUB: 74134B58J00N000	•BOLT, EXPANSION	2	Rp14.000
20	95461-58J00-000 SUB: 95461B58J00N000	•PACKING, EVAPORATOR LOWER	1	Rp23.000
21	74120-63J00-000	•CORE, HEATER	1	Rp4.332.000
22	74118-63J01-000 SUB: 74118-63J00-000	•PACKING	1	Rp74.000
23	74131-63J00-000	•BRACKET, HEATER PIPE	1	Rp112.000
24	DISCONTINUE SUB: 95626-63J20-000	•RESISTOR	1	-
25	74150-63J00-000 SUB: 74150B63J00N000	•MOTOR, BLOWER	1	Rp455.500
26	74135-82000-000 SUB: 74135B82000N000	•SCREW, MOTOR	3	Rp19.500
27	DISCONTINUE SUB: 74181-63J20-000	•LEVER, AIR MIXTURE HOT	1	-
28	DISCONTINUE SUB: 74182-63J20-000	•LEVER, AIR MIXTURE HOT	1	-
29	DISCONTINUE SUB: 74183-63J20-000	•LEVER, AIR MIXTURE COOL MIDDLE	1	-
30	DISCONTINUE SUB: 74184-63J20-000	•LEVER, AIR MIXTURE COOL DOOR	1	-
31	DISCONTINUE SUB: 74191-63J20-000	•LEVER, FACE MIDDLE	1	-
32	DISCONTINUE SUB: 74192-63J20-000	•LEVER, FACE DOOR	1	-
33	DISCONTINUE SUB: 74193-63J20-000	•LEVER, FOOT MIDDLE	1	-
34	DISCONTINUE SUB: 74194-63J20-000	•LEVER, FOOT DOOR	1	-
35	DISCONTINUE SUB: 74195-63J20-000	•LEVER, DEFROSTER MIDDLE	1	-
36	DISCONTINUE SUB: 74196-63J20-000	•LEVER, DEFROSTER DOOR	1	-
37	74282-63J00-000	•LEVER, FRESH AIR MIDDLE	1	Rp113.500
38	74281-63J00-000	•LEVER, FRESH AIR DOOR	1	Rp113.500
39	DISCONTINUE SUB: 74185-63J20-000	•ROD, AIR MIXTURE	1	-
40	DISCONTINUE SUB: 74197-63J00-000	•ROD, FOOT	1	-
41	DISCONTINUE SUB: 74198-63J00-000	•ROD, DEFROSTER	1	-
42	DISCONTINUE SUB: 74186-63J20-000	•ROD, AIR MIXTURE COOL	1	-
43	74183-82005-000 SUB: 74183B82005N000	•SCREW, LINK	5	Rp19.000
44	DISCONTINUE SUB: 74171-63J00-000	•DOOR, AIR MIXTURE HOT	1	-
45	DISCONTINUE SUB: 74175-63J00-000	•DOOR, AIR MIXTURE COOL	1	-
46	DISCONTINUE SUB: 74172-63J00-000	•DOOR, FACE	1	-
47	DISCONTINUE SUB: 74173-63J00-000	•DOOR, DEFROSTER	1	-
48	DISCONTINUE SUB: 74174-63J20-000	•DOOR, FOOT	1	-
49	74173-72J00-000 SUB: 74270-63J00-000	•DOOR, FRESH AIR	1	Rp356.000
50	DISCONTINUE SUB: 74215-63J00-000	•PLATE	1	-
51	DISCONTINUE SUB: 95675-63J00-000	•BRACKET	1	-
52	01560-0620A-000 SUB: 01560-06203-000	•BOLT	2	Rp2.500
53	03112-04123-000	•SCREW	4	-
54	DISCONTINUE SUB: 95651-63J00-000	•ACTUATOR, TEMPARETER	1	-
55	DISCONTINUE SUB: 95653-63J00-000	•ACTUATOR, MODE	1	-
56	DISCONTINUE SUB: 95652-63J00-000	•ACTUATOR, FRESH AIR	1	-
57	DISCONTINUE SUB: 74283-63J00-000	•PLATE, FRESH AIR	1	-
58	74115-65D00-000 SUB: 74115B65D00N000	•BOLT	5	Rp106.500
59	DISCONTINUE SUB: 74119-78F00-000	•WASHER, RUBBER	5	-
60	95541-63J20-000	•THERMISTOR	1	-
61	95465-58J00-000	•COVER	1	Rp119.000
62	74116-63J00-000 SUB: 74116B63J00N000	•PACKING, FACE	1	Rp16.000
63	DISCONTINUE SUB: 74117B63J00N000	•PACKING	1	-
64	74119-63J00-000 SUB: 74119B63J00N000	•PACKING, AIR INTAKE	1	Rp19.500
65	DISCONTINUE SUB: 95481-63J00-000	HOSE, DRAIN	1	-
66	09159-06081-000	NUT	1	Rp17.000
67	08361-25063-000	NUT	5	-
