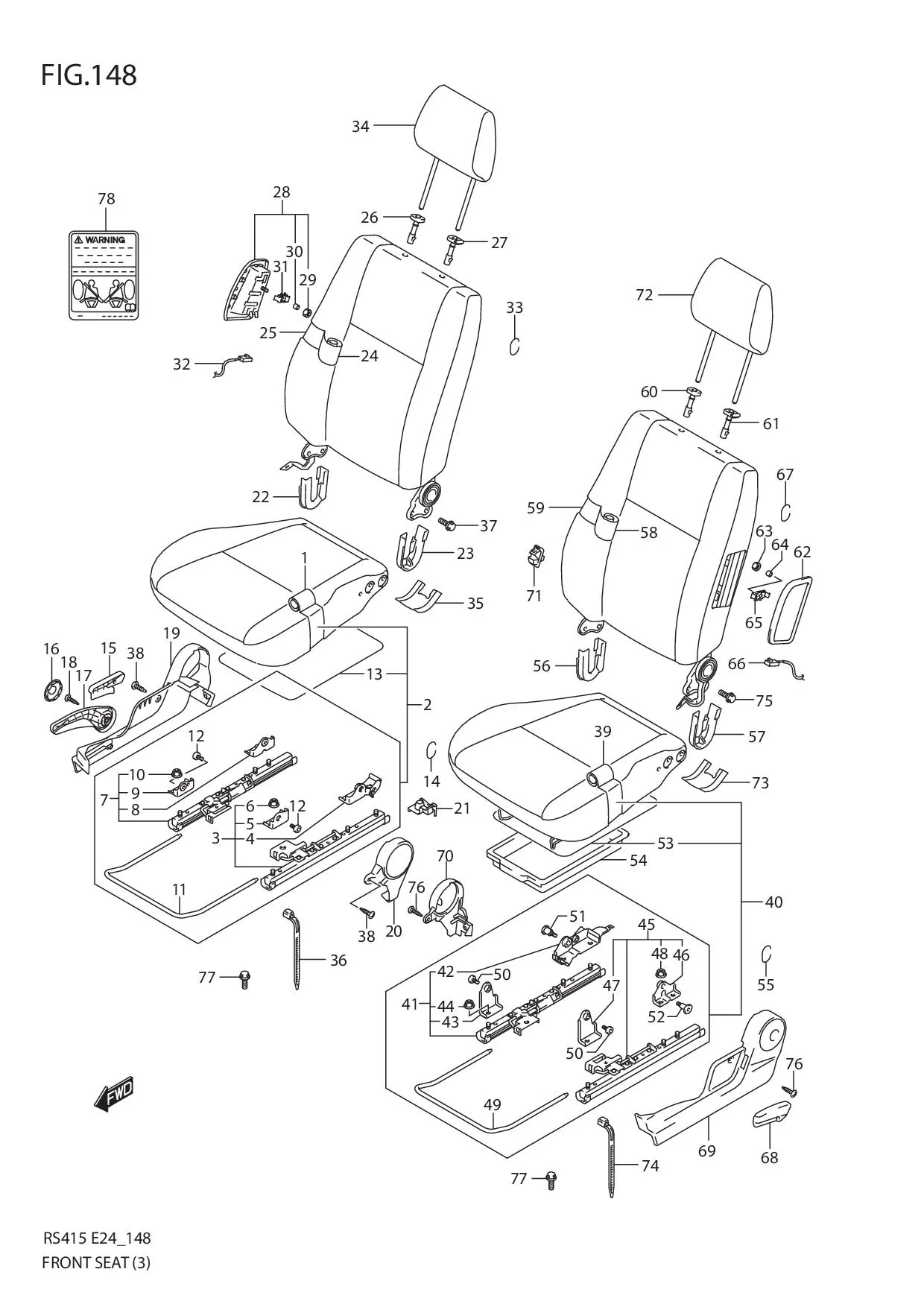

FIG.148 FRONT SEAT (RHD:GL)

FIG.148 FRONT SEAT (RHD:GL)
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 85180-63J20-AWY		 TRIM, FR CUSHION RH 1 -
2 DISCONTINUE
SUB: 85105-63J20-000		 CUSHION SUB ASSY, FR RH 1 -
3 DISCONTINUE
SUB: 86601-63J20-000		 •ADJUSTER SUB ASSY, INSIDE 1 -
4 DISCONTINUE
SUB: 86712-63J20-000		 ••RISER 1 -
5 DISCONTINUE
SUB: 86721-63J20-000		 ••RISER 1 -
6 08316-1010A-000
SUB: 08316-10103-000		 ••NUT 3 Rp3.500
7 DISCONTINUE
SUB: 86603-63J20-000		 •ADJUSTER SUB ASSY, OUTSIDE 1 -
8 DISCONTINUE
SUB: 86641-63J20-000		 ••RISER 1 -
9 DISCONTINUE
SUB: 86710-63J20-000		 ••RISER 1 -
10 08316-1010A-000
SUB: 08316-10103-000		 ••NUT 3 Rp3.500
11 DISCONTINUE
SUB: 86691-63J00-000		 •HANDLE, ADJUSTER 1 -
12 DISCONTINUE
SUB: 86717-63J30-000		 •BOLT 4 -
13 DISCONTINUE
SUB: 85169-63J00-000		 •SILENCER 1 -
14 09387-19001-000
SUB: 09387B19001N000		 RING, TRIM 11 Rp9.000
15 85211-63J00-P4Z KNOB, RECLINING RH (GRAY) 1 Rp80.500
16 DISCONTINUE
SUB: 85214-63J20-P4Z		 CAP, LIFTER LEVER (GRAY) 1 - W/LIFTER
17 DISCONTINUE
SUB: 85213-63J20-P4Z		 LEVER, SEAT LIFTER (GRAY) 1 - W/LIFTER
18 09132-05043-000
SUB: 09132B05043N000		 SCREW 2 Rp17.500 W/LIFTER
19 DISCONTINUE
SUB: 85221-63J00-P4Z		 COVER, OUTSIDE RH (GRAY) 1 -
20 DISCONTINUE
SUB: 85241-63J00-P4Z		 COVER, INSIDE LH (GRAY) 1 -
21 85243-62J20-000 COVER, RISER INSIDE 1 -
22 DISCONTINUE
SUB: 85222M63J00-P4Z		 COVER, BACK FRAME RH (GRAY) 1 -
23 DISCONTINUE
SUB: 85242-63J00-P4Z		 COVER, BACK FRAME LH (GRAY) 1 -
24-2 DISCONTINUE
SUB: 85380-63JA0-AXY		 TRIM, FR BACK RH 1 - W/SIDE AIR BAG
24-1 DISCONTINUE
SUB: 85380-63J00-AWY		 TRIM, FR BACK RH 1 - N/SIDE AIR BAG
25-1 DISCONTINUE
SUB: 85305-65J00-000		 BACK SUB ASSY, FR RH 1 - N/SIDE AIR BAG
25-2 85305-65JA0-000 BACK SUB ASSY, FR RH 1 - W/SIDE AIR BAG
26 DISCONTINUE
SUB: 85341-63J00-P4Z		 GUIDE, HEADRESTRAINT (GRAY) 1 -
27 DISCONTINUE
SUB: 85840-63J00-P4Z		 GUIDE, HEADRESTRAINT (GRAY) 1 -
28 DISCONTINUE
SUB: 85350-62J00-P4Z		 MODULE ASSY, SIDE AIR BAG (GRAY) 1 - W/SIDE AIR BAG
29 DISCONTINUE
SUB: 85352-62J00-000		 •NUT, SIDE AIR BAG 1 - W/SIDE AIR BAG
30 DISCONTINUE
SUB: 85353-62J00-000		 •SLEEVE, SIDE AIR BAG 1 - W/SIDE AIR BAG
31 DISCONTINUE
SUB: 85351-62J00-000		 FASTENER, SIDE AIR BAG 1 - W/SIDE AIR BAG
32 DISCONTINUE
SUB: 85355-62J00-000		 HARNESS ASSY, SIDE AIR BAG 1 - W/SIDE AIR BAG
33 09387-19001-000
SUB: 09387B19001N000		 RING, TRIM 2 Rp9.000
34 DISCONTINUE
SUB: 86401-63J00-S5K		 HEADRESTRAINT ASSY (BLACK) 1 -
35 DISCONTINUE
SUB: 86658-58J80-S9K		 TRIM, FR CUSHION RR (BLACK) 1 -
36 36990-25G00-000
SUB: 09407-14403L000		 CLAMP 1 Rp13.000
37 01550-1016A-000
SUB: 01550-10163-000		 BOLT 4 Rp5.500
38 03241-0512A-000
SUB: 03242-05123-000		 SCREW 4 Rp3.500
39 DISCONTINUE
SUB: 85680-63J00-AWY		 TRIM, FR CUSHION LH 1 -
40 DISCONTINUE
SUB: 85106-63J40-000		 CUSHION SUB ASSY, FR LH 1 -
41 DISCONTINUE
SUB: 86602-63J00-000		 •ADJUSTER SUB ASSY, INSIDE 1 -
42 DISCONTINUE
SUB: 86762-63J00-000		 ••RISER 1 -
43 DISCONTINUE
SUB: 86770-63J00-000		 ••RISER 1 -
44 08316-1010A-000
SUB: 08316-10103-000		 ••NUT 3 Rp3.500
45 DISCONTINUE
SUB: 86604-63J00-000		 •ADJUSTER SUB ASSY, OUTSIDE 1 -
46 86641-63J00-000 ••RISER 1 -
47 86760-63J00-000 ••RISER 1 -
48 08316-1010A-000
SUB: 08316-10103-000		 ••NUT 3 Rp3.500
49 DISCONTINUE
SUB: 86691-63J00-000		 •HANDLE, ADJUSTER 1 -
50 01550-0816A-000
SUB: 86715-63J00-000		 •BOLT 2 Rp6.000
51 DISCONTINUE
SUB: 86717-63J00-000		 •BOLT 1 -
52 DISCONTINUE
SUB: 86719-63J00-000		 •BOLT 1 -
53 DISCONTINUE
SUB: 85169-63J00-000		 •SILENCER 1 -
54 85150M63J00-000 TRAY, SEAT UNDER 1 Rp111.000 W/TRAY
55 09387-19001-000
SUB: 09387B19001N000		 RING, TRIM 11 Rp9.000
56 DISCONTINUE
SUB: 85222M63J00-P4Z		 COVER, BACK FRAME RH (GRAY) 1 -
57 DISCONTINUE
SUB: 85242-63J00-P4Z		 COVER, BACK FRAME LH (GRAY) 1 -
58-1 85380-63J10-AWY TRIM, FR BACK 1 - N/SIDE AIR BAG
58-2 DISCONTINUE
SUB: 85880-63JH0-AXY		 TRIM, FR BACK 1 - W/SIDE AIR BAG
59-2 DISCONTINUE
SUB: 85306-65JB0-000		 BACK SUB ASSY, FR LH 1 - W/SIDE AIR BAG
59-1 DISCONTINUE
SUB: 85306-65J10-000		 BACK SUB ASSY, FR LH 1 - N/SIDE AIR BAG
60 DISCONTINUE
SUB: 85341-63J00-P4Z		 GUIDE, HEADRESTRAINT (GRAY) 1 -
61 DISCONTINUE
SUB: 85840-63J00-P4Z		 GUIDE, HEADRESTRAINT (GRAY) 1 -
62 DISCONTINUE
SUB: 85850-62J00-P4Z		 MODULE ASSY, SIDE AIR BAG (GRAY) 1 - W/SIDE AIR BAG
63 DISCONTINUE
SUB: 85352-62J00-000		 •NUT, SIDE AIR BAG 1 - W/SIDE AIR BAG
64 DISCONTINUE
SUB: 85353-62J00-000		 •SLEEVE, SIDE AIR BAG 1 - W/SIDE AIR BAG
65 DISCONTINUE
SUB: 85351-62J00-000		 FASTENER, SIDE AIR BAG 1 - W/SIDE AIR BAG
66 DISCONTINUE
SUB: 85355-62J00-000		 HARNESS ASSY, SIDE AIR BAG 1 - W/SIDE AIR BAG
67 09387-19001-000
SUB: 09387B19001N000		 RING, TRIM 2 Rp9.000
68 85711-63J00-P4Z KNOB, RECLINING LH (GRAY) 1 Rp72.000
69 DISCONTINUE
SUB: 85721-63J00-P4Z		 COVER, OUTSIDE LH (GRAY) 1 -
70 DISCONTINUE
SUB: 85741-63J00-P4Z		 COVER, INSIDE LH (GRAY) 1 -
71 86590-58J01-P4Z
SUB: 86590-58J00-P4Z		 HOOK 1 Rp110.500
72 DISCONTINUE
SUB: 86401-63J00-S5K		 HEADRESTRAINT ASSY (BLACK) 1 -
73 DISCONTINUE
SUB: 86658-58J80-S9K		 TRIM, FR CUSHION RR (BLACK) 1 -
74 36990-25G00-000
SUB: 09407-14403L000		 CLAMP 1 Rp13.000
75 01550-1016A-000
SUB: 01550-10163-000		 BOLT 4 Rp5.500
76 03241-0512A-000
SUB: 03242-05123-000		 SCREW 4 Rp3.500
77 09119-08097-000
SUB: 09119-08094-000		 BOLT 8 Rp32.500
78 DISCONTINUE
SUB: 85354-59JC1-000		 LABEL, SIDE AIR BAG 2 - W/SIDE AIR BAG

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
