SWIFT RS415

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.105 FRONT HOOD PANELFIG.106 FRONT FENDERFIG.107 FRONT BODY PANELFIG.108 FLOOR PANELFIG.109 SIDE BODY PANELFIG.110 ROFF PANELFIG.111 FRONT BUMPERFIG.112 REAR BUMPERFIG.113 INSTRUMENT PANEL (LHD)FIG.114 INSTRUMENT PANEL (RHD)FIG.115 VENTILATOR (LHD)FIG.116 VENTILATOR (RHD)FIG.117 HEATER (LHD)FIG.118 HEATER (RHD:MANUAL AIR CON)FIG.119 HEATER (RHD:AUTO AIR CON)FIG.120 HEATER CONTROL (LHD)FIG.121 HEATER CONTROL (RHD)FIG.122 CONSOLE BOXFIG.123 FLOOR CARPET (LHD)FIG.124 FLOOR CARPET (RHD)FIG.125 INTERIOR TRIMFIG.126 COVER/CAPFIG.127 FUEL LID OPENERFIG.128 ROOF SIDE PADFIG.129 ROOF LINING/ROOF MOLDINGFIG.130 SPLASH GUARDFIG.131 EMBLEMFIG.132 WINDSHIELDFIG.133 FRONT DOOR PANELFIG.134 FRONT DOOR REGULATORFIG.135 FRONT DOOR LOCKFIG.136 REAR DOOR PANELFIG.137 REAR DOOR REGULATORFIG.138 REAR DOOR LOCKFIG.139 BACK DOOR PANELFIG.140 BACK DOOR LOCKFIG.141 MIRROR/SUNVISOR (LHD)FIG.142 MIRROR/SUNVISOR (RHD)FIG.143 TOOLFIG.144 FUEL TANKFIG.145 SEAT BELTFIG.146 FRONT SEAT (GA)FIG.147 FRONT SEAT (LHD:GL)FIG.148 FRONT SEAT (RHD:GL)FIG.149 RH REAR SEATFIG.150 LH REAR SEATFIG.151 PARCEL SHELFFIG.152 AIR CONDITIONER (LHD)FIG.153 AIR CONDITIONER (RHD)FIG.154 COMPRESSOR (LHD)FIG.155 COMPRESSOR (RHD)

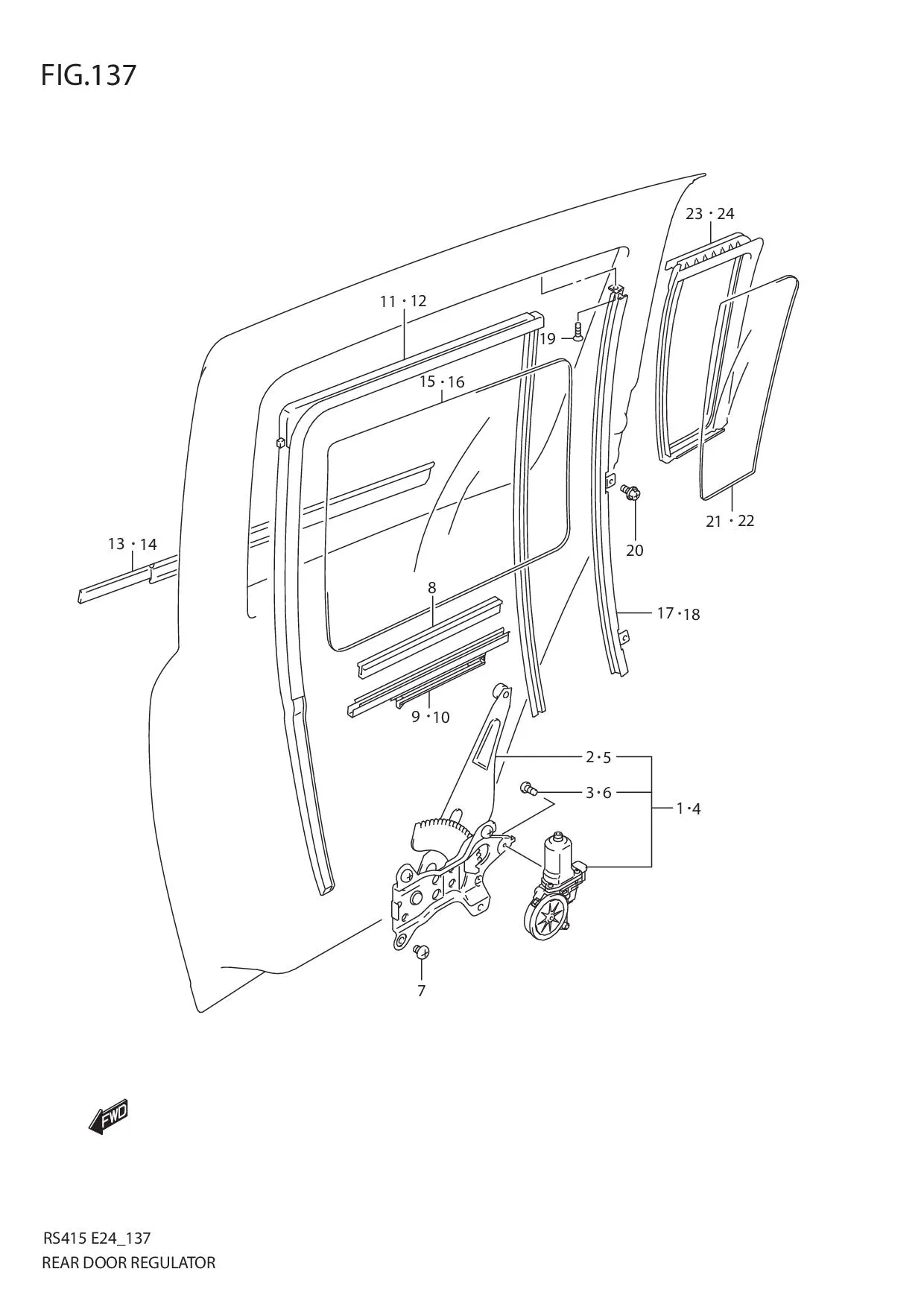

FIG.137 REAR DOOR REGULATOR

FIG.137 REAR DOOR REGULATOR
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 83501-63J10-000		 REGULATOR ASSY, WINDOW RH 1 -
2 DISCONTINUE
SUB: 83510-63J10-000		 •REGULATOR, WINDOW RH 1 -
3 09139-05063-000 •SCREW (5X11) 3 Rp16.000
4 DISCONTINUE
SUB: 83502-63J10-000		 REGULATOR ASSY, WINDOW LH 1 -
5 83540-63J10-000 •REGULATOR, WINDOW LH 1 Rp902.500
6 09139-05063-000 •SCREW (5X11) 3 Rp16.000
7 02112M7612A-000
SUB: 02112-76123-000		 SCREW 4 Rp5.500
8 83691-60A00-000
SUB: 83691M63J00-000		 RUBBER, GLASS BOTTOM 2 Rp37.000
9 83630M72J00-000 CHANNEL, GLASS BOTTOM RH 1 Rp23.500
10 83640M72J00-000 CHANNEL, GLASS BOTTOM LH 1 Rp23.500
11 83671-63J12-000
SUB: 83671-63J00-000		 RUN, GLASS RH 1 Rp778.500
12 83675-63J12-000
SUB: 83675-63J00-000		 RUN, GLASS LH 1 Rp778.500
13 83831-63J01-000
SUB: 83831-63J00-000		 WEATHERSTRIP, DOOR OUT RH 1 Rp437.000
14 83841-63J01-000
SUB: 83841-63J00-000		 WEATHERSTRIP, DOOR OUT LH 1 Rp437.000
15 DISCONTINUE
SUB: 84541B63J00N000		 GLASS, DOOR WINDOW RH 1 -
16 DISCONTINUE
SUB: 84546B63J00N000		 GLASS, DOOR WINDOW LH 1 -
17 DISCONTINUE
SUB: 81770-63J00-000		 SASH, REAR RH 1 -
18 81780-63J00-000 SASH, REAR LH 1 Rp487.500
19 02122M0512A-000
SUB: 02122-05123-000		 SCREW 2 Rp3.500
20 02162-0612B-000
SUB: 02162-06123-000		 SCREW 4 Rp16.000
21 DISCONTINUE
SUB: 84551B63J00N000		 GLASS, RR DR PARTITION RH 1 -
22 DISCONTINUE
SUB: 84556B63J00N000		 GLASS, RR DR PARTITION LH 1 -
23 84665-63J00-000 WEATHERSTRIP, DR PARTITION RH 1 Rp386.500
24 84675-63J00-000 WEATHERSTRIP, DR PARTITION LH 1 Rp386.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
