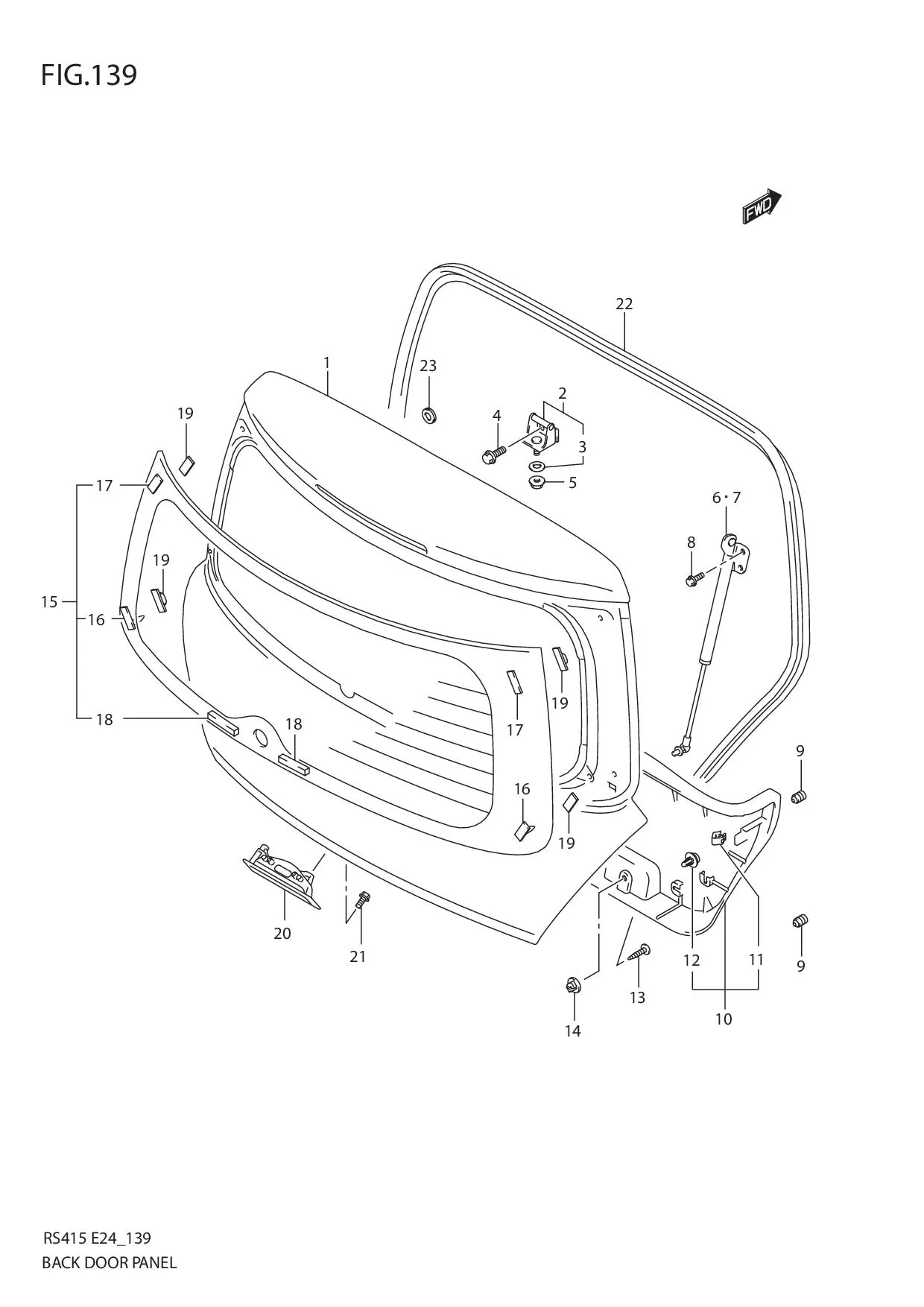

FIG.139 BACK DOOR PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	69100-63J23-000 SUB: 69100-63J21-000	PANEL ASSY, BACK DOOR	1	Rp7.382.000
2	69510M54G00-000	HINGE, BACK DOOR	2	Rp28.500
3	69571M76G00-000	•PACKING, HINGE	2	Rp6.500
4	09111-06086-000	BOLT	4	Rp16.000
5	08361-2508A-000 SUB: 08361-25083-000	NUT	2	Rp16.500
6	81800-63812-000 SUB: 81800-63811-000	BALANCER, BACK DOOR RH	1	Rp1.680.500
7	81800-63822-000 SUB: 81800-63821-000	BALANCER, BACK DOOR LH	1	Rp1.669.500
8	01551-0812A-000 SUB: 01551-08123-000	BOLT	4	Rp18.500
9	82683-60B10-000	CUSHION	4	Rp33.500
10	83770-63J01-P4Z SUB: 83770-63J00-P4Z	TRIM, BACK DOOR (GRAY)	1	Rp1.429.500
11	09409-08326-000 SUB: 09409-08325-000	•CLIP	2	Rp8.000
12	09409-08331-000	•CLIP	6	Rp17.000
13	03141-0616A-000 SUB: 03141-06163-000	SCREW	1	Rp19.500
14	71851M70F00-000 SUB: 09148M06007-000	NUT	1	Rp4.000
15	84570-63J40-000 SUB: 84570B63J00N000	GLASS, BACK DOOR WINDOW	1	Rp1.495.000
16	84572-74G00-000	•MALE, GLASS FASTENER NO.1	2	Rp42.500
17	84513-76F00-000	•MALE, GLASS FASTENER NO.2	2	Rp38.500
18	84617-76F00-000	•SPACER	2	Rp45.000
19	84515-65D00-000	FEMALE, GLASS FASTENER NO.2	4	Rp45.500
20-1	DISCONTINUE SUB: 82850-63JA0-ZCV	HANDLE, DOOR LOCK (ORANGE)	1	-	N/KEYLESS START
20-16	82850-63JB0-Z7T	HANDLE, DOOR LOCK (WHITE)	1	-	W/KEYLESS START
20-15	82850-63JB0-Z2S	HANDLE, DOOR LOCK (SILVER)	1	-	W/KEYLESS START
20-14	82850-63JB0-ZY4	HANDLE, DOOR LOCK (GRAY)	1	-	W/KEYLESS START
20-13	82850-63JB0-ZK1	HANDLE, DOOR LOCK (LABENDER)	1	-	W/KEYLESS START
20-12	82850-63JB0-ZJ3	HANDLE, DOOR LOCK (BLACK)	1	-	W/KEYLESS START
20-11	82850-63JB0-ZDF	HANDLE, DOOR LOCK (RED)	1	-	W/KEYLESS START
20-10	82850-63JB0-ZCW	HANDLE, DOOR LOCK (BLUE)	1	-	W/KEYLESS START
20-9	82850-63JB0-ZCV	HANDLE, DOOR LOCK (ORANGE)	1	-	W/KEYLESS START
20-8	82850-63JA0-Z7T	HANDLE, DOOR LOCK (WHITE)	1	Rp601.500	N/KEYLESS START
20-7	82850-63JA0-Z2S	HANDLE, DOOR LOCK (SILVER)	1	Rp823.500	N/KEYLESS START
20-6	DISCONTINUE SUB: 82850-63JA0-ZY4	HANDLE, DOOR LOCK (GRAY)	1	-	N/KEYLESS START
20-5	DISCONTINUE SUB: 82850-63JA0-ZK1	HANDLE, DOOR LOCK (LAVENDER)	1	-	N/KEYLESS START
20-4	DISCONTINUE SUB: 82850-63JA0-ZJ3	HANDLE, DOOR LOCK (BLACK)	1	-	N/KEYLESS START
20-3	DISCONTINUE SUB: 82850-63JA0-ZDF	HANDLE, DOOR LOCK (RED)	1	-	N/KEYLESS START
20-2	DISCONTINUE SUB: 82850-63JA0-ZCW	HANDLE, DOOR LOCK (BLUE)	1	-	N/KEYLESS START
21	02162-0612B-000 SUB: 02162-06123-000	SCREW, HANDLE	2	Rp16.000
22	84681-63J11-000 SUB: 84681-63J10-000	WEATHERSTRIP, DOOR OPENING	1	Rp1.028.000
23	09250M20031-000 SUB: 09250M20023-000	CAP (OD:25.8)	1	Rp4.500
