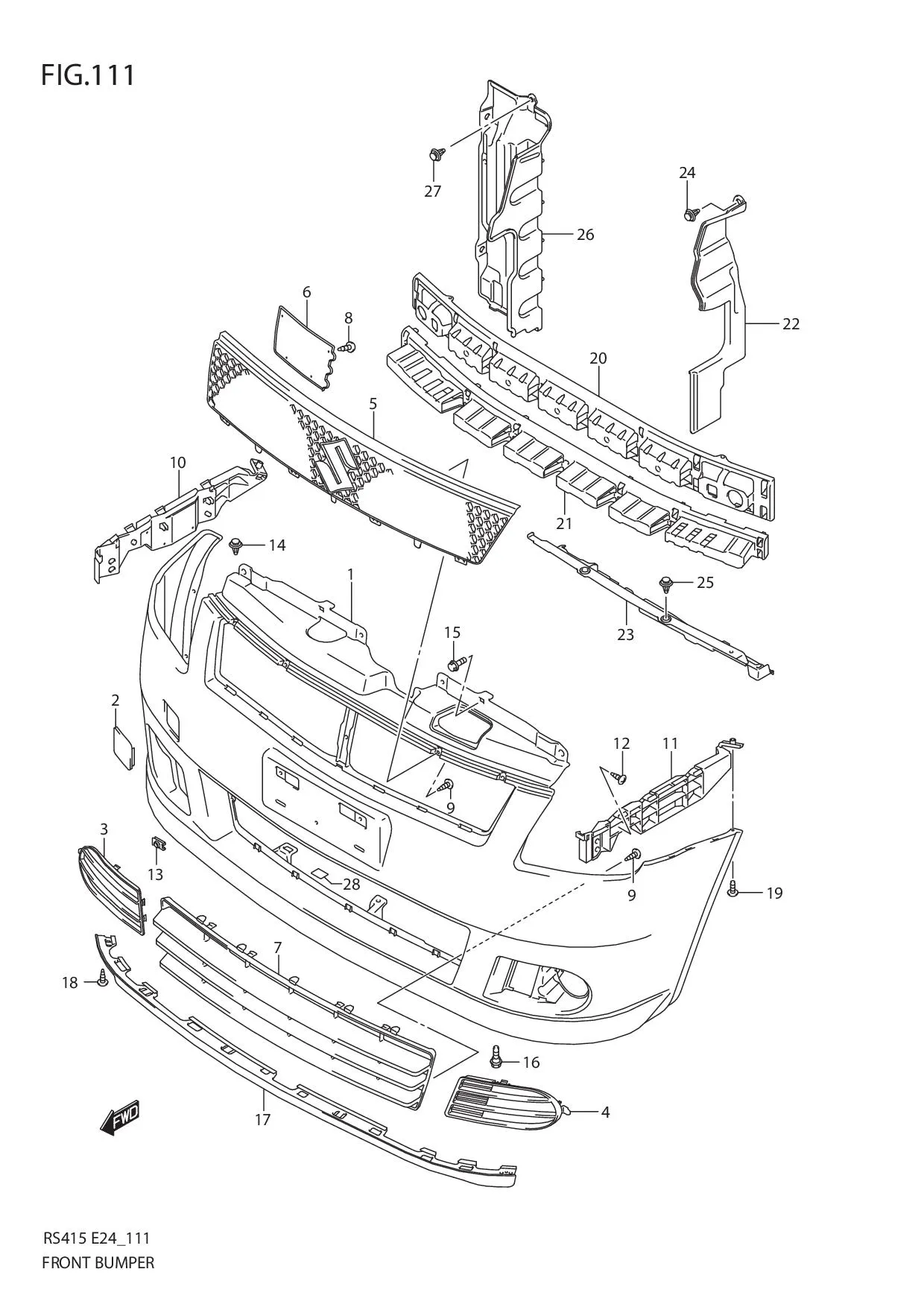

FIG.111 FRONT BUMPER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	71711-63J00-799	BUMPER, FRONT (PRIMARY COAT)	1	Rp6.646.500	PAINT TO MATCH
2-1	DISCONTINUE SUB: 71712-63J00-ZCV	CAP, FR BUMPER (ORANGE)	1	-
2-8	DISCONTINUE SUB: 71712-63J00-Z7T	CAP, FR BUMPER (WHITE)	1	-
2-7	DISCONTINUE SUB: 71712-63J00-Z2S	CAP, FR BUMPER (SILVER)	1	-
2-6	DISCONTINUE SUB: 71712-63J00-ZY4	CAP, FR BUMPER (GRAY)	1	-
2-5	DISCONTINUE SUB: 71712-63J00-ZK1	CAP, FR BUMPER (LAVENDER)	1	-
2-4	71712-63J00-ZJ3	CAP, FR BUMPER (BLACK)	1	Rp260.500
2-3	DISCONTINUE SUB: 71712-63J00-ZDF	CAP, FR BUMPER (RED)	1	-
2-2	DISCONTINUE SUB: 71712-63J00-ZCW	CAP, FR BUMPER (BLUE)	1	-
3-1	71751-63J00-5PK	BEZEL, FR FOG LAMP RH (BLACK)	1	Rp161.000	N/FOG LAMP
3-2	71751-63J10-5PK	BEZEL, FR FOG LAMP RH (BLACK)	1	Rp168.500	W/FOG LAMP
4-1	71761-63J00-5PK	BEZEL, FR FOG LAMP LH (BLACK)	1	Rp161.000	N/FOG LAMP
4-2	71761-63J10-5PK	BEZEL, FR FOG LAMP LH (BLACK)	1	Rp168.500	W/FOG LAMP
5	DISCONTINUE SUB: 71741B63J00N5PK	GRILLE, RADIATOR (BLACK)	1	-
6	DISCONTINUE SUB: 71742-63J00-000	COVER, RADIATOR GRILLE	1	-
7	71721-63J00-5PK	GRILLE, RADIATOR LOWER (BLACK)	1	Rp664.500
8	03541-0412A-000 SUB: 03541-04123-000	SCREW	4	Rp3.500
9	03541-0412A-000 SUB: 03541-04123-000	SCREW	7	Rp3.500
10	71731-63J20-000 SUB: 71731-63J00-000	HOLDER, FR BUMPER SIDE RH	1	Rp277.500
11	71732-63J20-000 SUB: 71732-63J00-000	HOLDER, FR BUMPER SIDE LH	1	Rp277.500
12	03511-0512B-000 SUB: 03512-05123-000	SCREW	4	Rp2.500
13	09148-06021-000 SUB: 71812-82010-000	NUT	2	Rp27.500
14	09409-08327-000	CLIP	2	Rp15.000
15	09103-06283-000 SUB: 09103-06240-000	BOLT, UPPER	4	Rp20.500
16	09111-06094-000 SUB: 09111-06061-000	BOLT, LOWER	3	Rp15.000
17	71770-63J00-000	SKIRT, FR AIR DAM	1	Rp558.000
18	03541-0512A-000 SUB: 03541-05123L000	SCREW	6	Rp3.500
19	09136-05068-000 SUB: 09136-05057-000	SCREW, SIDE (5X20)	2	Rp15.000
20	72394-63J00-000	ABSORBER, FR BUMPER UPPER	1	Rp3.233.500
21	72395-63J00-000	ABSORBER, FR BUMPER LOWER	1	Rp1.904.000
22	72397-63J10-000	COVER, FR END SIDE LH	1	Rp242.500
23	72398-63J00-000	COVER, FR END LOWER	1	-
24	09409-08327-000	CLIP	3	Rp15.000
25	09409-08327-000	CLIP	6	Rp15.000
26	72393-73K00-000 SUB: 72393-63J00-000	COVER, ENGINE FR	1	Rp1.084.000
27	09409-08327-000	CLIP	4	Rp15.000
28	44281-29C00-000 SUB: 63191-25C00-000	CUSHION, FR BUMPER	1	Rp6.000	L:30!25 JSAEZC11S00100001% JS2ZC11S 65100001% JSAEZC21S00100247% JS2ZC21S 65100001%
