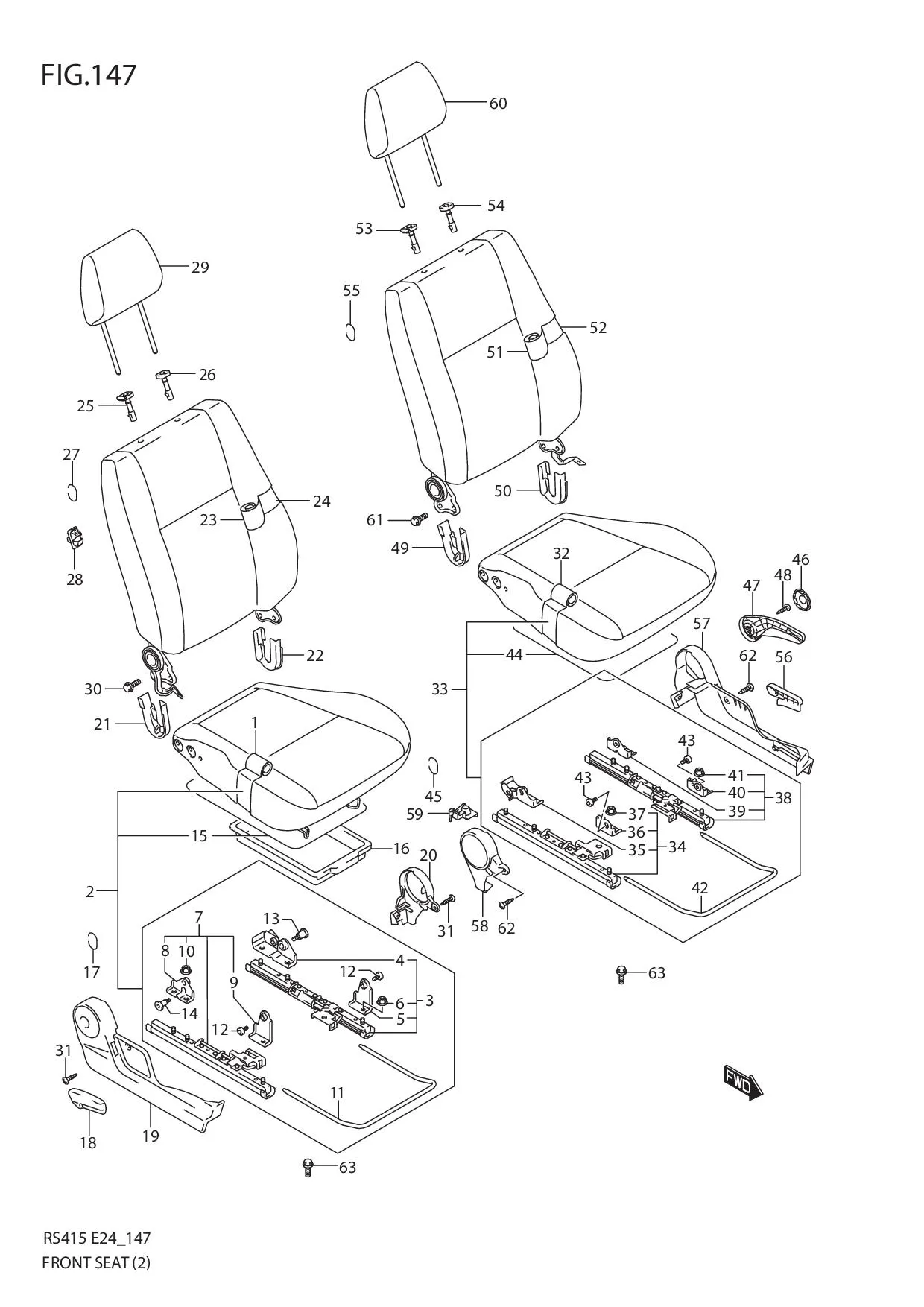

FIG.147 FRONT SEAT (LHD:GL)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	85180-63J00-AWY	TRIM, FR CUSHION	1	-
2	85105-63J40-000	CUSHION SUB ASSY, FR RH	1	-
3	86601-63J00-000	•ADJUSTER SUB ASSY, INSIDE	1	-
4	86712-63J00-000	••RISER	1	-
5	86720-63J00-000	••RISER	1	-
6	08316-1010A-000 SUB: 08316-10103-000	••NUT	3	Rp3.500
7	86603-63J00-000	•ADJUSTER SUB ASSY, OUTSIDE	1	-
8	86641-63J00-000	••RISER	1	-
9	86710-63J00-000	••RISER	1	-
10	08316-1010A-000 SUB: 08316-10103-000	••NUT	3	Rp3.500
11	DISCONTINUE SUB: 86691-63J00-000	•HANDLE, ADJUSTER	1	-
12	01550-0816A-000 SUB: 86715-63J00-000	•BOLT	2	Rp6.000
13	DISCONTINUE SUB: 86717-63J00-000	•BOLT	1	-
14	DISCONTINUE SUB: 86719-63J00-000	•BOLT	1	-
15	DISCONTINUE SUB: 85169-63J00-000	•SILENCER	1	-
16	85150M63J00-000	TRAY, SEAT UNDER	1	Rp111.000	W/TRAY
17	09387-19001-000 SUB: 09387B19001N000	RING, TRIM	11	Rp9.000
18	85211-63J00-P4Z	KNOB, RECLINING RH (GRAY)	1	Rp80.500
19	DISCONTINUE SUB: 85221-63J00-P4Z	COVER, OUTSIDE RH (GRAY)	1	-
20	DISCONTINUE SUB: 85241-63J00-P4Z	COVER, INSIDE RH (GRAY)	1	-
21	DISCONTINUE SUB: 85222M63J00-P4Z	COVER, BACK FRAME RH (GRAY)	1	-
22	DISCONTINUE SUB: 85242-63J00-P4Z	COVER, BACK FRAME LH (GRAY)	1	-
23	85380-63J10-AWY	TRIM, FR BACK RH	1	-
24	85305-65J10-000	BACK SUB ASSY, FR RH	1	-
25	DISCONTINUE SUB: 85341-63J00-P4Z	GUIDE, HEADRESTRAINT (GRAY)	1	-
26	DISCONTINUE SUB: 85840-63J00-P4Z	GUIDE, HEADRESTRAINT (GRAY)	1	-
27	09387-19001-000 SUB: 09387B19001N000	RING, TRIM	2	Rp9.000
28	86590-58J01-P4Z SUB: 86590-58J00-P4Z	HOOK	1	Rp110.500
29	DISCONTINUE SUB: 86401-63J00-S5K	HEADRESTRAINT ASSY (BLACK)	1	-
30	01550-1016A-000 SUB: 01550-10163-000	BOLT	4	Rp5.500
31	03241-0512A-000 SUB: 03242-05123-000	SCREW	4	Rp3.500
32	85680-63J20-AWY	TRIM, FR CUSHION LH	1	-
33	85106-63J20-000	CUSHION SUB ASSY, FR LH	1	-
34	86602-63J20-000	•ADJUSTER SUB ASSY, INSIDE	1	-
35	86762-63J20-000	••RISER	1	-
36	86771-63J20-000	••RISER	1	-
37	08316-1010A-000 SUB: 08316-10103-000	••NUT	3	Rp3.500
38	86604-63J20-000	•ADJUSTER SUB ASSY, OUTSIDE	1	-
39	DISCONTINUE SUB: 86641-63J20-000	••RISER	1	-
40	86760-63J20-000	••RISER	1	-
41	08316-1010A-000 SUB: 08316-10103-000	••NUT	3	Rp3.500
42	DISCONTINUE SUB: 86691-63J00-000	•HANDLE, ADJUSTER	1	-
43	DISCONTINUE SUB: 86717-63J30-000	•BOLT	4	-
44	DISCONTINUE SUB: 85169-63J00-000	•SILENCER	1	-
45	09387-19001-000 SUB: 09387B19001N000	RING, TRIM	11	Rp9.000
46	DISCONTINUE SUB: 85214-63J20-P4Z	CAP, LIFTER LEVER (GRAY)	1	-	W/LIFTER
47	85713-65J00-P4Z	LEVER, SEAT LIFTER LH (GRAY)	1	-	W/LIFTER
48	09132-05043-000 SUB: 09132B05043N000	SCREW	2	Rp17.500	W/LIFTER
49	DISCONTINUE SUB: 85222M63J00-P4Z	COVER, BACK FRAME RH (GRAY)	1	-
50	DISCONTINUE SUB: 85242-63J00-P4Z	COVER, BACK FRAME LH (GRAY)	1	-
51	DISCONTINUE SUB: 85380-63J00-AWY	TRIM, FR BACK LH	1	-
52	85306-65J00-000	BACK SUB ASSY, FR LH	1	-
53	DISCONTINUE SUB: 85341-63J00-P4Z	GUIDE, HEADRESTRAINT (GRAY)	1	-
54	DISCONTINUE SUB: 85840-63J00-P4Z	GUIDE, HEADRESTRAINT (GRAY)	1	-
55	09387-19001-000 SUB: 09387B19001N000	RING, TRIM	2	Rp9.000
56	85711-63J00-P4Z	KNOB, RECLINING LH (GRAY)	1	Rp72.000
57	DISCONTINUE SUB: 85721-63J00-P4Z	COVER, OUTSIDE LH (GRAY)	1	-
58	DISCONTINUE SUB: 85741-63J00-P4Z	COVER, INSIDE LH (GRAY)	1	-
59	85743-63J20-000	COVER, RISER INSIDE	1	-
60	DISCONTINUE SUB: 86401-63J00-S5K	HEADRESTRAINT ASSY (BLACK)	1	-
61	01550-1016A-000 SUB: 01550-10163-000	BOLT	4	Rp5.500
62	03241-0512A-000 SUB: 03242-05123-000	SCREW	4	Rp3.500
63	09119-08097-000 SUB: 09119-08094-000	BOLT	8	Rp32.500
