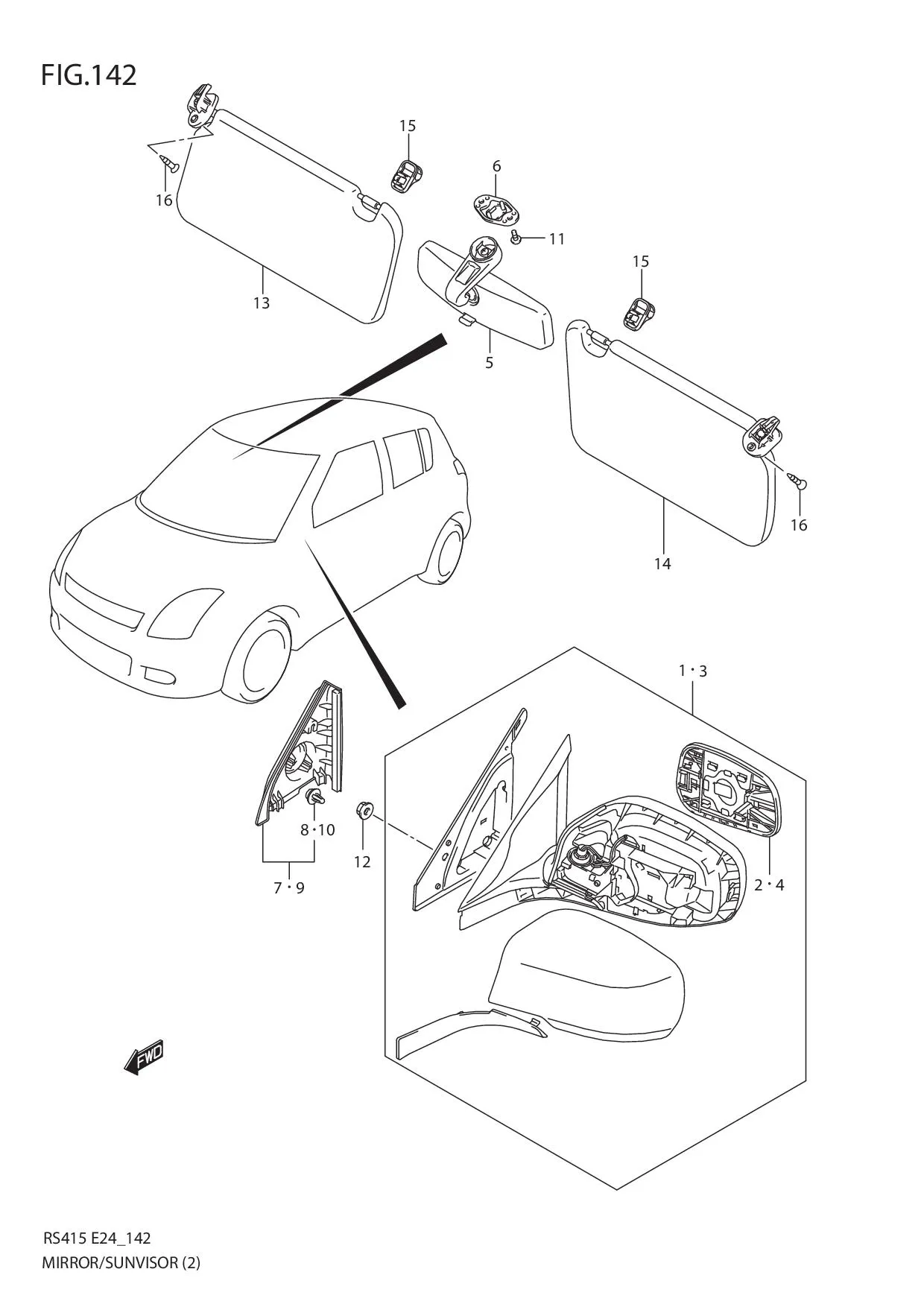

FIG.142 MIRROR/SUNVISOR (RHD)

FIG.142 MIRROR/SUNVISOR (RHD)
No No. Part Description Qty Price Per Pcs Remarks
1-14 84701-63J20-ZK1 MIRROR ASSY, OUT RR VIEW RH (LAVENDER) 1 - E35
1-1 DISCONTINUE
SUB: 84701-63J00-ZCV		 MIRROR ASSY, OUT RR VIEW RH (ORANGE) 1 - E24,E30
1-17 84701-63J20-Z7T MIRROR ASSY, OUT RR VIEW RH (WHITE) 1 - E35
1-16 84701-63J20-Z2S MIRROR ASSY, OUT RR VIEW RH (SILVER) 1 - E35
1-15 84701-63J20-ZY4 MIRROR ASSY, OUT RR VIEW RH (GRAY) 1 - E35
1-13 84701-63J20-ZJ3 MIRROR ASSY, OUT RR VIEW RH (BLACK) 1 - E35
1-12 84701-63J20-ZDF MIRROR ASSY, OUT RR VIEW RH (RED) 1 - E35
1-11 84701-63J20-ZCW MIRROR ASSY, OUT RR VIEW RH (BLUE) 1 - E35
1-10 84701-63J20-ZCV MIRROR ASSY, OUT RR VIEW RH (ORANGE) 1 - E35
1-8 DISCONTINUE
SUB: 84701-63J00-Z7T		 MIRROR ASSY, OUT RR VIEW RH (WHITE) 1 - E24,E30
1-2 DISCONTINUE
SUB: 84701-63J00-ZCW		 MIRROR ASSY, OUT RR VIEW RH (BLUE) 1 - E24,E30
1-3 DISCONTINUE
SUB: 84701-63J00-ZDF		 MIRROR ASSY, OUT RR VIEW RH (RED) 1 - E24,E30
1-4 DISCONTINUE
SUB: 84701-63J00-ZJ3		 MIRROR ASSY, OUT RR VIEW RH (BLACK) 1 - E24,E30
1-5 DISCONTINUE
SUB: 84701-63J00-ZK1		 MIRROR ASSY, OUT RR VIEW RH (LAVENDER) 1 - E24,E30
1-6 DISCONTINUE
SUB: 84701-63J00-ZY4		 MIRROR ASSY, OUT RR VIEW RH (GRAY) 1 - E24,E30
1-7 84701-63J00-Z2S MIRROR ASSY, OUT RR VIEW RH (SILVER) 1 Rp2.568.000 E24,E30
1-9 84701-63J00-5PK MIRROR ASSY, OUT RR VIEW RH (BLACK) 1 - E30
2 84730-63J00-000 •MIRROR, OUT REAR VIEW RH 1 Rp611.000
3-9 84702-63J00-5PK MIRROR ASSY, OUT RR VIEW LH (BLACK) 1 - E30
3-17 84702-63J20-Z7T MIRROR ASSY, OUT RR VIEW LH (WHITE) 1 - E35
3-16 84702-63J20-Z2S MIRROR ASSY, OUT RR VIEW LH (SILVER) 1 - E35
3-15 84702-63J20-ZY4 MIRROR ASSY, OUT RR VIEW LH (GRAY) 1 - E35
3-14 84702-63J20-ZK1 MIRROR ASSY, OUT RR VIEW LH (LAVENDER) 1 - E35
3-13 84702-63J20-ZJ3 MIRROR ASSY, OUT RR VIEW LH (BLACK) 1 - E35
3-12 84702-63J20-ZDF MIRROR ASSY, OUT RR VIEW LH (RED) 1 - E35
3-11 84702-63J20-ZCW MIRROR ASSY, OUT RR VIEW LH (BLUE) 1 - E35
3-10 84702-63J20-ZCV MIRROR ASSY, OUT RR VIEW LH (ORANGE) 1 - E35
3-7 DISCONTINUE
SUB: 84702-63J00-Z2S		 MIRROR ASSY, OUT RR VIEW LH (SILVER) 1 - E24,E30
3-6 DISCONTINUE
SUB: 84702-63J00-ZY4		 MIRROR ASSY, OUT RR VIEW LH (GRAY) 1 - E24,E30
3-5 DISCONTINUE
SUB: 84702-63J00-ZK1		 MIRROR ASSY, OUT RR VIEW LH (LAVENDER) 1 - E24,E30
3-4 DISCONTINUE
SUB: 84702-63J00-ZJ3		 MIRROR ASSY, OUT RR VIEW LH (BLACK) 1 - E24,E30
3-3 DISCONTINUE
SUB: 84702-63J00-ZDF		 MIRROR ASSY, OUT RR VIEW LH (RED) 1 - E24,E30
3-2 DISCONTINUE
SUB: 84702-63J00-ZCW		 MIRROR ASSY, OUT RR VIEW LH (BLUE) 1 - E24,E30
3-1 DISCONTINUE
SUB: 84702-63J00-ZCV		 MIRROR ASSY, OUT RR VIEW LH (ORANGE) 1 - E24,E30
3-8 DISCONTINUE
SUB: 84702-63J00-Z7T		 MIRROR ASSY, OUT RR VIEW LH (WHITE) 1 - E24,E30
4 84740-63J00-000 •MIRROR, OUT REAR VIEW LH 1 Rp619.500
5 84770-63J00-000 MIRROR ASSY, INSIDE RR VIEW 1 Rp776.500
6 84781-63J00-000 BASE, INSIDE MIRROR 1 Rp157.500
7-2 84750-63J10-5PK GARNISH, RH (BLACK) 1 Rp213.000 W/TWEETER
7-1 84750-63J00-5PK GARNISH, RH (BLACK) 1 Rp188.000 N/TWEETER
8 09409-10327-000
SUB: 09409B10312N000		 •CLIP 1 Rp5.000
9-1 84790-63J00-5PK GARNISH, LH (BLACK) 1 Rp188.000 N/TWEETER
9-2 84790-63J10-5PK GARNISH, LH (BLACK) 1 Rp213.000 W/TWEETER
10 09409-10327-000
SUB: 09409B10312N000		 •CLIP 1 Rp5.000
11 02142-0616B-000
SUB: 02142B06163N000		 SCREW 2 Rp5.500
12 08316-1006A-000
SUB: 08316-10063L000		 NUT 6 Rp2.000
13-1 84801-63J30-J0T SUNVISOR ASSY, RH (GRAY) 1 - N/MIRROR
13-2 DISCONTINUE
SUB: 84801-63J20-J0T		 SUNVISOR ASSY, RH (GRAY) 1 - W/MIRROR
14-1 84802-63J30-J0T SUNVISOR ASSY, LH (GRAY) 1 - N/MIRROR
14-2 DISCONTINUE
SUB: 84802-63J20-J0T		 SUNVISOR ASSY, LH (GRAY) 1 - W/MIRROR
15 84851-77K00-6GS
SUB: 84851-65D00-6GS		 HOLDER, SUNVISOR (GRAY) 2 Rp51.000
16 03121-0516A-000
SUB: 03121-05163-000		 SCREW 2 Rp11.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
