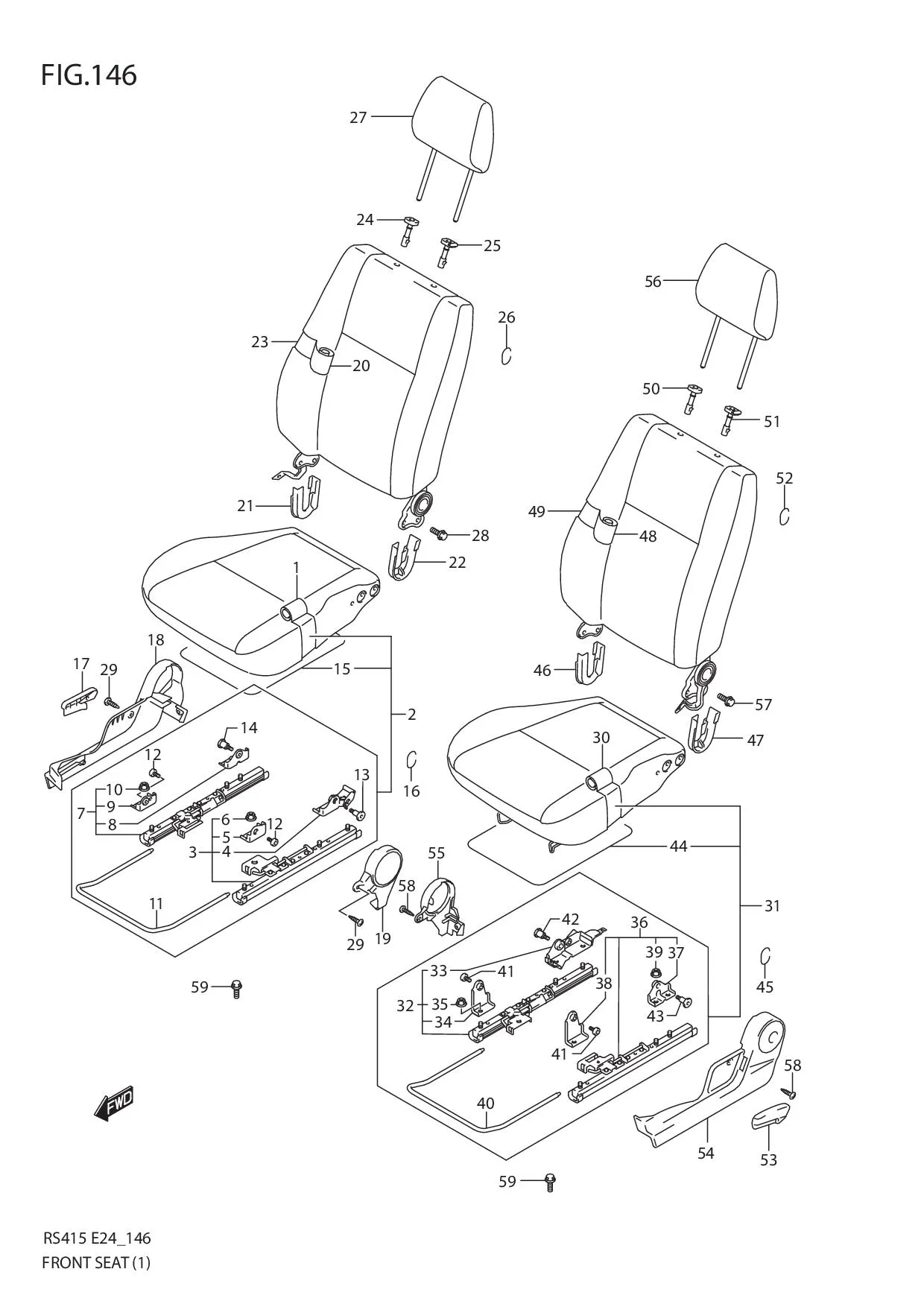

FIG.146 FRONT SEAT (GA)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	85180-63J00-AWY	TRIM, FR CUSHION	1	-
2-1	DISCONTINUE SUB: 85105-63J00-000	CUSHION SUB ASSY, FR RH	1	-	E30
2-2	85105-63J60-000	CUSHION ASUB ASSY, F R RH	1	-	E96
3	86601-63J00-000	•ADJUSTER SUB ASSY, INSIDE	1	-
4	86712-63J00-000	••RISER	1	-
5	86720-63J00-000	••RISER	1	-
6	08316-1010A-000 SUB: 08316-10103-000	••NUT	3	Rp3.500
7	86603-63J00-000	•ADJUSTER SUB ASSY, OUTSIDE	1	-
8	86641-63J00-000	••RISER	1	-
9	86710-63J00-000	••RISER	1	-
10	08316-1010A-000 SUB: 08316-10103-000	••NUT	3	Rp3.500
11	DISCONTINUE SUB: 86691-63J00-000	•HANDLE, ADJUSTER	1	-
12	01550-0816A-000 SUB: 86715-63J00-000	•BOLT	2	Rp6.000
13	DISCONTINUE SUB: 86717-63J00-000	•BOLT	1	-
14	DISCONTINUE SUB: 86719-63J00-000	•BOLT	1	-
15	DISCONTINUE SUB: 85169-63J00-000	•SILENCER	1	-
16	09387-19001-000 SUB: 09387B19001N000	RING, TRIM	11	Rp9.000
17	85211-63J00-P4Z	KNOB, RECLINING RH (GRAY)	1	Rp80.500
18	DISCONTINUE SUB: 85221-63J00-P4Z	COVER, OUTSIDE RH (GRAY)	1	-
19	DISCONTINUE SUB: 85241-63J00-P4Z	COVER, INSIDE LH (GRAY)	1	-
20	DISCONTINUE SUB: 85380-63J00-AWY	TRIM, FR BACK RH	1	-
21	DISCONTINUE SUB: 85222M63J00-P4Z	COVER, BACK FRAME RH (GRAY)	1	-
22	DISCONTINUE SUB: 85242-63J00-P4Z	COVER, BACK FRAME LH (GRAY)	1	-
23	DISCONTINUE SUB: 85305-65J00-000	BACK SUB ASSY, FR RH	1	-
24	DISCONTINUE SUB: 85341-63J00-P4Z	GUIDE, HEADRESTRAINT (GRAY)	1	-
25	DISCONTINUE SUB: 85840-63J00-P4Z	GUIDE, HEADRESTRAINT (GRAY)	1	-
26	09387-19001-000 SUB: 09387B19001N000	RING, TRIM	2	Rp9.000
27	DISCONTINUE SUB: 86401-63J00-S5K	HEADRESTRAINT ASSY (BLACK)	1	-
28	01550-1016A-000 SUB: 01550-10163-000	BOLT	4	Rp5.500
29	03241-0512A-000 SUB: 03242-05123-000	SCREW	4	Rp3.500
30	DISCONTINUE SUB: 85680-63J00-AWY	TRIM, FR CUSHION LH	1	-
31-2	85106-63J60-000	CUSHION SUB ASSY, FR LH	1	-	E96
31-1	85106-63J00-000	CUSHION SUB ASSY, FR LH	1	-	E30
32	DISCONTINUE SUB: 86602-63J00-000	•ADJUSTER SUB ASSY, INSIDE	1	-
33	DISCONTINUE SUB: 86762-63J00-000	••RISER	1	-
34	DISCONTINUE SUB: 86770-63J00-000	••RISER	1	-
35	08316-1010A-000 SUB: 08316-10103-000	••NUT	3	Rp3.500
36	DISCONTINUE SUB: 86604-63J00-000	•ADJUSTER SUB ASSY, OUTSIDE	1	-
37	86641-62J00-000	••RISER	1	-
38	86760-63J00-000	••RISER	1	-
39	08316-1010A-000 SUB: 08316-10103-000	••NUT	3	Rp3.500
40	DISCONTINUE SUB: 86691-63J00-000	•HANDLE, ADJUSTER	1	-
41	01550-0816A-000 SUB: 86715-63J00-000	•BOLT	2	Rp6.000
42	DISCONTINUE SUB: 86717-63J00-000	•BOLT	1	-
43	DISCONTINUE SUB: 86719-63J00-000	•BOLT	1	-
44	DISCONTINUE SUB: 85169-63J00-000	•SILENCER	1	-
45	09387-19001-000 SUB: 09387B19001N000	RING	11	Rp9.000
46	DISCONTINUE SUB: 85222M63J00-P4Z	COVER, BACK FRAME RH (GRAY)	1	-
47	DISCONTINUE SUB: 85242-63J00-P4Z	COVER, BACK FRAME LH (GRAY)	1	-
48	DISCONTINUE SUB: 85380-63J00-AWY	TRIM, FR BACK LH	1	-
49	85306-65J00-000	BACK SUB ASSY, FR LH	1	-
50	DISCONTINUE SUB: 85341-63J00-P4Z	GUIDE, HEADRESTRAINT (GRAY)	1	-
51	DISCONTINUE SUB: 85840-63J00-P4Z	GUIDE, HEADRESTRAINT (GRAY)	1	-
52	09387-19001-000 SUB: 09387B19001N000	RING, TRIM	2	Rp9.000
53	85711-63J00-P4Z	KNOB, RECLINING LH (GRAY)	1	Rp72.000
54	DISCONTINUE SUB: 85721-63J00-P4Z	COVER, OUTSIDE LH (GRAY)	1	-
55	DISCONTINUE SUB: 85741-63J00-P4Z	COVER, INSIDE LH (GRAY)	1	-
56	DISCONTINUE SUB: 86401-63J00-S5K	HEADRESTRAINT ASSY (BLACK)	1	-
57	01550-1016A-000 SUB: 01550-10163-000	BOLT	4	Rp5.500
58	03241-0512A-000 SUB: 03242-05123-000	SCREW	4	Rp3.500
59	09119-08097-000 SUB: 09119-08094-000	BOLT	8	Rp27.500
