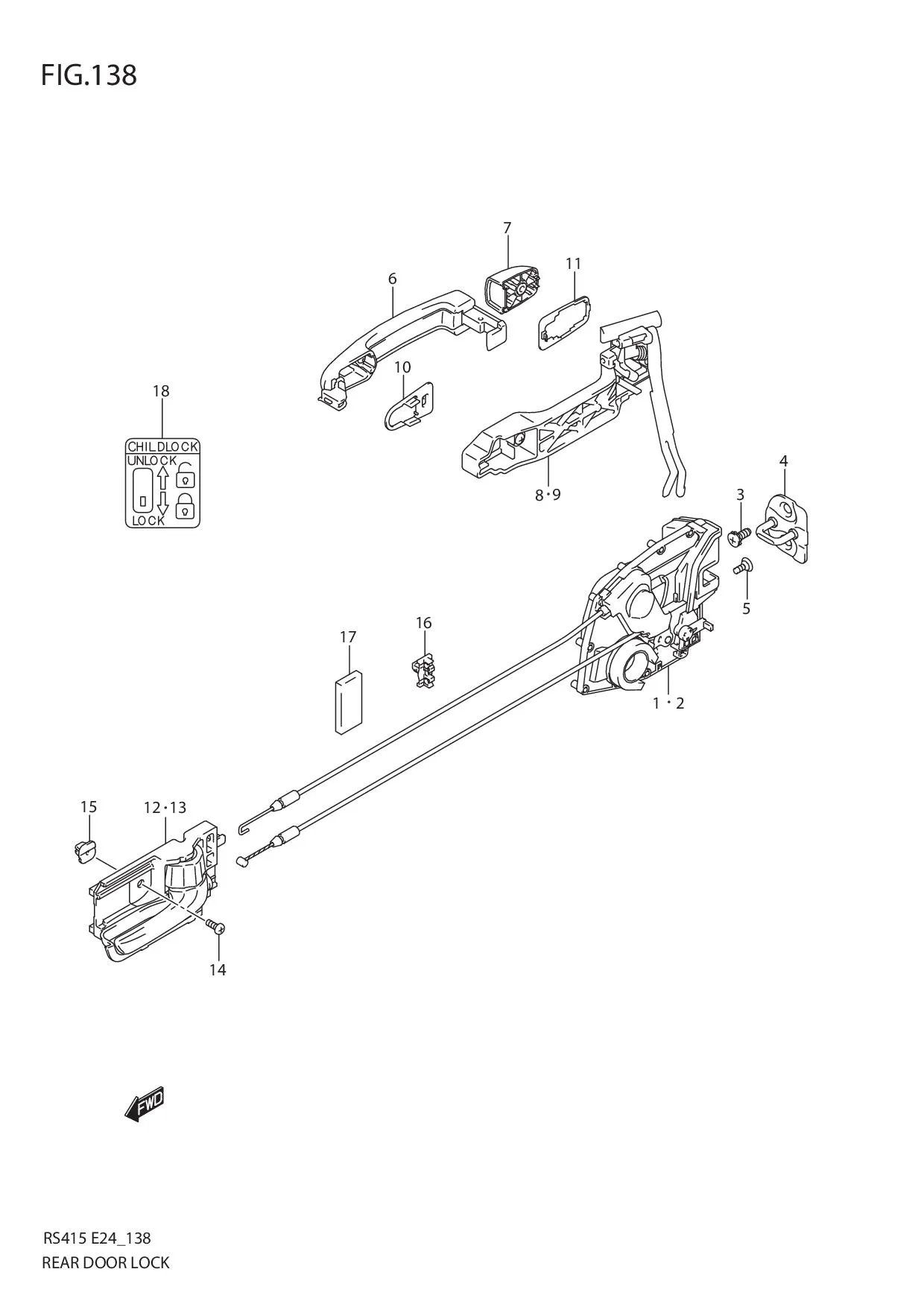

FIG.138 REAR DOOR LOCK

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	82301-63J16-000 SUB: 82301-63J11-000	LATCH ASSY, REAR DOOR RH	1	Rp1.759.000
2	82302-63J16-000 SUB: 82302-63J11-000	LATCH ASSY, REAR DOOR LH	1	Rp1.747.500
3	09137-06028-000	SCREW (6X18)	6	Rp18.500
4	82610-63J00-000	STRIKER, DOOR LATCH	2	Rp174.500
5	09137-08014-000 SUB: 09137-08006-000	SCREW (8X18)	4	Rp23.000
6-6	DISCONTINUE SUB: 82812-63J00-ZK1	HANDLE, DOOR OUT (LAVENDER)	2	-	GL
6-9	82812-63J00-Z7T	HANDLE, DOOR OUT (WHITE)	2	Rp539.000	GL
6-8	82812-63J00-Z2S	HANDLE, DOOR OUT (SILVER)	2	Rp476.000	GL
6-7	82812-63J00-ZY4	HANDLE, DOOR OUT (GRAY)	2	Rp723.000	GL
6-5	82812-63J00-ZJ3	HANDLE, DOOR OUT (BLACK)	2	Rp475.000	GL
6-4	DISCONTINUE SUB: 82812-63J00-ZDF	HANDLE, DOOR OUT (RED)	2	-	GL
6-3	82812-63J00-ZCW	HANDLE, DOOR OUT (BLUE)	2	Rp539.000	GL
6-2	DISCONTINUE SUB: 82812-63J00-ZCV	HANDLE, DOOR OUT (ORANGE)	2	-	GL
6-1	82812-63J00-5PK	HANDLE, DOOR OUT (BLACK)	2	Rp465.000	GA
7-9	DISCONTINUE SUB: 82833-63J00-Z7T	CAP, DOOR OUT (WHITE)	2	-	GL
7-8	82833-63J00-Z2S	CAP, DOOR OUT (SILVER)	2	Rp203.500	GL
7-7	DISCONTINUE SUB: 82833-63J00-ZY4	CAP, DOOR OUT (GRAY)	2	-	GL
7-6	DISCONTINUE SUB: 82833-63J00-ZK1	CAP, DOOR OUT (LAVENDER)	2	-	GL
7-5	82833-63J00-ZJ3	CAP, DOOR OUT (BLACK)	2	Rp185.500	GL
7-3	DISCONTINUE SUB: 82833-63J00-ZCW	CAP, DOOR OUT (BLUE)	2	-	GL
7-2	DISCONTINUE SUB: 82833-63J00-ZCV	CAP, DOOR OUT (ORANGE)	2	-	GL
7-1	82833-63J00-5PK	CAP, DOOR OUT (BLACK)	2	Rp186.000	GA
7-4	82833-63J00-ZDF	CAP, DOOR OUT (RED)	2	Rp273.000	GL
8	82831-63J00-000	FRAME, DOOR OUT RH	1	Rp489.500
9	82841-63J00-000	FRAME, DOOR OUT LH	1	Rp512.500
10	82834-63J00-000	PAD, DOOR OUT	2	Rp65.000
11	82815-63J00-000	CUSHION, SIDE DOOR OUT	2	Rp48.500
12-1	83110-63J01-P4Z SUB: 83110-63J00-P4Z	HANDLE, DOOR INSIDE RH (GRAY)	1	Rp315.500	GA
12-2	DISCONTINUE SUB: 83110-63J20-FC6	HANDLE, DOOR INSIDE RH	1	-	GL
13-1	83130-63J01-P4Z SUB: 83130-63J00-P4Z	HANDLE, DOOR INSIDE LH (GRAY)	1	Rp315.500	GA
13-2	DISCONTINUE SUB: 83130-63J20-FC6	HANDLE, DOOR INSIDE LH	1	-	GL
14	09132-05058-000 SUB: 09132-05051-000	SCREW (5X12)	2	Rp14.000
15	09148-05018-000	NUT, DOOR INSIDE HANDLE	2	Rp11.500
16	83271M50E00-000	CLIP	2	Rp6.500
17	77591M75000-000	PAD	2	Rp7.000
18	86951-54G00-000 SUB: 86951B54G00N000	PLATE, CHILD PROOF CAUTION	2	Rp14.500
