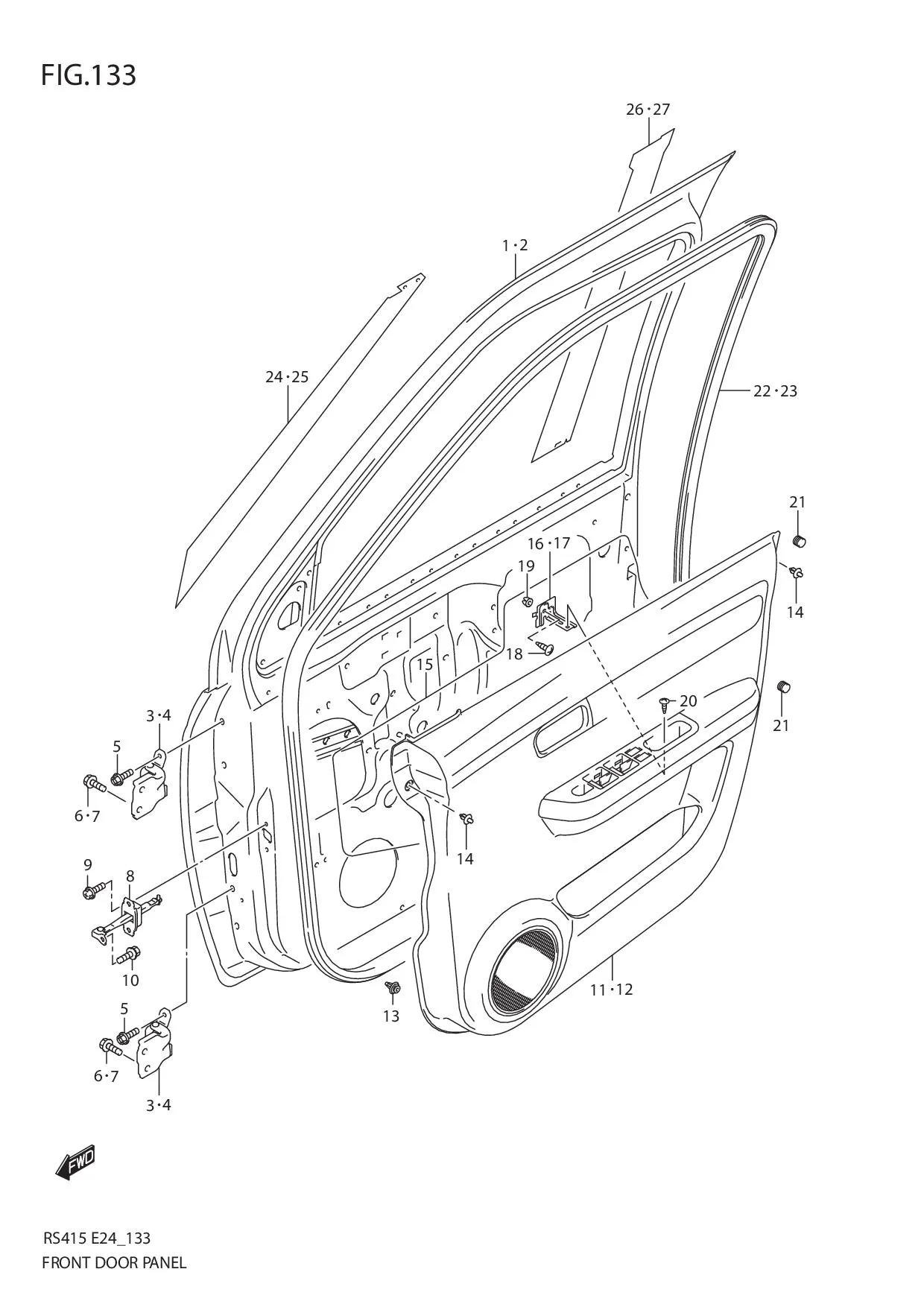

FIG.133 FRONT DOOR PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	68001-63J01-000 SUB: 68001-63J00-000	PANEL ASSY, FRONT DOOR RH	1	Rp10.750.000
2	68002-63J01-000 SUB: 68002-63J00-000	PANEL ASSY, FRONT DOOR LH	1	Rp10.750.000
3	69310-63J00-000	HINGE, FRONT DOOR NO.1	2	Rp437.000	UPPER RH,LOWER LH
4	69320-63J00-000	HINGE, FRONT DOOR NO.2	2	Rp437.000	UPPER LH,LOWER RH
5	09103M08557-000 SUB: 09103M08389-000	BOLT, DOOR (8X24)	8	Rp8.500
6	01551-0820A-000 SUB: 01551-08203-000	BOLT, PILLAR NO.1	4	Rp17.500
7	09113-08001-000	BOLT, PILLAR NO.2 (8X20)	4	Rp18.500
8	81810-54G04-000 SUB: 81810-54G00-000	STOP, FRONT DOOR OPEN	2	Rp447.500
9	09122-86004-000	SCREW (6X20)	4	Rp15.000
10	09112-08004-000	SCREW (8X25)	2	Rp26.000
11-1	83710-63J20-AYA	TRIM, FRONT DOOR RH	1	-	GA:LHD
11-2	83710-63J01-AYA	TRIM, FRONT DOOR RH	1	-	GA:RHD
11-3	83710-63J30-AYB	TRIM, FRONT DOOR RH	1	-	GL:LHD
11-4	DISCONTINUE SUB: 83710-63J10-AYB	TRIM, FRONT DOOR RH	1	-	GL:RHD
12-3	83720-63J30-AYB	TRIM, FRONT DOOR LH	1	-	GL:LHD
12	DISCONTINUE SUB: 83720-63J10-AYB	TRIM, FRONT DOOR LH	1	-
12-1	83720-63J20-AYA	TRIM, FRONT DOOR LH	1	-	GA:LHD
12-2	83720-63J01-AYA	TRIM, FRONT DOOR LH	1	-	GA:RHD
13	09409-10327-000 SUB: 09409B10312N000	CLIP	12	Rp5.000
14	09409-06314-P4Z	CLIP (GRAY)	4	Rp22.000
15	DISCONTINUE SUB: 83911-63J00-000	COVER, DOOR SEALING	2	-
16	DISCONTINUE SUB: 83751-63J00-000	BRACKET, DOOR TRIM RH	1	-
17	DISCONTINUE SUB: 83756-63J00-000	BRACKET, DOOR TRIM LH	1	-
18	03141M0612A-000 SUB: 03241M06123-000	SCREW	2	Rp4.500
19	71851M70F00-000 SUB: 09148M06007-000	NUT	2	Rp4.000
20	09132-05058-000 SUB: 09132-05051-000	SCREW (5X12)	2	Rp14.000
21	82711-65J00-000	STOPPER, DOOR	4	Rp34.000
22	84641-63J00-000	WEATHERSTRIP, DOOR OPNG RH	1	Rp977.000
23	84651-63J00-000	WEATHERSTRIP, DOOR OPNG LH	1	Rp977.000
24	DISCONTINUE SUB: 83921-63J00-0CE	TAPE, FRONT DOOR OUTER FR RH (BLACK)	1	-
25	83922-63J00-0CE	TAPE, FRONT DOOR OUTER FR LH (BLACK)	1	Rp1.434.500
26	DISCONTINUE SUB: 83923-63J00-0CE	TAPE, FRONT DOOR OUTER RR RH (BLACK)	1	-	BODY COLOR:ZCV,ZCW,ZDF,ZK1,ZY4,Z2S,Z7T
27	DISCONTINUE SUB: 83924-63J00-0CE	TAPE, FRONT DOOR OUTER RR LH (BLACK)	1	-	BODY COLOR:ZCV,ZCW,ZDF,ZK1,ZY4,Z2S,Z7T
