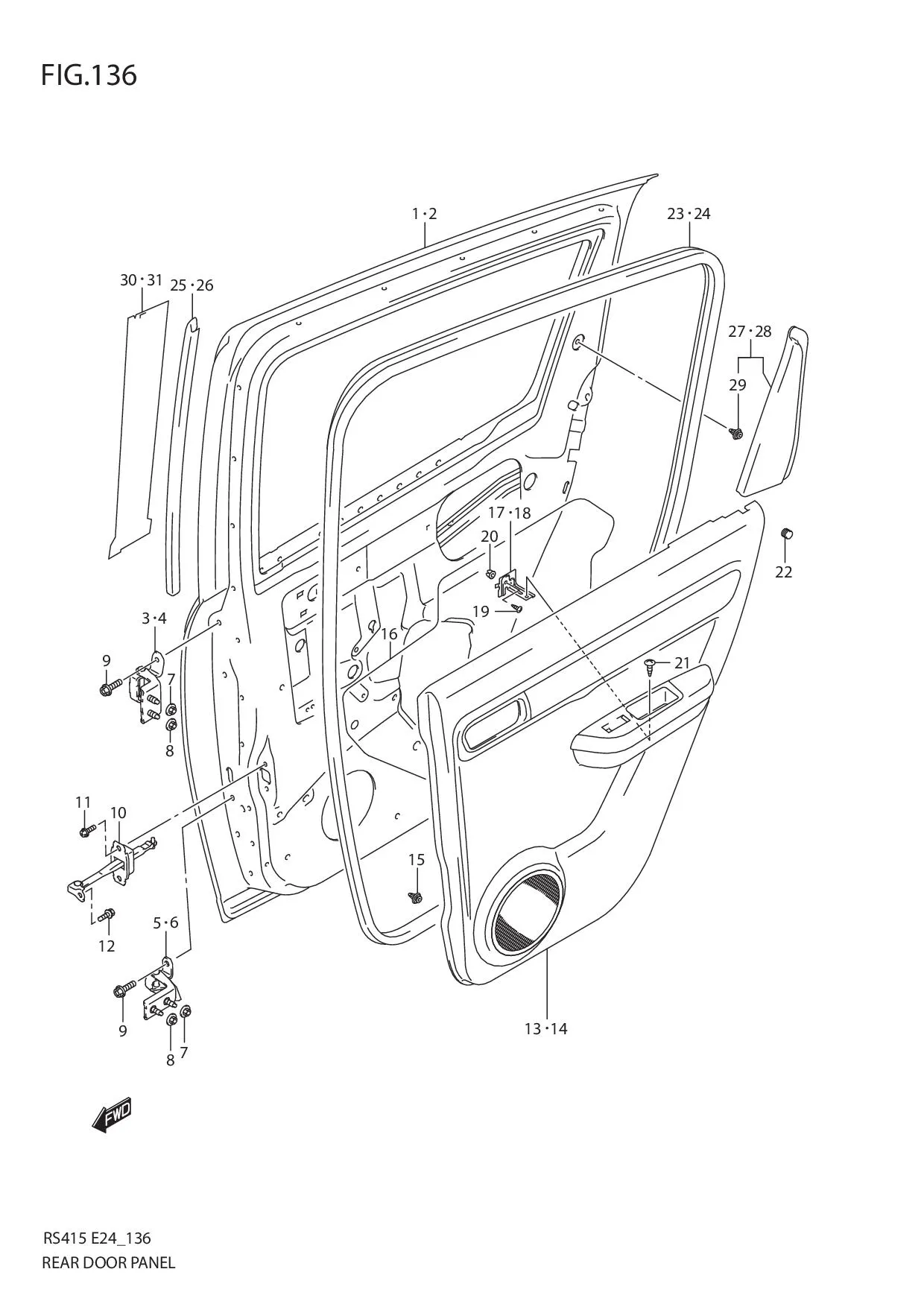

FIG.136 REAR DOOR PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	68003-63J00-000	PANEL ASSY, REAR DOOR RH	1	Rp7.453.000
2	68004-63J00-000	PANEL ASSY, REAR DOOR LH	1	Rp7.453.000
3	69410-63J00-000	HINGE, REAR DOOR UPPER RH	1	Rp528.000
4	69420-63J00-000	HINGE, REAR DOOR UPPER LH	1	Rp528.000
5	69430-63J00-000	HINGE, REAR DOOR LOWER RH	1	Rp528.000
6	69440-63J00-000	HINGE, REAR DOOR LOWER LH	1	Rp528.000
7	09159-08132-000	NUT, PILLAR	4	Rp19.500
8	08361-2508A-000 SUB: 08361-25083-000	NUT, PILLAR	4	Rp16.500
9	09103M08557-000 SUB: 09103M08389-000	BOLT, DOOR (8X24)	8	Rp8.500
10	81810-54G04-000 SUB: 81810-54G00-000	STOP, REAR DOOR OPEN	2	Rp447.500
11	09122-86004-000	SCREW (6X20)	4	Rp15.000
12	09112-08004-000	SCREW (8X25)	2	Rp26.000
13-1	83730-63J00-AYA	TRIM, REAR DOOR RH	1	-	GA
13-2	DISCONTINUE SUB: 83730-63J10-AYB	TRIM, REAR DOOR RH	1	-	GL
14-1	83740-63J00-AYA	TRIM, REAR DOOR LH	1	-	GA
14-2	DISCONTINUE SUB: 83740-63J10-AYB	TRIM, REAR DOOR LH	1	-	GL
15	09409-10327-000 SUB: 09409B10312N000	CLIP	12	Rp5.000
16	DISCONTINUE SUB: 83913-63J00-000	COVER, DOOR SEALING	2	-
17	DISCONTINUE SUB: 83751-63J00-000	BRACKET, DOOR TRIM RH	1	-
18	DISCONTINUE SUB: 83756-63J00-000	BRACKET, DOOR TRIM LH	1	-
19	03141M0612A-000 SUB: 03241M06123-000	SCREW	2	Rp4.500
20	71851M70F00-000 SUB: 09148M06007-000	NUT	2	Rp4.000
21	09132-05058-000 SUB: 09132-05051-000	SCREW	2	Rp14.000
22	82711-65J00-000	STOPPER, DOOR	2	Rp34.000
23	84661-63J00-000	WEATHERSTRIP, DOOR OPENING RH	1	Rp914.000
24	84671-63J00-000	WEATHERSTRIP, DOOR OPENING LH	1	Rp914.000
25	84669-63J00-000	WEATHERSTRIP, CTR PLR RH	1	Rp293.500
26	84679-63J00-000	WEATHERSTRIP, CTR PLR LH	1	Rp284.000
27	83796-63J00-5PK	GARNISH, DOOR INNER RH (BLACK)	1	Rp183.000
28	83797-63J00-5PK	GARNISH, DOOR INNER LH (BLACK)	1	Rp183.000
29	09409-10327-000 SUB: 09409B10312N000	•CLIP (BLACK)	4	Rp5.000
30	83931-63J00-0CE	TAPE, DOOR OUT FR RH (BLACK)	1	Rp733.000	BODY COLOR:ZCV,ZCW,ZDF,ZK1,ZY4,Z2S,Z7T
31	DISCONTINUE SUB: 83932-63J00-0CE	TAPE, DOOR OUT FR LH (BLACK)	1	-	BODY COLOR:ZCV,ZCW,ZDF,ZK1,ZY4,Z2S,Z7T
