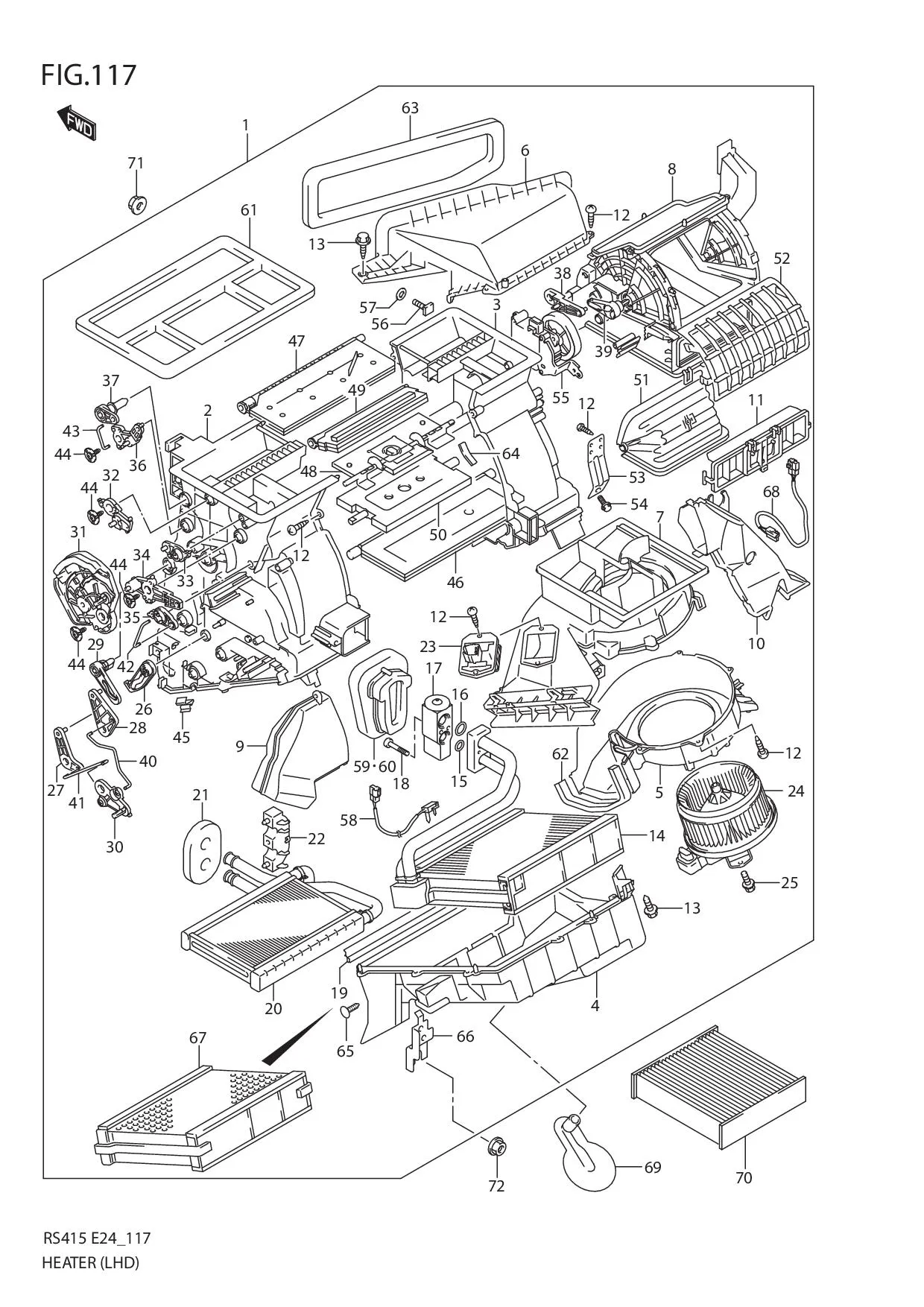

FIG.117 HEATER (LHD)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	74100-62JE0-000	HEATER UNIT	1	-	W/AIR CON
1-1	74100-62JA0-000	HEATER UNIT	1	-	N/AIR CON
2	74111-62JA0-000	•CASE, HEATER DRIVER SIDE	1	-
3	74112-62JA0-000	•CASE, HEATER ASSISTANT SIDE	1	-
4-2	74113-62JE0-000	•CASE, LOWER	1	-	W/AIR CON
4-1	74113-62JA0-000	•CASE, LOWER	1	-	N/AIR CON
5	74212-62JA0-000	•CASE, BLOWER LOWER	1	-
6	74211-62JA0-000	•CASE, BLOWER AIR INTAKE	1	-
7	74213-62JA0-000	•CASE, BLOWER	1	-
8	74214-62JA0-000	•CASE, BLOWER	1	-
9	74114-62JA0-000	•DUCT, DRIVER SIDE	1	-
10	74115-62JA0-000	•DUCT, ASSISTANT SIDE	1	-
11	95861-63J01-000 SUB: 95861-63J00-000	•HOLDER, FILTER	1	Rp155.500
12	03112-0416A-000 SUB: 03112-04163-000	•SCREW	31	Rp23.500
13	03112-06163-000	•SCREW	2	-
14	95411-62JE0-000	•EVAPORATOR	1	-	W/AIR CON
15	95895-50G00-000 SUB: 95895B50G00N000	••O RING (D:2.4,ID:10.8)	1	Rp12.500	W/AIR CON
16	95896-50G00-000 SUB: 95896B50G00N000	••O RING (D:2.4,ID:13.4)	1	Rp19.000	W/AIR CON
17	95431-63J00-000 SUB: 95431B63J00N000	•VALVE, EXPANSION	1	Rp357.500	W/AIR CON
18	74134-58J00-000 SUB: 74134B58J00N000	•BOLT, EXPANSION	2	Rp14.000	W/AIR CON
19	95461-58J00-000 SUB: 95461B58J00N000	•PACKING, EVAPORATOR LOWER	1	Rp23.000
20	74120-62JA0-000	•CORE, HEATER	1	-
21	74118-63J01-000 SUB: 74118-63J00-000	•PACKING	1	Rp74.000
22	74131-63J00-000	•BRACKET, HEATER PIPE	1	Rp112.000
23	74140-58J00-000 SUB: 74140B58J00N000	•RESISTOR	1	Rp110.000
24	74150-62JA0-000	•MOTOR, BLOWER	1	-
25	74135-82000-000 SUB: 74135B82000N000	•SCREW, MOTOR	3	Rp19.500
26	74181-62JA0-000	•LEVER, AIR MIXTURE HOT	1	-
27	74182-62JA0-000	•LEVER, AIR MIXTURE HOT	1	-
28	74183-62JA0-000	•LEVER, AIR MIXTURE COOL MIDDLE	1	-
29	74184-62JA0-000	•LEVER, AIR MIXTURE COOL DOOR	1	-
30	74818-62JA0-000	•LEVER, AIR MIXTURE	1	-
31	74187-62JA0-000	•PLATE, MODE	1	-
32	DISCONTINUE SUB: 74191-63J20-000	•LEVER, FACE MIDDLE	1	-
33	DISCONTINUE SUB: 74192-63J20-000	•LEVER, FACE DOOR	1	-
34	DISCONTINUE SUB: 74193-63J20-000	•LEVER, FOOT MIDDLE	1	-
35	DISCONTINUE SUB: 74194-63J20-000	•LEVER, FOOT DOOR	1	-
36	DISCONTINUE SUB: 74195-63J20-000	•LEVER, DEFROSTER MIDDLE	1	-
37	DISCONTINUE SUB: 74196-63J20-000	•LEVER, DEFROSTER DOOR	1	-
38	74282-63J00-000	•LEVER, FRESH AIR MIDDLE	1	Rp113.500
39	74281-63J00-000	•LEVER, FRESH AIR DOOR	1	Rp113.500
40	74186-62JA0-000	•ROD, AIR MIXTURE COOL	1	-
41	74185-62JA0-000	•ROD, AIR MIXTURE	1	-
42	DISCONTINUE SUB: 74197-63J00-000	•ROD, FOOT	1	-
43	DISCONTINUE SUB: 74198-63J00-000	•ROD, DEFROSTER	1	-
44	74183-82005-000 SUB: 74183B82005N000	•SCREW, LINK	8	Rp19.000
45	DISCONTINUE SUB: 74151-50F00-000	•CLAMP, CABLE	2	-
46	DISCONTINUE SUB: 74171-63J00-000	•DOOR, AIR MIXTURE HOT	1	-
47	74175-62JA0-000	•DOOR, AIR MIXTURE COOL	1	-
48	74172-62JA0-000	•DOOR, FACE	1	-
49	DISCONTINUE SUB: 74173-63J00-000	•DOOR, DEFROSTER	1	-
50	DISCONTINUE SUB: 74174-63J00-000	•DOOR, FOOT	1	-
51	74173-72J00-000 SUB: 74270-63J00-000	•DOOR, FRESH AIR	1	Rp356.000
52	DISCONTINUE SUB: 74215-63J00-000	•PLATE	1	-	N/AIR CON
53	95675-62JA0-000	•BRACKET	1	-
54	01560-0620A-000 SUB: 01560-06203-000	•BOLT	1	Rp2.500
55	95652-62JA0-000	•ACTUATOR, FRESH AIR	1	-
56	74115-65D00-000 SUB: 74115B65D00N000	•BOLT	5	Rp106.500
57	74119-78F10-000 SUB: 74119B78F10N000	•BUSH	5	Rp8.000
58	95541-63J20-000	•THERMISTOR	1	-	W/AIR CON
59	95465-62JA0-000	•COVER	1	-	N/AIR CON
60	95465-62JE0-000	•COVER	1	-	W/AIR CON
61	74116-63J00-000 SUB: 74116B63J00N000	•PACKING, FACE	1	Rp16.000
62	DISCONTINUE SUB: 74117B63J00N000	•PACKING	1	-
63	74119-63J00-000 SUB: 74119B63J00N000	•PACKING, AIR INTAKE	1	Rp19.500
64	74129-63J00-000 SUB: 74129B63J00N000	•PACKING	1	Rp10.000
65	74165-63J00-000	•BUSH	1	-
66	74216-62JA0-000	•BRACKET	1	-	N/AIR CON
67	74240-62J00-000	•PLATE	1	-	N/AIR CON
68	95536-62JE0-000	•HARNESS, WIRING	1	-	W/AIR CON
69	95481-62J10-000	HOSE, DRAIN	1	-	W/AIR CON
70	95860-63J10-000	FILTER	1	-
71	08361-25063-000	NUT	5	-
72	09159-06081-000	NUT	1	Rp14.500
