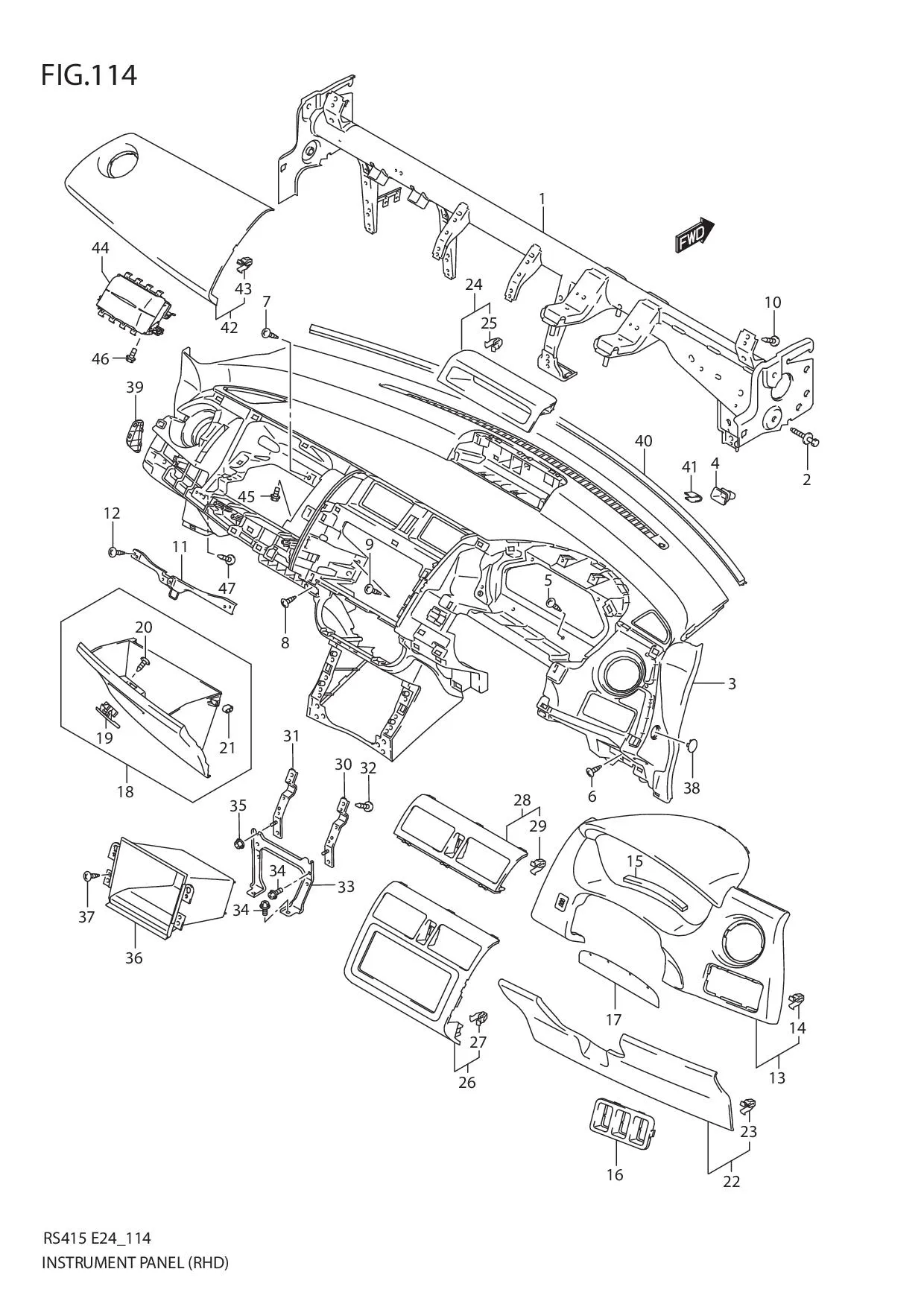

FIG.114 INSTRUMENT PANEL (RHD)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 73200-62J00-000	MEMBER, STEERING SUPPORT	1	-
2	73291-50G20-000 SUB: 73291-50G01-000	BOLT	4	Rp42.500
3	DISCONTINUE SUB: 73111B63J00NP4Z	PANEL, INSTRUMENT MAIN (GRAY)	1	-
4	73123-51K00-000 SUB: 73123-65J00-000	SOCKET, PIN	5	Rp43.000
5	03241-0512A-000 SUB: 03242-05123-000	SCREW, METER HOLE	2	Rp3.500
6	03241-0512A-000 SUB: 03242-05123-000	SCREW, DRIVER SIDE	2	Rp3.500
7	03241-0512A-000 SUB: 03242-05123-000	SCREW, AIR BAG HOLE	1	Rp3.500
8	03241-0512A-000 SUB: 03242-05123-000	SCREW, GLOVE BOX SIDE	2	Rp3.500
9	03241-0512A-000 SUB: 03242-05123-000	SCREW, CTR	2	Rp3.500
10	03541-0516A-000 SUB: 03541B05163N000	SCREW, UPPER	2	Rp3.500
11	DISCONTINUE SUB: 73250-62J00-000	REINF, GLOVE BOX UPPER	1	-
12	03541-0516A-000 SUB: 03541B05163N000	SCREW	3	Rp3.500
13	DISCONTINUE SUB: 73311-62J00-P4Z	PANEL, CLUSTER (GRAY)	1	-
14	09409-08326-000 SUB: 09409B08326N000	•CLIP	8	Rp8.000
15	73314-62J00-000	SEAL, INSTRUMENT PANEL CLUSTER	1	Rp34.000
16	DISCONTINUE SUB: 73312-62J00-P4Z	BEZEL, SWITCH (GRAY)	1	-
17	73313-80J00-000 SUB: 73313-63J00-000	BLIND, STRG COLUMN HOLE	1	Rp84.500
18	73410-63J02-P4Z SUB: 73410-63J00-P4Z	BOX, GLOVE (GRAY)	1	Rp1.257.500
19	73430-63J02-P4Z SUB: 73430-63J00-P4Z	•LOCK, GROVE BOX (GRAY)	1	Rp361.000
20-1	02142-0412B-000 SUB: 02142-04123-000	•SCREW	2	Rp3.500
20-2	03541-0412A-000 SUB: 03541-04123-000	•SCREW	2	Rp3.500	JSAEZC11S00100001% JS2ZC11S 65100001% JSAEZC21S00102096% JS2ZC21S 65100001%
21	73413M65D00-000	•CUSHION, GROVE BOX	2	Rp6.500
22	73811-62J00-P4Z	COVER, STRG COLUMN HOLE (GRAY)	1	Rp516.000
23	09409-08326-000 SUB: 09409B08326N000	•CLIP	6	Rp8.000
24	DISCONTINUE SUB: 73831-62J00-P4Z	GARNISH, DISPLAY (GRAY)	1	-
25	09409-08326-000 SUB: 09409B08326N000	•CLIP	4	Rp8.000
26	73821-63J10-P4Z	GARNISH, CTR (GRAY)	1	Rp434.500	N/TUNER
27	09409-08326-000 SUB: 09409B08326N000	•CLIP	4	Rp8.000	N/TUNER
28	DISCONTINUE SUB: 73821-63J00-P4Z	GARNISH, CTR (GRAY)	1	-	W/TUNER
29	09409-08326-000 SUB: 09409B08326N000	•CLIP	3	Rp8.000	W/TUNER
30	DISCONTINUE SUB: 73261-62J00-000	REINF, CTR LOWER RH	1	-
31	DISCONTINUE SUB: 73262-62J00-000	REINF, CTR LOWER LH	1	-
32	03541-0516A-000 SUB: 03541B05163N000	SCREW	2	Rp3.500
33	DISCONTINUE SUB: 73271-62J00-000	BRACKET, CTR LOWER	1	-
34	02162-0612B-000 SUB: 02162-06123-000	SCREW	4	Rp16.000
35	08316-1006A-000 SUB: 08316-10063L000	NUT	2	Rp2.000
36	DISCONTINUE SUB: 73840-63J00-P4Z	BOX, CTR LOWER (GRAY)	1	-
37	03541-0516A-000 SUB: 03541B05163N000	SCREW	4	Rp3.500
38	73871-73H00-P4Z SUB: 73871B73H00NP4Z	CAP, SIDE RH (GRAY)	1	Rp9.000
39	DISCONTINUE SUB: 73871-62J00-P4Z	CAP, SIDE LH (GRAY)	1	-
40	73121-65J11-000 SUB: 73121-59J00-000	SILENCER, TOP	1	Rp216.500
41	DISCONTINUE SUB: 56313B20E00N000	PAD	3	-
42	DISCONTINUE SUB: 73910-63J00-P4Z	DOOR, PASSENGER AIR BAG (GRAY)	1	-
43	09409-08326-000 SUB: 09409B08326N000	•CLIP	7	Rp8.000
44	DISCONTINUE SUB: 73920-63J00-000	HOUSING, PASSENGER AIR BAG	1	-
45	DISCONTINUE SUB: 09128-06073-000	BOLT (6X10)	2	-
46	01551-0816C-000 SUB: 01551-08163-000	BOLT	2	Rp13.500
47	03241-0512A-000 SUB: 03242-05123-000	SCREW	2	Rp3.500
