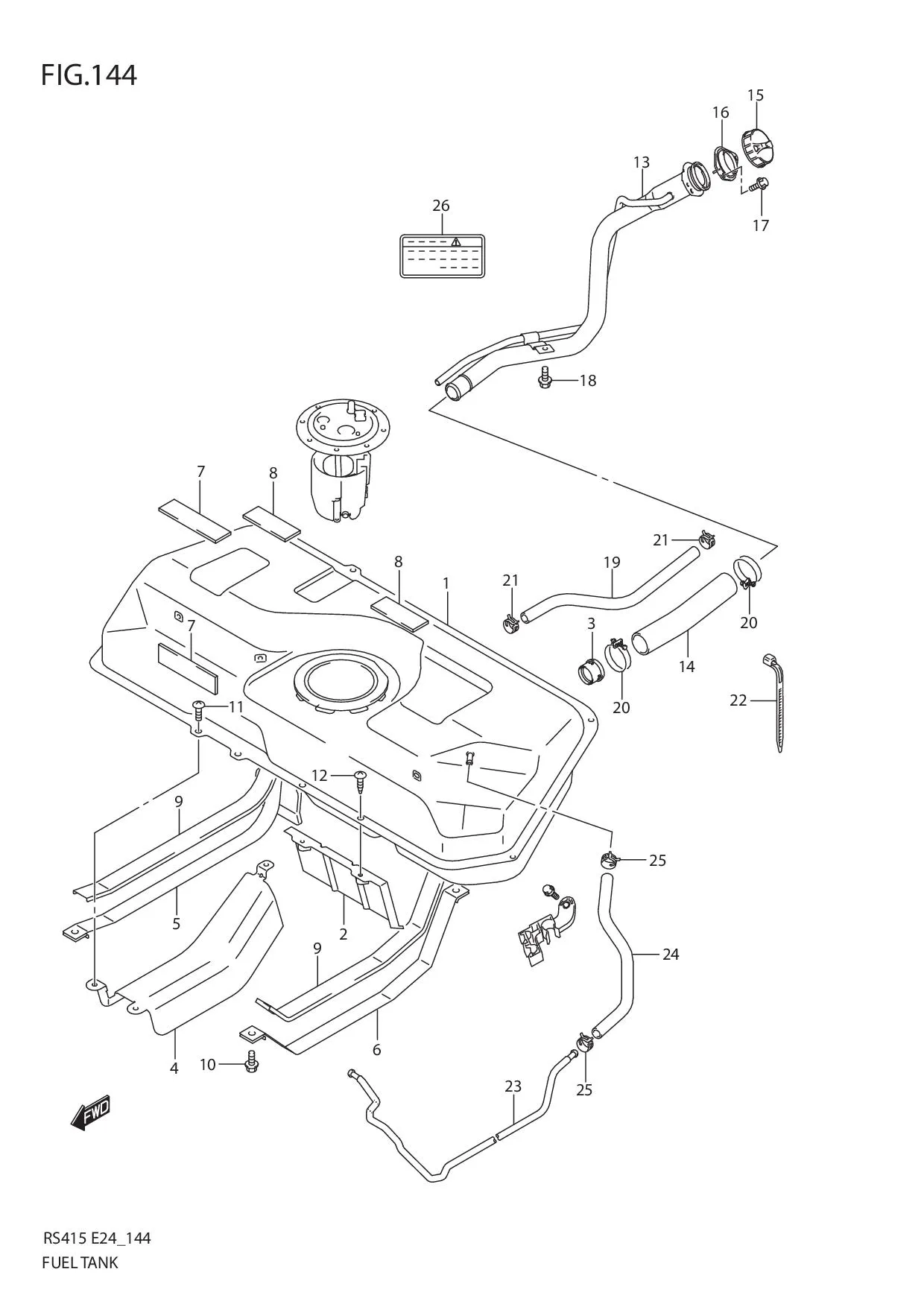

FIG.144 FUEL TANK

FIG.144 FUEL TANK
No No. Part Description Qty Price Per Pcs Remarks
1 89101-63J04-000
SUB: 89101-63J00-000		 TANK ASSY, FUEL 1 Rp5.971.500
2 89191M63J00-000 COVER, FUEL TANK 1 Rp36.500
3 89280-77A00-000 VALVE, FUEL TANK INLET 1 Rp107.000
4 DISCONTINUE
SUB: 89311-63J00-000		 PROTECTOR 1 -
5 89360-63J00-000 BELT, TANK FIXER RH 1 Rp762.500
6 89370-63J00-000 BELT, TANK FIXER LH 1 Rp634.500
7 DISCONTINUE
SUB: 89381-63J00-000		 PAD 4 -
8 DISCONTINUE
SUB: 89382-63J00-000		 PAD 4 -
9 89385M63J00-000 PAD 2 Rp27.500
10 DISCONTINUE
SUB: 09118-10052-000		 BOLT (10X30) 4 -
11 02142-0510A-000
SUB: 02142-05103-000		 SCREW 3 Rp4.000
12 03541-0616A-000
SUB: 03542-06163-000		 SCREW 2 Rp13.500
13 DISCONTINUE
SUB: 89201-63J11-000		 NECK ASSY, FUEL FILLER 1 -
14 DISCONTINUE
SUB: 89241-63J00-000		 HOSE, FUEL TANK FILLER 1 -
15-1 89260-65G10-000 CAP ASSY, FUEL FILLER 1 - E24,E30:GA
15-2 89260-50J00-000 CAP ASSY, FUEL FILLER 1 Rp233.000 E30:GL,E35,E43,E96
16 89285M58J00-000 PACKING, FUEL FILLER 1 Rp13.500
17 09116M05014-000 BOLT (5X20) 2 Rp5.500
18 DISCONTINUE
SUB: 09116-06173-000		 BOLT (6X16) 1 -
19 09355-11188-600 HOSE, FUEL TANK BREATHER 1 Rp92.000 L:600!320
20 09400M45L01-000
SUB: 09400M45311-000		 CLAMP 2 Rp32.500
21 09401M16L01-000
SUB: 09401-16406-000		 CLIP 2 Rp9.000
22 DISCONTINUE
SUB: 09407M19401-000		 CLAMP 1 -
23-1 DISCONTINUE
SUB: 89483-63J00-000		 PIPE, FUEL EVAPORATOR 1 - E24,E30,E35
23-2 89483-63J20-000 PIPE, FUEL EVAPORATOR 1 - E43,E96
24 09355-56128-600
SUB: 09355-54128-600		 HOSE, TANK TO EVAPORATOR 1 Rp94.000 L:600!340
25 09401-10409-000
SUB: 09401M11415-000		 CLIP 2 Rp7.500
26 DISCONTINUE
SUB: 79115-80G00-000		 LABEL, FUEL CAUTION 1 - E43

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
