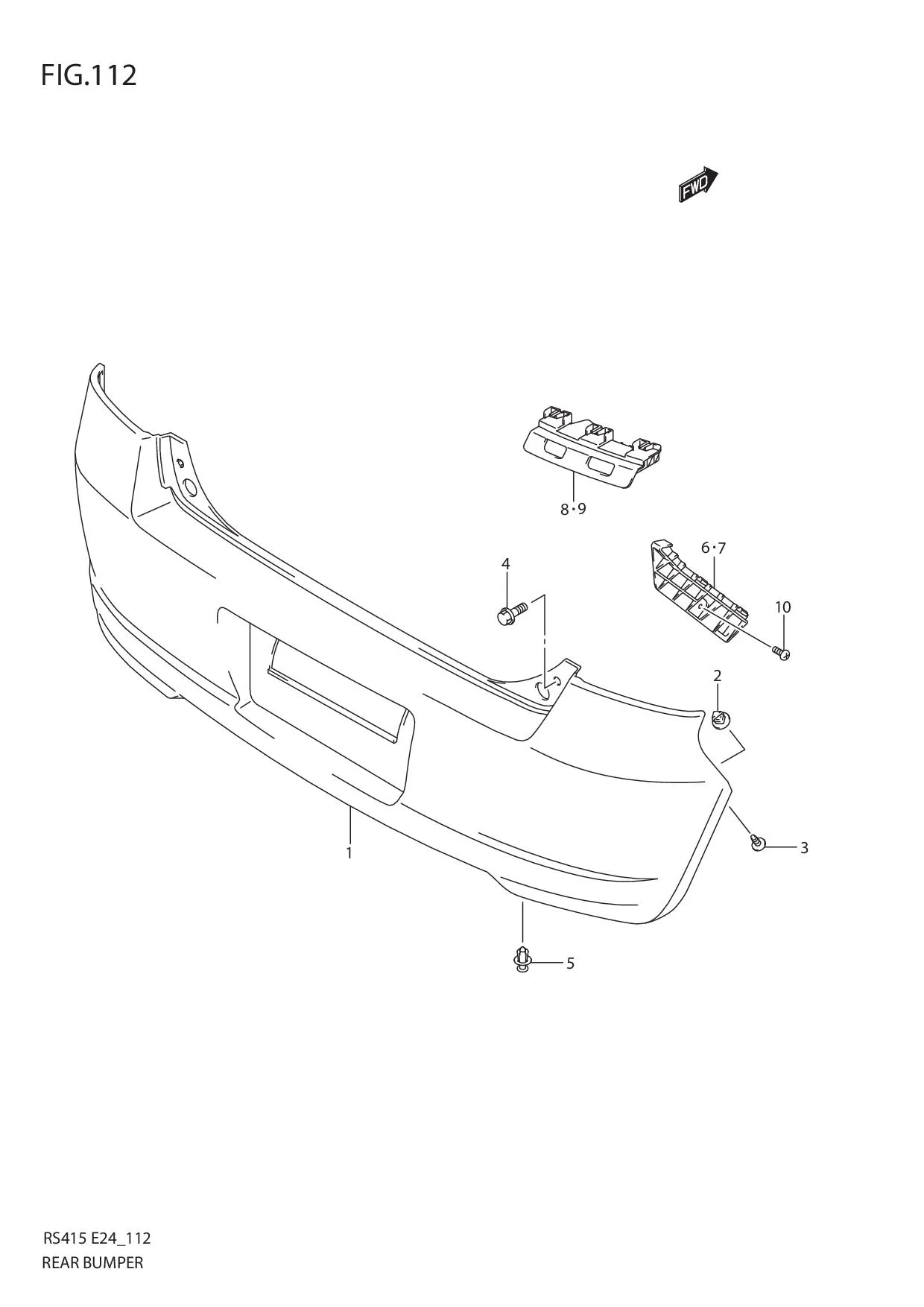

FIG.112 REAR BUMPER

FIG.112 REAR BUMPER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	71811-63J00-799	BUMPER, REAR (PRIMARY COAT)	1	Rp5.951.000	PAINT TO MATCH
2	71851M70F00-000 SUB: 09148M06007-000	NUT	2	Rp4.000
3	03241-0616C-000 SUB: 03242-06163-000	SCREW	2	Rp17.000
4	09103-06283-000 SUB: 09103-06240-000	BOLT (6X16)	2	Rp20.500
5	09409-08327-000	CLIP	4	Rp15.000
6	71821-63J00-000	HOLDER, RR BUMPER SIDE RH	1	Rp169.500
7	71822-63J00-000	HOLDER, RR BUMPER SIDE LH	1	Rp169.500
8	71831-63J00-000	HOLDER, RR LAMP RH	1	Rp218.500
9	DISCONTINUE SUB: 71832-63J00-000	HOLDER, RR LAMP LH	1	-
10	03511-0512B-000 SUB: 03512-05123-000	SCREW	2	Rp2.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
