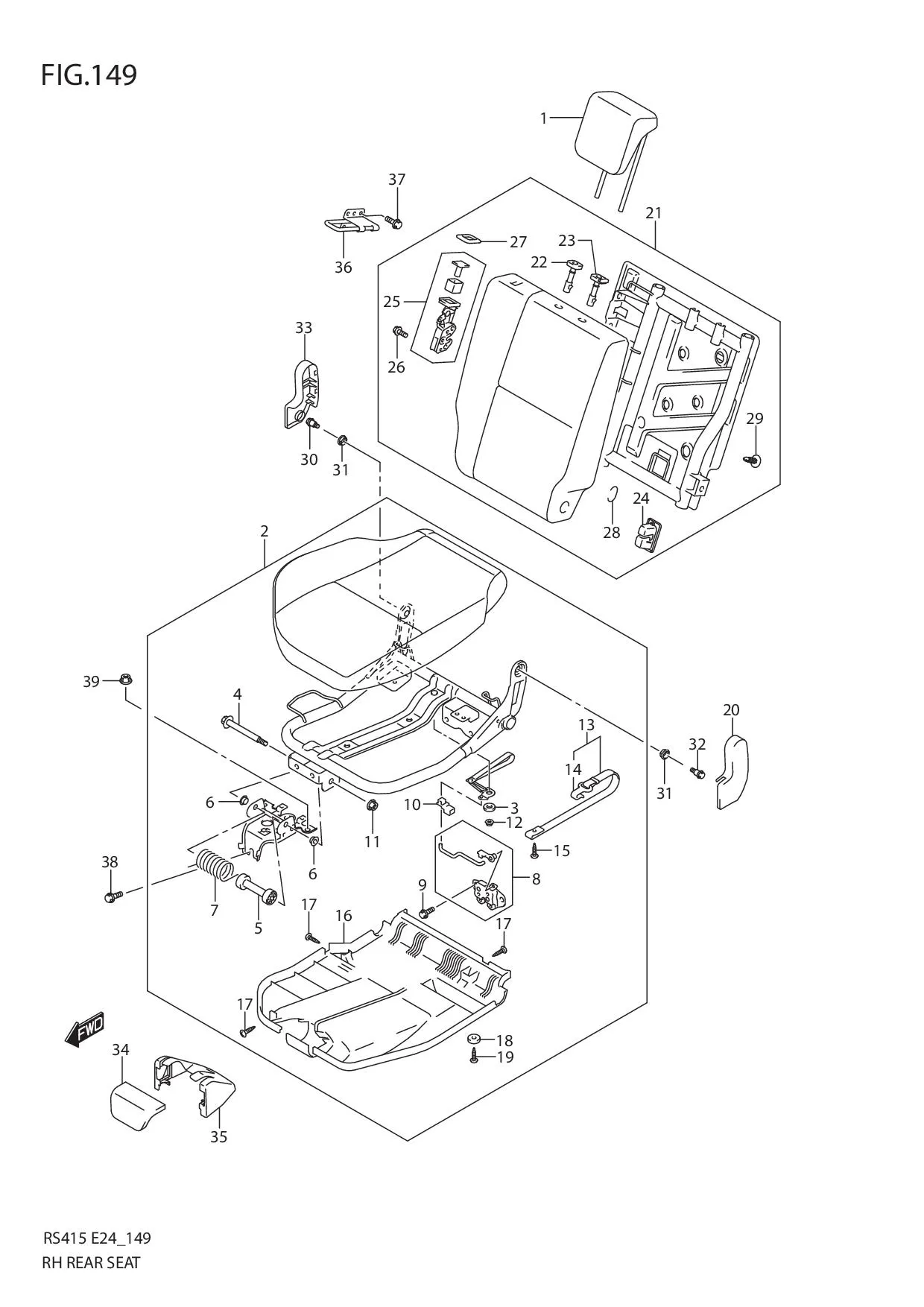

FIG.149 RH REAR SEAT

No	No. Part	Description	Qty	Price Per Pcs
1	DISCONTINUE SUB: 86401-63J20-S5K	HEADRESTRAINT ASSY (BLACK)	1	-
2	DISCONTINUE SUB: 87101-63J00-AWZ	CUSHION ASSY, REAR RH	1	-
3	DISCONTINUE SUB: 87134-63J00-000	•BUSH, LEVER	1	-
4	DISCONTINUE SUB: 87153-63J00-000	•BOLT, LEG	1	-
5	DISCONTINUE SUB: 87154-63J00-000	•COLLAR, SPRING	1	-
6	DISCONTINUE SUB: 87157-63J00-000	•BUSH, LEG	2	-
7	DISCONTINUE SUB: 87158-63J00-000	•SPRING, LEG	1	-
8	DISCONTINUE SUB: 87460-63J02-000	•LOCK ASSY, RH	1	-
9	09103M11002-000	•BOLT	2	Rp7.500
10	09403-04306-000	•CLAMP	1	Rp24.000
11	08316-1008A-000 SUB: 08316B1008AN000	•NUT	1	Rp3.500
12	08316-1008A-000 SUB: 08316B1008AN000	•NUT	1	Rp3.500
13	DISCONTINUE SUB: 87270-63J00-000	•BAND, REAR SEAT	1	-
14	DISCONTINUE SUB: 87273-63J00-000	••HOOK	1	-
15	03141-0616A-000 SUB: 03141-06163-000	•SCREW	1	Rp19.500
16	DISCONTINUE SUB: 87119-63J00-P4Z	•COVER, CUSHION RH (GRAY)	1	-
17	03241-0512A-000 SUB: 03242-05123-000	•SCREW	1	Rp3.500
18	DISCONTINUE SUB: 87159-65DA0-000	•CUSHION, REAR	1	-
19	03241-0516A-000 SUB: 03242-05163-000	•SCREW	1	Rp17.000
20	87171-63J02-P4Z SUB: 87171-63J01-P4Z	COVER, HINGE INNER (GRAY)	1	Rp83.000
21	DISCONTINUE SUB: 87301-63J20-AWZ	BACK ASSY, REAR RH	1	-
22	DISCONTINUE SUB: 85341-63J00-P4Z	•GUIDE, HEADRESTRAINT (GRAY)	3	-
23	DISCONTINUE SUB: 85840-63J00-P4Z	•GUIDE, HEADRESTRAINT (GRAY)	3	-
24	87225-53JB0-P4Z SUB: 87225-53JA0-P4Z	•COVER, TETHER ANCHOR	1	Rp87.500
25	DISCONTINUE SUB: 87480-63J01-P4Z	•LOCK ASSY, RH (GRAY)	1	-
26	01550-0820A-000 SUB: 01550-08203-000	•BOLT	2	Rp5.500
27	DISCONTINUE SUB: 87482-63J00-P4Z	•BEZEL, LOCK BUTTON (GRAY)	1	-
28	09387-19001-000 SUB: 09387B19001N000	•RING, TRIM	3	Rp9.000
29	09409-10302-P4Z	•CLIP (GRAY)	1	Rp19.500
30	DISCONTINUE SUB: 87333-63J00-000	BOLT	1	-
31	DISCONTINUE SUB: 87334-63J01-000	BUSH	2	-
32	DISCONTINUE SUB: 87333-63J00-000	BOLT	1	-
33	DISCONTINUE SUB: 87172-63J01-P4Z	COVER, HINGE OUTER (GRAY)	1	-
34	87491-63J00-P4Z	COVER, HINGE FRONT (GRAY)	1	Rp73.500
35	DISCONTINUE SUB: 87492-63J00-P4Z	COVER, HINGE REAR (GRAY)	1	-
36	DISCONTINUE SUB: 87870-63J01-000	STRIKER	1	-
37	01551-0820A-000 SUB: 01551-08203-000	BOLT	4	Rp17.500
38	01551-1025A-000 SUB: 01551-10253-000	BOLT	1	Rp29.000
39	08316-1010A-000 SUB: 08316-10103-000	NUT	2	Rp3.500
