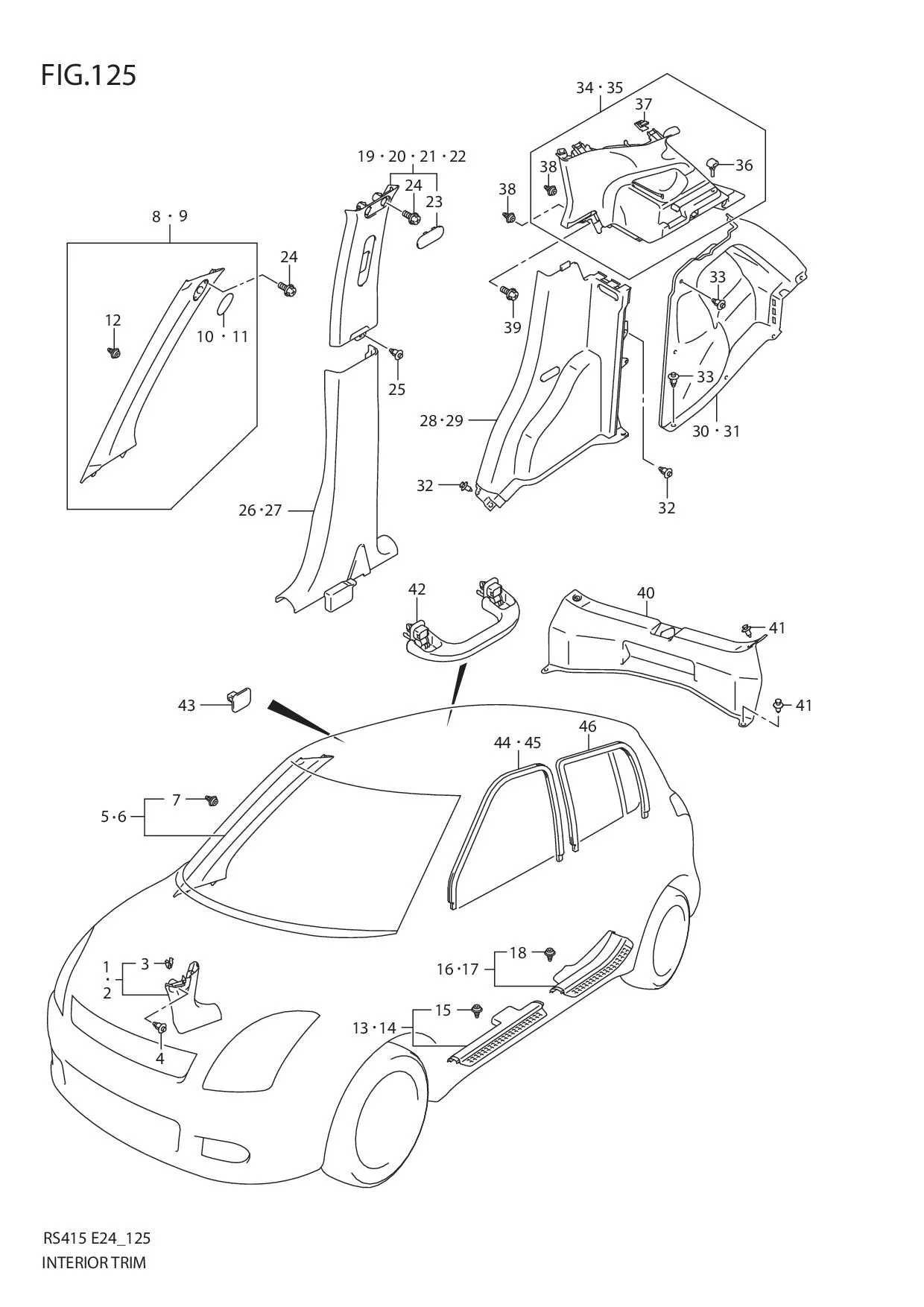

FIG.125 INTERIOR TRIM

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 76130-63J00-P4Z	TRIM, DASH SIDE RH (GRAY)	1	-
2	DISCONTINUE SUB: 76140-63J00-P4Z	TRIM, DASH SIDE LH (GRAY)	1	-
3	09409-10308-000 SUB: 09409B10308N000	•CLIP	2	Rp6.500
4	09409M07308-P4Z	CLIP (GRAY)	2	Rp7.500
5	76111-63J00-6GS	TRIM, FR PILLAR INNER RH (GRAY)	1	Rp439.500	N/SIDE AIR BAG
6	76121-63J00-6GS	TRIM, FR PILLAR INNER LH (GRAY)	1	Rp439.500	N/SIDE AIR BAG
7	09409-10314-000	•CLIP	4	Rp17.000
8	76111-63J11-6GS	TRIM, FR PILLAR RH (GRAY)	1	-	W/SIDE AIR BAG
9	76121-63J11-6GS	TRIM, FR PILLAR LH (GRAY)	1	-	W/SIDE AIR BAG
10	76112-63J11-6GS	CAP, RH (GRAY)	1	-	W/SIDE AIR BAG
11	76122-63J11-6GS	CAP, LH (GRAY)	1	-	W/SIDE AIR BAG
12	09409-10314-000	CLIP	2	Rp17.000	W/SIDE AIR BAG
13	76151-63J00-P4Z	SCUFF, SIDE SILL FR RH (GRAY)	1	Rp259.000
14	76161-63J00-P4Z	SCUFF, SIDE SILL FR LH (GRAY)	1	Rp259.000
15	09409-10327-000 SUB: 09409B10312N000	•CLIP	2	Rp5.000
16	76152-63J00-P4Z	SCUFF, SIDE SILL RR RH (GRAY)	1	Rp324.500
17	76162-63J00-P4Z	SCUFF, SIDE SILL RR LH (GRAY)	1	Rp244.000
18	09409-10327-000 SUB: 09409B10312N000	•CLIP	2	Rp5.000
19	DISCONTINUE SUB: 76210-63J00-6GS	TRIM, CTR PILLAR UPPER RH (GRAY)	1	-	N/SIDE AIR BAG
20	DISCONTINUE SUB: 76220-63J00-6GS	TRIM, CTR PILLAR UPPER LH (GRAY)	1	-	N/SIDE AIR BAG
21	76210-63J10-6GS	TRIM, CTR PILLAR UPPER RH (GRAY)	1	-	W/SIDE AIR BAG
22	76220-63J10-6GS	TRIM, CTR PILLAR UPPER LH (GRAY)	1	-	W/SIDE AIR BAG
23-1	76213-63J00-6GS	•CAP, CTR PILLAR TRIM (GRAY)	2	Rp74.500	N/SIDE AIR BAG
23-2	76213-63J10-6GS	•CAP, CTR PILLAR TRIM (GRAY)	2	-	W/SIDE AIR BAG
24-2	02162-0612B-000 SUB: 02162-06123-000	SCREW	6	Rp16.000	W/SIDE AIR BAG
24-1	02162-0612B-000 SUB: 02162-06123-000	SCREW	4	Rp16.000	N/SIDE AIR BAG
25	09409M07L02-5PK SUB: 09409M07308-5PK	CLIP (BLACK)	2	Rp7.500
26	DISCONTINUE SUB: 76231-63J00-P4Z	TRIM, CTR PILLAR LOWER RH (GRAY)	1	-
27	76241-63J10-P4Z SUB: 76241-63J00-P4Z	TRIM, CTR PILLAR LOWER LH (GRAY)	1	Rp701.000
28	DISCONTINUE SUB: 76170-63J00-P4Z	TRIM, QTR INNER LOWER FR RH (GRAY)	1	-
29	DISCONTINUE SUB: 76180-63J00-P4Z	TRIM, QTR INNER LOWER FR LH (GRAY)	1	-
30	DISCONTINUE SUB: 76191-63J00-R3F	TRIM, QTR INNER LOWER RR RH (BLACK)	1	-
31	DISCONTINUE SUB: 76192-63J00-R3F	TRIM, QTR INNER LOWER RR LH (BLACK)	1	-
32	09409M07308-P4Z	CLIP, FRONT (GRAY)	4	Rp7.500
33	09409M07308-P4Z	CLIP, REAR (GRAY)	10	Rp7.500
34	DISCONTINUE SUB: 76250-63J00-6GS	TRIM, QTR INNER UPPER RH (GRAY)	1	-
35	DISCONTINUE SUB: 76260-63J00-6GS	TRIM, QTR INNER UPPER LH (GRAY)	1	-
36	73461M54G00-000	•CUSHION, PARCEL SHELF	2	Rp5.500
37	09409-07335-000	•CLIP	4	Rp17.500
38	09409-10327-000 SUB: 09409B10312N000	•CLIP	6	Rp5.000
39	02162-0612B-000 SUB: 02162-06123-000	SCREW	4	Rp16.000
40	76271-63J00-P4Z	TRIM, TAIL END (GRAY)	1	Rp1.131.000
41	09409M07308-P4Z	CLIP (GRAY)	4	Rp7.500
42-1	76410-55G02-6GS	GRIP, ASSISTANT (GRAY)	3	Rp255.500	GL,N/SIDE AIR BAG
42-2	76410-55G02-6GS	GRIP, ASSISTANT (GRAY)	4	Rp255.500	GL,W/SIDE AIR BAG
43-1	76412-55G00-6GS	CAP, ROOF LINING (GRAY)	8	Rp31.000	GA
43-2	76412-55G00-6GS	CAP, ROOF LINING (GRAY)	2	Rp31.000	GL,N/SIDE AIR BAG
44	76291-63J01-000 SUB: 76291-63J00-000	TRIM, FR DOOR OPENING RH	1	Rp716.500
45	76292-63J01-000 SUB: 76292-63J00-000	TRIM, FR DOOR OPENING LH	1	Rp751.500
46	DISCONTINUE SUB: 76295-63J00-000	TRIM, RR DOOR OPENING	2	-
