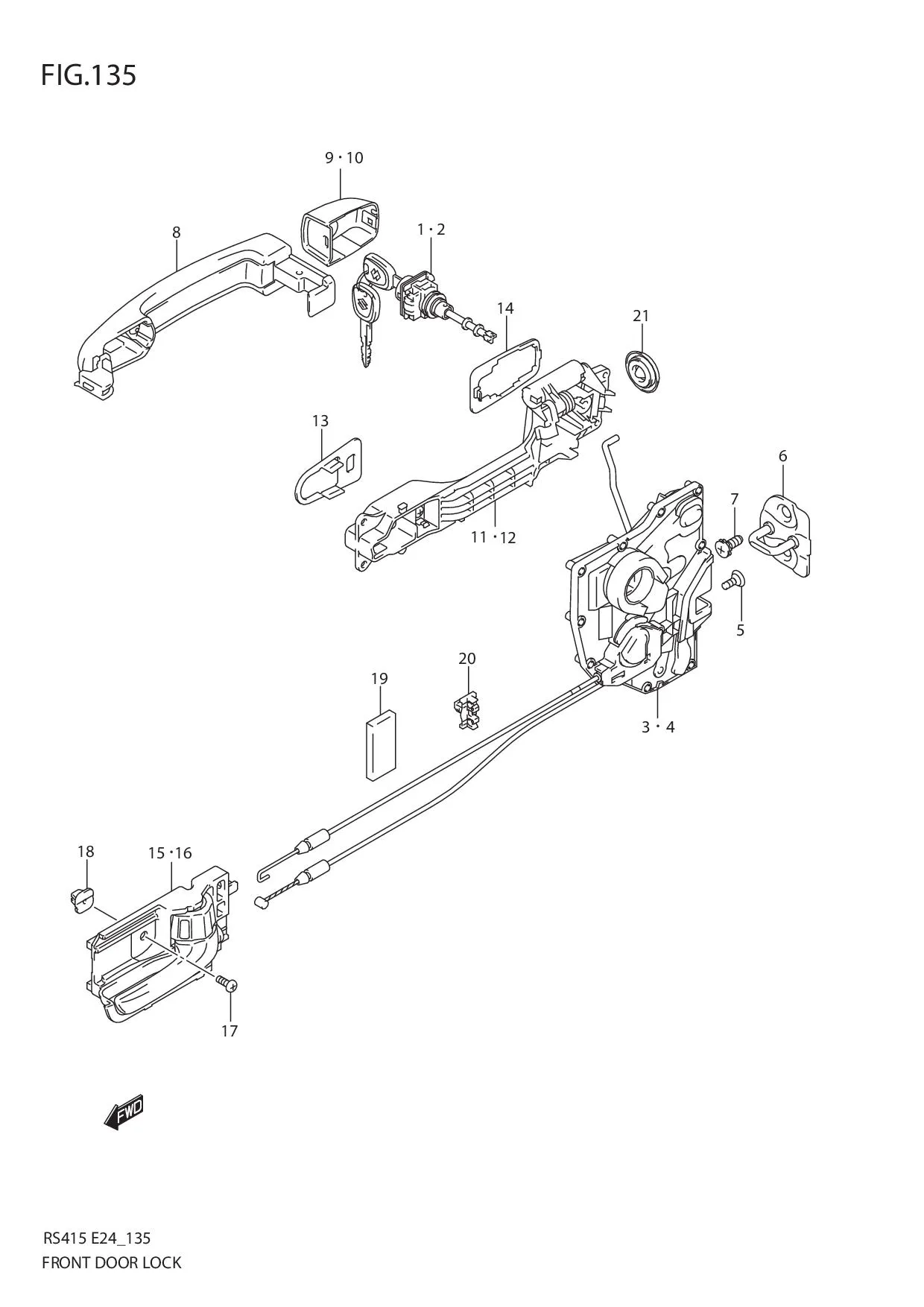

FIG.135 FRONT DOOR LOCK

FIG.135 FRONT DOOR LOCK
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 82270-63810-000		 CYLINDER, FRONT DOOR LOCK RH 1 -
2 DISCONTINUE
SUB: 82280-63820-000		 CYLINDER, FRONT DOOR LOCK LH 1 -
3-1 82201-63J20-000 LATCH ASSY, FRONT DOOR RH 1 - LHD
3-2 82201-63J15-000
SUB: 82201-63J10-000		 LATCH ASSY, FRONT DOOR RH 1 Rp1.973.000 RHD
4-1 82202-63J10-000 LATCH ASSY, FRONT DOOR LH 1 - LHD
4-2 82202-63J25-000
SUB: 82202-63J20-000		 LATCH ASSY, FRONT DOOR LH 1 Rp2.019.000 RHD
5 09137-06028-000 SCREW (6X18) 6 Rp18.500
6 82610-63J00-000 STRIKER, DOOR LATCH 2 Rp174.500
7 09137-08014-000
SUB: 09137-08006-000		 SCREW (8X18) 4 Rp23.000
8-7 82812-63J00-ZY4 HANDLE, DOOR OUT (GRAY) 2 Rp723.000 N/KEYLESS START:GL
8-17 DISCONTINUE
SUB: 82810-63811-Z7T		 HANDLE, DOOR OUT (WHITE) 2 - W/KEYLESS START
8-16 DISCONTINUE
SUB: 82810-63811-Z2S		 HANDLE, DOOR OUT (SILVER) 2 - W/KEYLESS START
8-15 82810-63811-ZY4 HANDLE, DOOR OUT (GRAY) 2 - W/KEYLESS START
8-14 82810-63811-ZK1 HANDLE, DOOR OUT (LAVENDER) 2 - W/KEYLESS START
8-13 82810-63811-ZJ3 HANDLE, DOOR OUT (BLACK) 2 Rp2.088.000 W/KEYLESS START
8-12 82810-63811-ZDF HANDLE, DOOR OUT (RED) 2 - W/KEYLESS START
8-11 82810-63811-ZCW HANDLE, DOOR OUT (BLUE) 2 - W/KEYLESS START
8-10 82810-63811-ZCV HANDLE, DOOR OUT (ORANGE) 2 - W/KEYLESS START
8-9 82812-63J00-Z7T HANDLE, DOOR OUT (WHITE) 2 Rp539.000 N/KEYLESS START:GL
8-8 82812-63J00-Z2S HANDLE, DOOR OUT (SILVER) 2 Rp476.000 N/KEYLESS START:GL
8-6 DISCONTINUE
SUB: 82812-63J00-ZK1		 HANDLE, DOOR OUT (LAVENDER) 2 - N/KEYLESS START:GL
8-5 82812-63J00-ZJ3 HANDLE, DOOR OUT (BLACK) 2 Rp475.000 N/KEYLESS START:GL
8-4 DISCONTINUE
SUB: 82812-63J00-ZDF		 HANDLE, DOOR OUT (RED) 2 - N/KEYLESS START:GL
8-3 82812-63J00-ZCW HANDLE, DOOR OUT (BLUE) 2 Rp539.000 N/KEYLESS START:GL
8-2 DISCONTINUE
SUB: 82812-63J00-ZCV		 HANDLE, DOOR OUT (ORANGE) 2 - N/KEYLESS START:GL
8-1 82812-63J00-5PK HANDLE, DOOR OUT (BLACK) 2 Rp465.000 N/KEYLESS START:GA
9-4 DISCONTINUE
SUB: 82813-63J10-ZDF		 CAP, DOOR OUT (RED) 1 - GL:LHD:RH,RHD:LH
9-9 DISCONTINUE
SUB: 82813-63J10-Z7T		 CAP, DOOR OUT (WHITE) 1 - GL:LHD:RH,RHD:LH
9-8 82813-63J10-Z2S CAP, DOOR OUT (SILVER) 1 Rp203.000 GL:LHD:RH,RHD:LH
9-7 DISCONTINUE
SUB: 82813-63J10-ZY4		 CAP, DOOR OUT (GRAY) 1 - GL:LHD:RH,RHD:LH
9-6 DISCONTINUE
SUB: 82813-63J10-ZK1		 CAP, DOOR OUT (LAVENDER) 1 - GL:LHD:RH,RHD:LH
9-3 82813-63J10-ZCW CAP, DOOR OUT (BLUE) 1 Rp230.500 GL:LHD:RH,RHD:LH
9-2 DISCONTINUE
SUB: 82813-63J10-ZCV		 CAP, DOOR OUT (ORANGE) 1 - GL:LHD:RH,RHD:LH
9-1 82813-63J10-5PK CAP, DOOR OUT (BLACK) 1 Rp155.500 GA:LHD:RH,RHD:LH
9-5 DISCONTINUE
SUB: 82813-63J10-ZJ3		 CAP, DOOR OUT (BLACK) 1 - GL:LHD:RH,RHD:LH
10-1 82813-63J00-5PK CAP, DOOR OUT (BLACK) 1 Rp130.500 GA:LHD:LH,RHD:RH
10-2 DISCONTINUE
SUB: 82813-63J00-ZCV		 CAP, DOOR OUT (ORANGE) 1 - GL:LHD:LH,RHD:RH
10-3 DISCONTINUE
SUB: 82813-63J00-ZCW		 CAP, DOOR OUT (BLUE) 1 - GL:LHD:LH,RHD:RH
10-4 82813-63J00-ZDF CAP, DOOR OUT (RED) 1 Rp264.500 GL:LHD:LH,RHD:RH
10-5 82813-63J00-ZJ3 CAP, DOOR OUT (BLACK) 1 Rp199.500 GL:LHD:LH,RHD:RH
10-6 DISCONTINUE
SUB: 82813-63J00-ZK1		 CAP, DOOR OUT (LAVENDER) 1 - GL:LHD:LH,RHD:RH
10-7 82813-63J00-ZY4 CAP, DOOR OUT (GRAY) 1 Rp278.000 GL:LHD:LH,RHD:RH
10-8 82813-63J00-Z2S CAP, DOOR OUT (SILVER) 1 Rp199.500 GL:LHD:LH,RHD:RH
10-9 DISCONTINUE
SUB: 82813-63J00-Z7T		 CAP, DOOR OUT (WHITE) 1 - GL:LHD:LH,RHD:RH
11-2 82811-63J10-000 FRAME, DOOR OUT RH 1 Rp408.000 W/KEYLESS START
11-1 82811-63J00-000 FRAME, DOOR OUT RH 1 Rp452.500 N/KEYLESS START
12-1 82821-63J00-000 FRAME, DOOR OUT LH 1 Rp452.500 N/KEYLESS START
12-2 82821-63J10-000 FRAME, DOOR OUT LH 1 Rp408.000 W/KEYLESS START
13 82814-63J00-000 PAD, DOOR OUT 2 Rp46.500
14 82815-63J00-000 CUSHION, SDIDE DOOR OUT 2 Rp48.500
15-1 83110-63J01-P4Z
SUB: 83110-63J00-P4Z		 HANDLE, DOOR INSIDE RH (GRAY) 1 Rp315.500 GA
15-2 DISCONTINUE
SUB: 83110-63J20-FC6		 HANDLE, DOOR INSIDE RH 1 - GL
16-1 83130-63J01-P4Z
SUB: 83130-63J00-P4Z		 HANDLE, DOOR INSIDE LH (GRAY) 1 Rp315.500 GA
16-2 DISCONTINUE
SUB: 83130-63J20-FC6		 HANDLE, DOOR INSIDE LH 1 - GL
17 09132-05058-000
SUB: 09132-05051-000		 SCREW (5~12) 2 Rp14.000
18 09148-05031-000 NUT 2 Rp18.000
19 77591M75000-000 PAD 2 Rp7.000
20 83271M50E00-000 CLIP 2 Rp6.500
21 09250-25007-000 PLUG, HANDLE HOLE (OD:33.5) 2 Rp10.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
