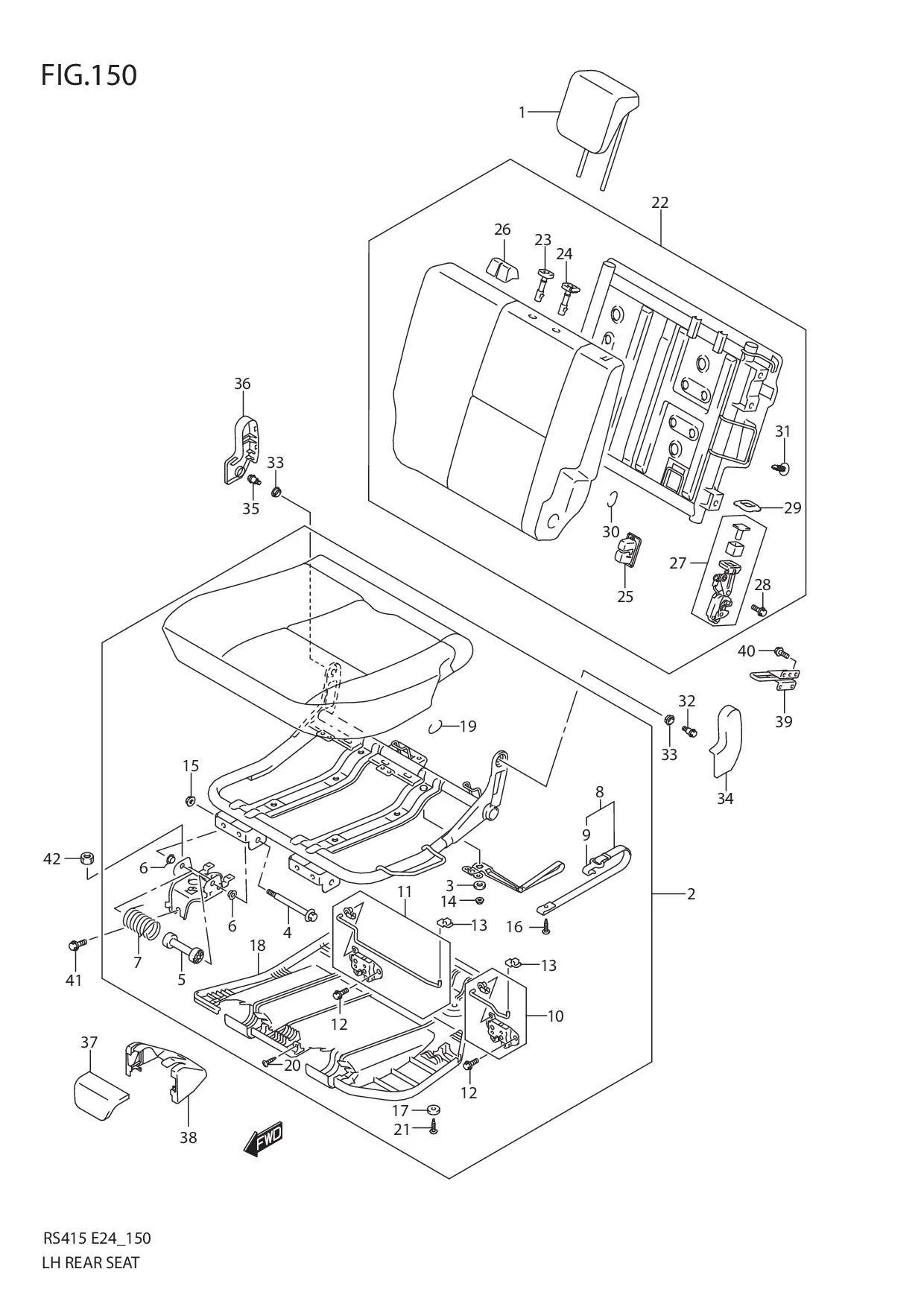

FIG.150 LH REAR SEAT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 86401-63J20-S5K	HEADRESTRAINT ASSY (BLACK)	2	-
2-1	87102-63J10-AWZ	CUSHION ASSY, REAR LH	1	-	E24
2-2	DISCONTINUE SUB: 87102-63J00-AWZ	CUSHION ASSY, REAR LH	1	-	E30,E35,E43,E96
3	DISCONTINUE SUB: 87134-63J00-000	•BUSH, LEVER	1	-
4	DISCONTINUE SUB: 87153-63J00-000	•BOLT, LEG	2	-
5	DISCONTINUE SUB: 87154-63J00-000	•COLLAR, SPRING	2	-
6	DISCONTINUE SUB: 87157-63J00-000	•BUSH, LEG	4	-
7	DISCONTINUE SUB: 87658-63J00-000	•SPRING	2	-
8	DISCONTINUE SUB: 87270-63J00-000	•BAND, REAR SEAT	1	-
9	DISCONTINUE SUB: 87273-63J00-000	••HOOK	1	-
10	DISCONTINUE SUB: 87960-63J02-000	•LOCK ASSY, LH	1	-
11	DISCONTINUE SUB: 87960-63J12-000	•LOCK ASSY, LH	1	-
12	09103M11002-000	•BOLT	4	Rp7.500
13	09403-04306-000	•CLAMP	2	Rp24.000
14	08316-1008A-000 SUB: 08316B1008AN000	•NUT	2	Rp3.500
15	08316-1008A-000 SUB: 08316B1008AN000	•NUT	2	Rp3.500
16	03141-0616A-000 SUB: 03141-06163-000	•SCREW	1	Rp19.500
17	DISCONTINUE SUB: 87159-65DA0-000	•CUSHION, REAR	1	-
18	DISCONTINUE SUB: 87619-63J00-P4Z	•COVER, CUSHION LH (GRAY)	1	-
19	09387-19001-000 SUB: 09387B19001N000	•RING, TRIM	6	Rp9.000
20	03242-0510B-000 SUB: 03242-05103-000	•SCREW	4	Rp18.000
21	03241-0516A-000 SUB: 03242-05163-000	•SCREW	1	Rp17.000
22-2	DISCONTINUE SUB: 87302-63J20-AWZ	BACK ASSY, REAR LH	1	-	E30,E35,E43,E96
22-1	87302-63J40-AWZ	BACK ASSY, REAR LH	1	-	E24
23	DISCONTINUE SUB: 85341-63J00-P4Z	•GUIDE, HEADRESTRAINT (GRAY)	2	-
24	DISCONTINUE SUB: 85840-63J00-P4Z	•GUIDE, HEADRESTRAINT (GRAY)	2	-
25	87225-53JB0-P4Z SUB: 87225-53JA0-P4Z	•COVER, TETHER ANCHOR (GRAY)	2	Rp87.500
26	DISCONTINUE SUB: 87227-63J00-P4Z	•COVER, SHOULDER ANCHOR (GRAY)	1	-
27-1	87980-63J11-P4Z	•LOCK ASSY, LH (GRAY)	1	-
27-2	DISCONTINUE SUB: 87980-63J01-P4Z	•LOCK ASSY, LH (GRAY)	1	-
28-1	09103M11002-000	•BOLT	2	Rp7.500
28-2	01550-0820A-000 SUB: 01550-08203-000	•BOLT	2	Rp5.500
29	DISCONTINUE SUB: 87482-63J00-P4Z	•BEZEL, LOCK BUTTON (GRAY)	1	-
30	09387-19001-000 SUB: 09387B19001N000	•RING, TRIM	3	Rp9.000
31	09409-10302-P4Z	•CLIP (GRAY)	1	Rp19.500
32	DISCONTINUE SUB: 87333-63J00-000	BOLT	1	-
33	DISCONTINUE SUB: 87334-63J01-000	BUSH	2	-
34	DISCONTINUE SUB: 87672-63J01-P4Z	COVER, HINGE OUTER (GRAY)	1	-
35	87833-63J00-000	BOLT	1	-
36	DISCONTINUE SUB: 87671-63J01-P4Z	COVER, HINGE INNER (GRAY)	1	-
37	87491-63J00-P4Z	COVER, HINGE REAR (GRAY)	2	Rp73.500
38	DISCONTINUE SUB: 87992-63J00-P4Z	COVER, HINGE REAR (GRAY)	2	-
39	DISCONTINUE SUB: 87870-63J11-000	STRIKER	1	-
40	01551-0820A-000 SUB: 01551-08203-000	BOLT	4	Rp17.500
41	01551-1025A-000 SUB: 01551-10253-000	BOLT	2	Rp29.000
42	08316-1010A-000 SUB: 08316-10103-000	NUT	2	Rp3.500
