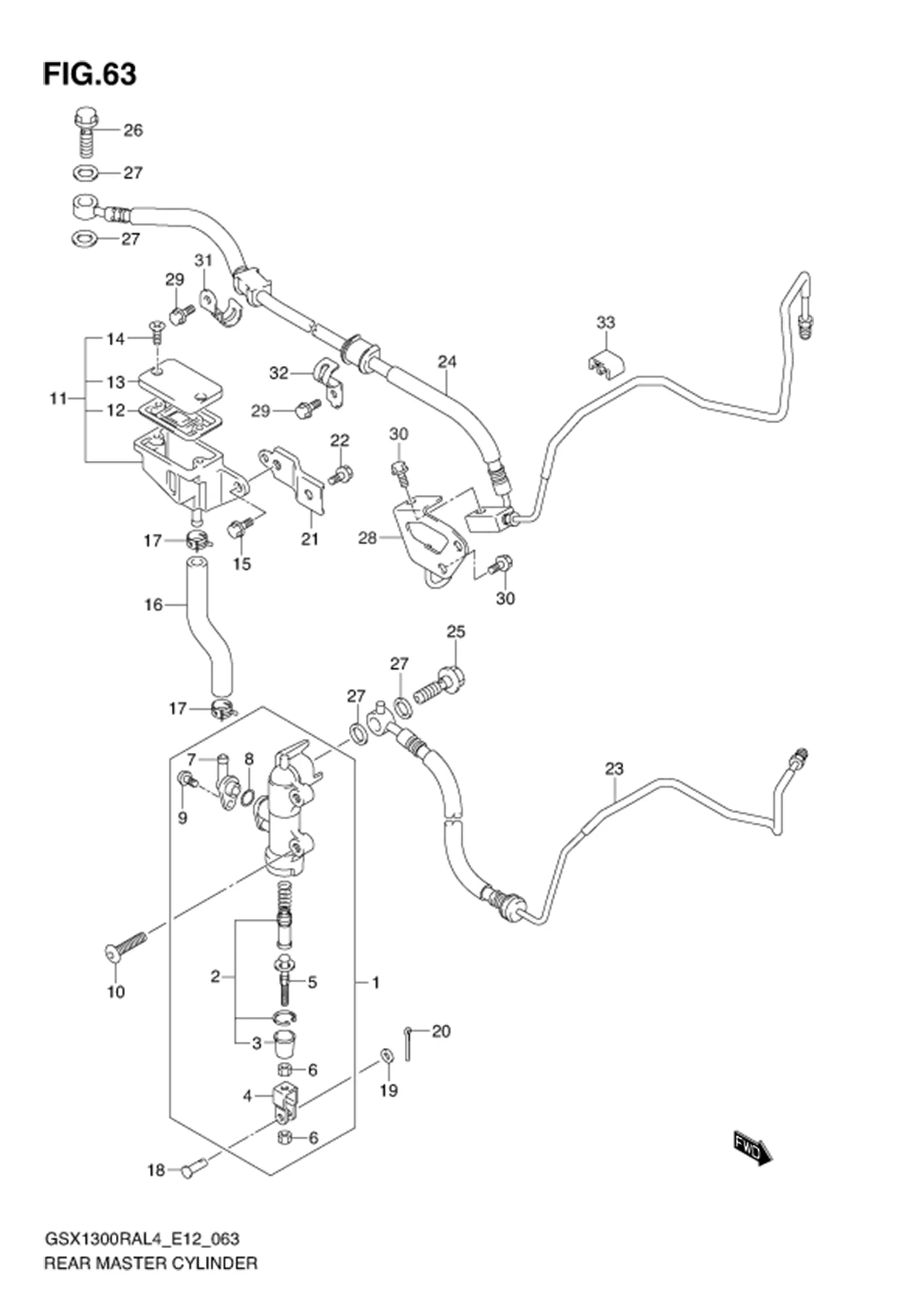

FIG.63 REAR MASTER CYLINDER

FIG.63 REAR MASTER CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 69600-15H00-000 CYLINDER ASSY, REAR MASTER 1 Rp1.885.000
2 69600-04821-000
SUB: 69600-04820-000		 ?PISTON / CAP SET 1 Rp343.500
3 69691-00A00-000 ??BOOT 1 Rp13.500
4 69692-27A30-000 ?YOKE 1 Rp43.000
5 69670-27A30-000 ?ROD, PUSH 1 Rp139.500
6 69693-05A00-000 ?NUT 2 Rp5.500
7 69672-05A00-000 ?CONNECTOR 1 Rp43.500
8 69686-34200-000 ?O RING 1 Rp8.000
9 02112-7412A-000 ?SCREW 1 Rp14.000
10 DISCONTINUE
SUB: 09139-06028-000		 SCREW (6X20) 2 -
11 DISCONTINUE
SUB: 69740-01D02-000		 TANK ASSY, RESERVOIR 1 -
12 DISCONTINUE
SUB: 59667-04700-000		 ?DIAPHRAGM 1 -
13 DISCONTINUE
SUB: 59669-05D00-000		 ?CAP 1 -
14 DISCONTINUE
SUB: 69689-04A00-000		 ?SCREW 2 -
15 01547-0610A-000
SUB: 01547-0612A-000		 BOLT 1 Rp3.000
16 69731-24F00-000 HOSE, RR RESERVOIR TANK 1 Rp111.000
17 09401-13417-000 CLIP 2 Rp15.500
18 09200-06037-000
SUB: 09200-06068-000		 PIN (6X18.2) 1 Rp3.500
19 08322-0106A-000 WASHER 1 Rp2.500
20 04111-2015A-000 PIN 1 Rp4.500
21 69750-15H00-000 BRACKET, RESERVOIR TANK 1 Rp71.500
22 01550-0612A-000 BOLT 1 Rp3.500
23 69200-15H00-000 HOSE ASSY, REAR BRAKE NO.1 1 Rp483.000
24 69400-15H00-000 HOSE ASSY, REAR BRAKE NO.2 1 Rp563.500
25 09360-10061-000 UNION 1 Rp36.500
26 09360-10062-000 UNION 1 Rp13.000
27 09161-10009-000 WASHER (10X15X1.5) 4 Rp12.500
28 69260-15H00-000 CLAMP, REAR BRAKE HOSE 1 Rp92.500
29 01547-0610A-000
SUB: 01547-0612A-000		 BOLT 2 Rp3.000
30 01547-0616A-000 BOLT 3 Rp6.500
31 69268-15H00-000 CLAMP, REAR BRAKE HOSE 1 Rp73.500
32 69275-15H00-000 CLAMP, REAR BRAKE HOSE NO.1 1 Rp45.500
33 09403-06324-000 CLAMP 1 Rp20.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
