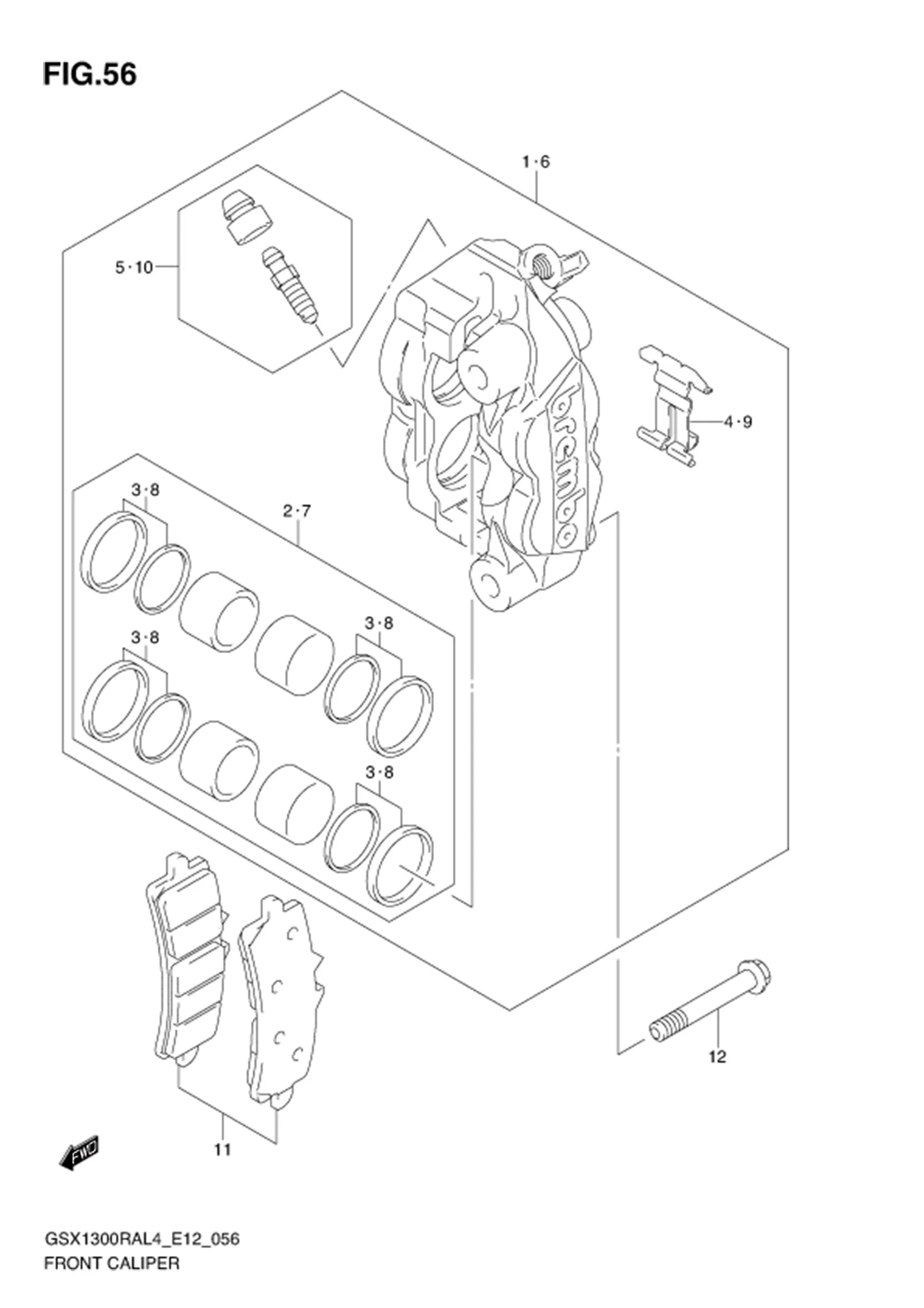

FIG.56 FRONT CALIPER

FIG.56 FRONT CALIPER
No No. Part Description Qty Price Per Pcs Remarks
1 59100-14J10-999 CALIPER ASSY, FRONT RH 1 Rp4.146.000
2 59100-14810-000 ?PISTON SET 1 Rp673.500
3 59100-14820-000 ??SEAL SET, PISTON 1 Rp427.000
4 59151-14J00-000 ?SPRING, PAD 1 Rp159.500
5 59100-14840-000 ?BLEEDER SET 1 Rp166.000
6 59300-14J10-999 CALIPER ASSY, FRONT LH 1 Rp5.300.000
7 59100-14810-000 ?PISTON SET 1 Rp673.500
8 59100-14820-000 ??SEAL SET, PISTON 1 Rp427.000
9 59151-14J00-000 ?SPRING, PAD 1 Rp159.500
10 59100-14840-000 ?BLEEDER SET 1 Rp166.000
11 59100-14860-000 PAD & SHIM SET 2 Rp990.000
12 09103-10450-000 BOLT (10X70) 4 Rp34.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
