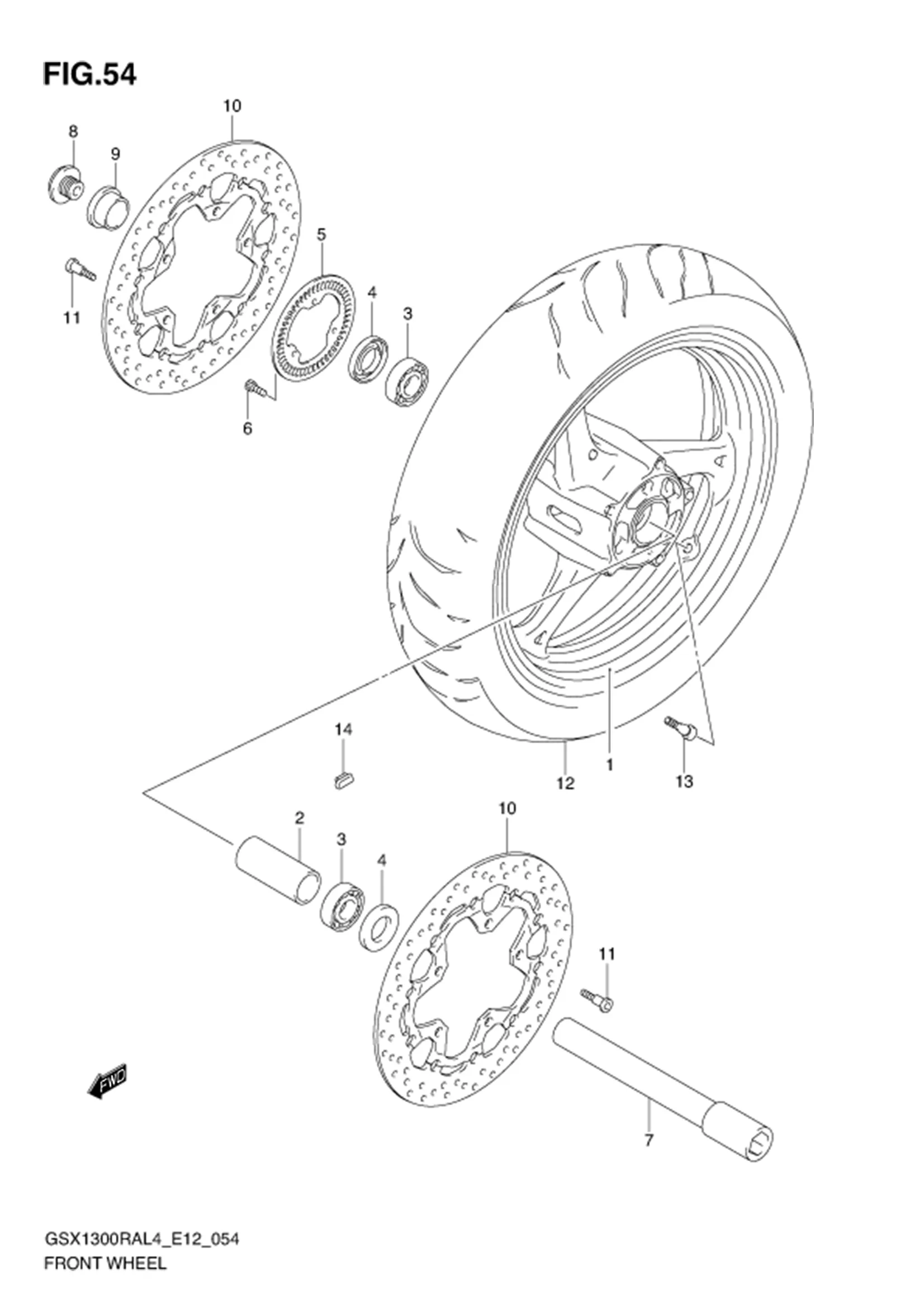

FIG.54 FRONT WHEEL

FIG.54 FRONT WHEEL
No No. Part Description Qty Price Per Pcs Remarks
1 54111-15H20-019 WHEEL, FRONT (17M/CXMT3.50) (BLACK) 1 Rp6.709.000
2 54731-33E20-000 SPACER, HUB BEARING 1 Rp279.500
3 09262-25167-000 BEARING (25X52X15) 2 Rp175.500
4 DISCONTINUE
SUB: 09285-32004-000		 OIL SEAL (32X52X7) 2 -
5 54162-27G00-000 RING, SPEED SENSOR FR (50T) 1 Rp700.000
6 07130-0512A-000 BOLT 3 Rp4.000
7 54711-15H00-000 AXLE, FRONT 1 Rp1.036.500
8 54712-41G10-000 BOLT, FRONT AXLE 1 Rp126.500
9 54751-41G10-000 SPACER, FRONT AXLE, RH 1 Rp142.000
10 59210-15H10-000 DISC, FRONT BRAKE 2 Rp1.992.000
11 09106-08160-000 BOLT (8X21) 10 Rp26.500
12 55110-24F60-000 TIRE, FRONT (120/70ZR17M/C(58W)) 1 Rp3.060.000
13 43130-24A00-000 VALVE ASSY, WHEEL RIM (TR412) 1 Rp50.500
14-1 55411-22H00-000 BALANCER, WHEEL NO.1 (10G) 0 Rp46.000
14-2 55412-22H00-000 BALANCER, WHEEL NO.2 (20G) 0 Rp55.000
14-3 55413-22H00-000 BALANCER, WHEEL NO.3 (30G) 0 Rp62.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
