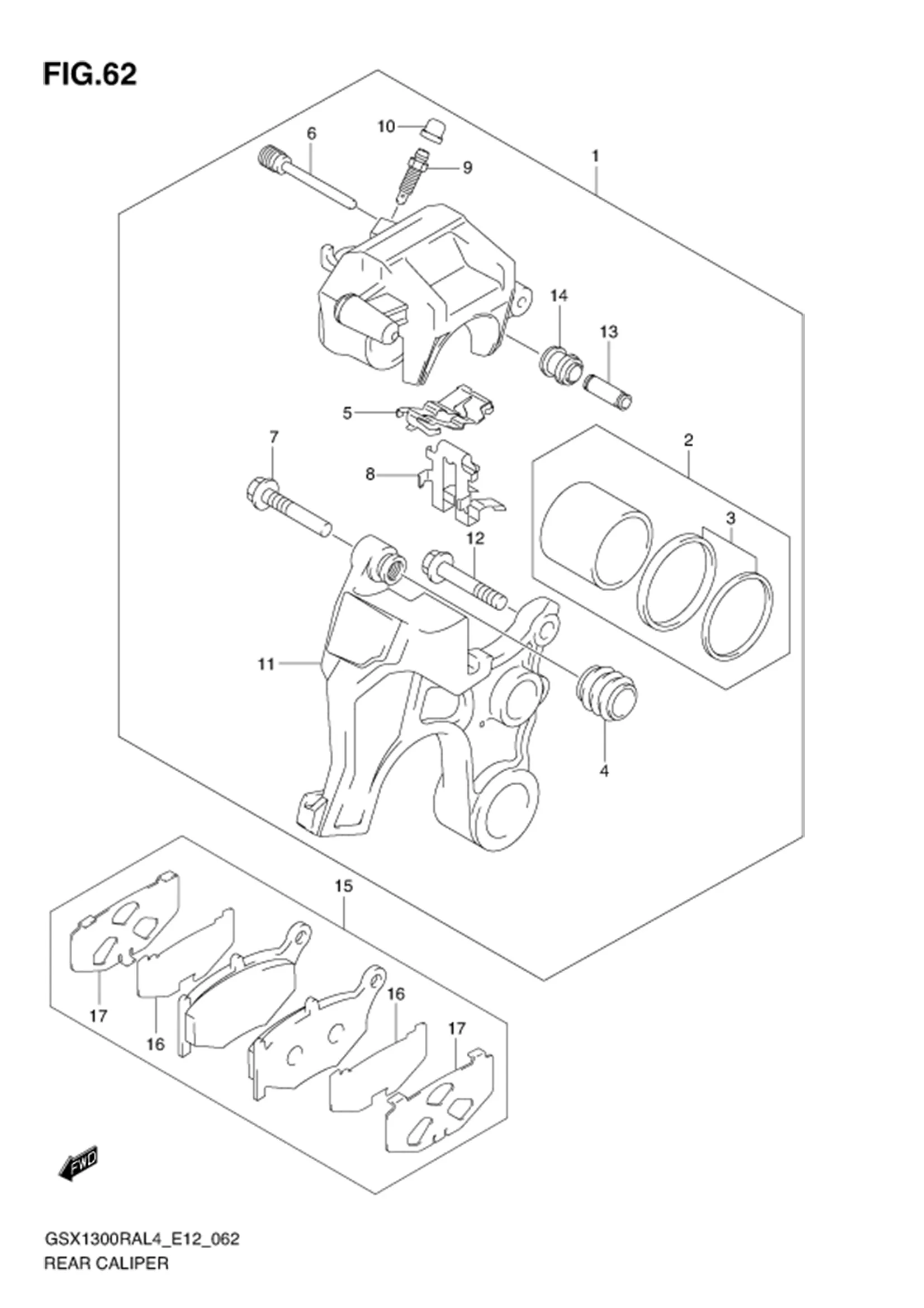

FIG.62 REAR CALIPER

FIG.62 REAR CALIPER
No No. Part Description Qty Price Per Pcs Remarks
1 69100-15H31-999 CALIPER ASSY, REAR 1 Rp2.853.000
2 69100-44890-000 ?PISTON SET 1 Rp342.000
3 69102-05880-000 ??SEAL SET, PISTON 1 Rp158.000
4 59112-44B00-000 ?BOOT, AXLE 1 Rp64.500
5 69115-44G00-000 ?SPRING, PAD 1 Rp100.500
6 59141-40F00-000 ?PIN, PAD 1 Rp261.500
7 69105-44G00-000 ?PIN, BOLT 1 Rp96.500
8 69116-44G00-000 ?RETAINER 1 Rp71.000
9 59121-18410-000 ?BLEEDER 1 Rp49.500
10 DISCONTINUE
SUB: 55156-66310-000		 ?CAP, BLEEDER PLUG 1 -
11 69150-15H31-000 ?BRACKET 1 Rp1.757.500
12 69182-44G00-000 ?BOLT 1 Rp83.500
13 69185-44G00-000 ?SLEEVE 1 Rp118.500
14 69186-44G00-000 ?BOOT, SLEEVE 1 Rp86.500
15 69100-15850-000 PAD SET 1 Rp867.000
16 69132-44G10-000 ?INSULATOR 2 Rp112.000
17 69133-44G00-000 ?SHIM 2 Rp56.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
