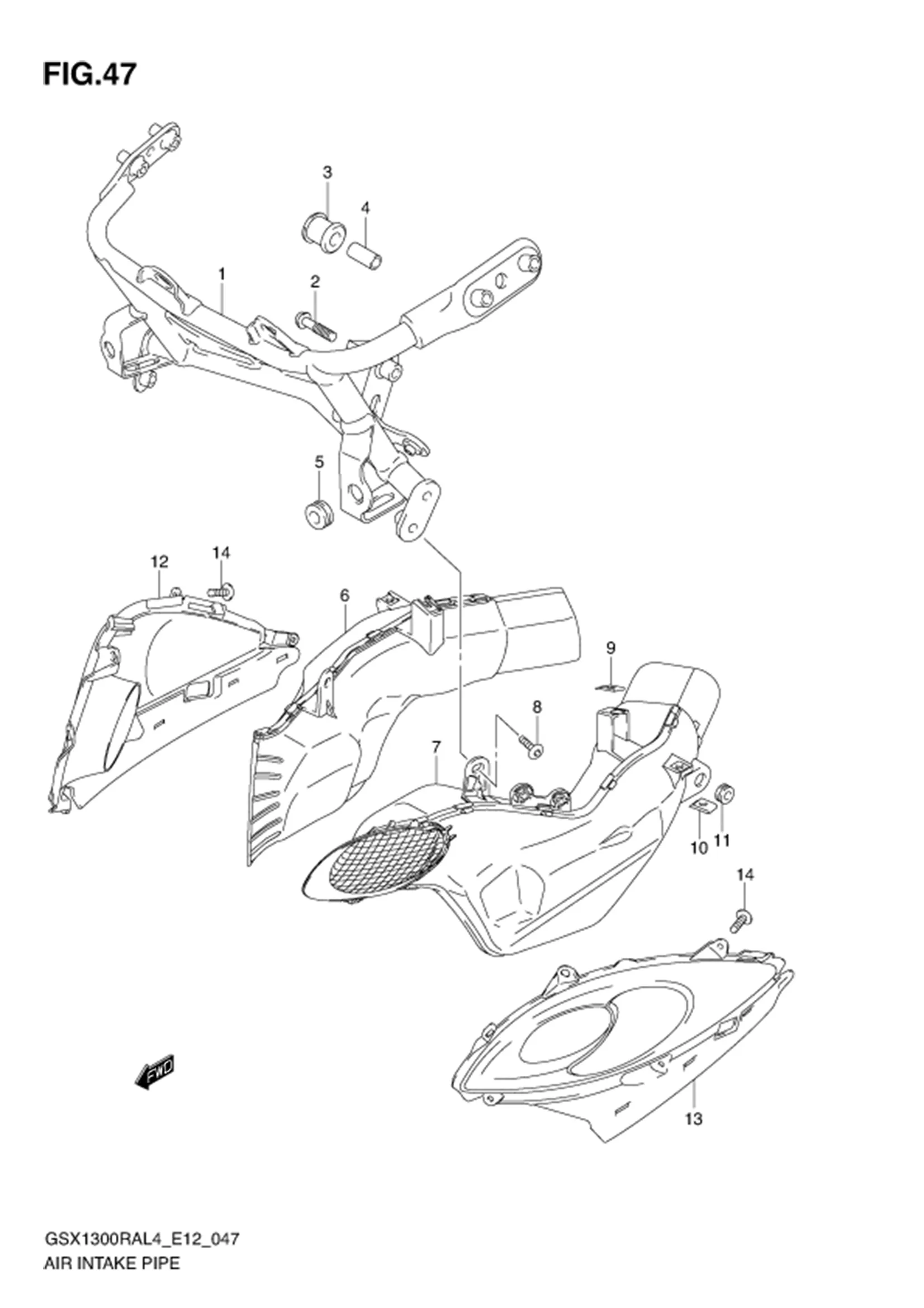

FIG.47 AIR INTAKE PIPE

FIG.47 AIR INTAKE PIPE
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 94510-15H00-000		 BRACE, COWLING 1 -
2 09103-08367-000 BOLT (8X40) 2 Rp25.500
3 94541-41C00-000 CUSHION, UPPER 1 Rp39.500
4 09180-08215-000 SPACER (8.6X12.2X26.5) 1 Rp31.000
5 09320-08028-000 CUSHION 2 Rp11.500
6 94420-15H01-000 PIPE, INTAKE RH 1 Rp834.000
7 94430-15H01-000 PIPE, INTAKE LH 1 Rp834.000
8 94423-15H00-000 SCREW 2 Rp37.500
9 94484-24F00-000 NUT, METER PANEL 2 Rp29.000
10 09148-05038-000 NUT 2 Rp4.000
11 09320-08028-000 CUSHION 2 Rp11.500
12-1 94671-15H00-YKY COVER, INTAKE RH (BLUE) 1 Rp1.976.500 FOR AJP
12-2 94671-15H00-YVZ COVER, INTAKE RH (RED) 1 Rp1.976.500 FOR AGS
12-3 94671-15H00-YVB COVER, INTAKE RH (BLACK) 1 Rp1.976.500 FOR AA3
13-1 94681-15H00-YKY COVER, INTAKE LH (BLUE) 1 Rp1.976.500 FOR AJP
13-2 94681-15H00-YVZ COVER, INTAKE LH (RED) 1 Rp1.976.500 FOR AGS
13-3 94681-15H00-YVB COVER, INTAKE LH (BLACK) 1 Rp1.976.500 FOR AA3
14 09132-05053-000 SCREW (5X16) 8 Rp14.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
