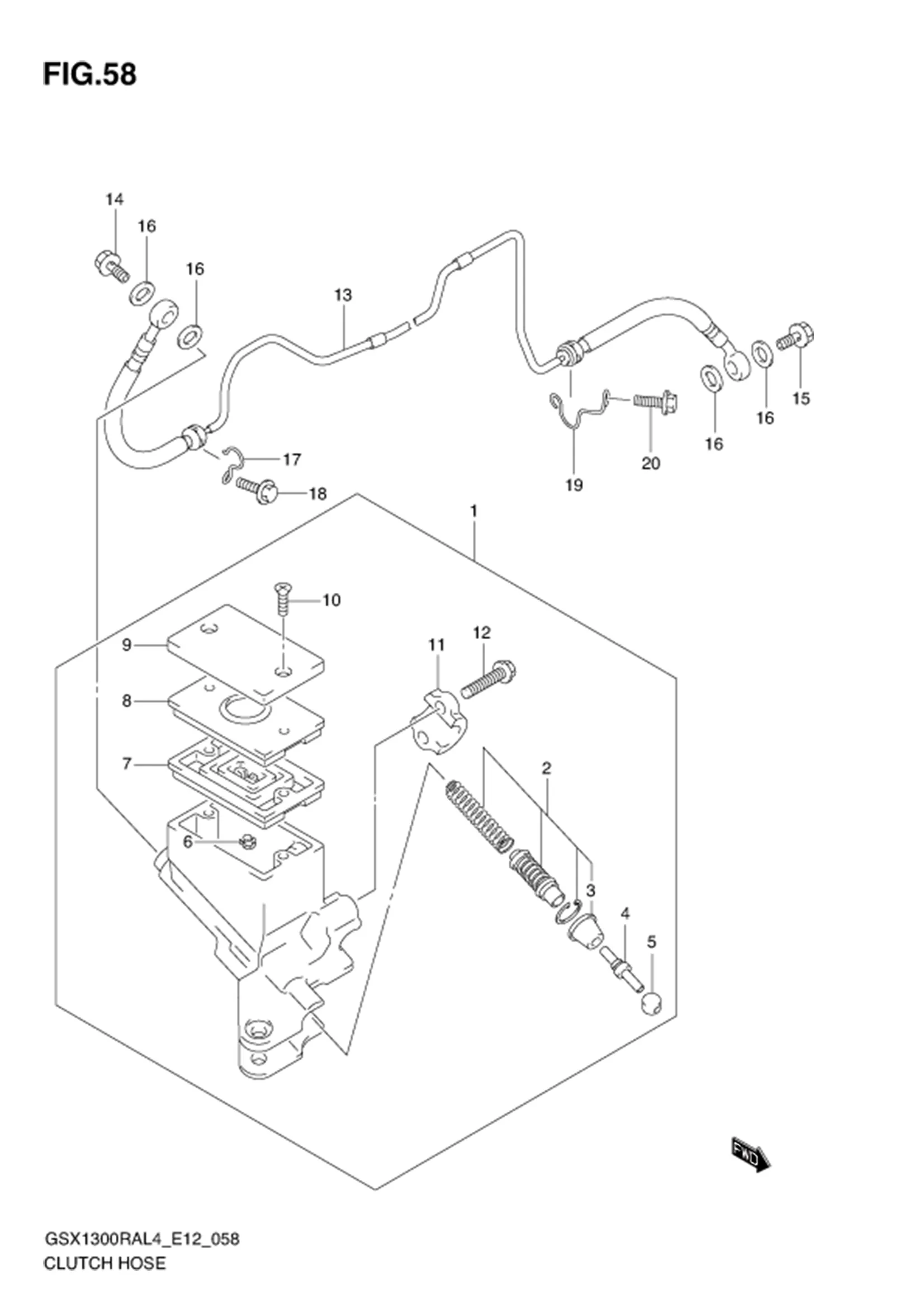

FIG.58 CLUTCH HOSE

FIG.58 CLUTCH HOSE
No No. Part Description Qty Price Per Pcs Remarks
1 59800-24F30-000 CYLINDER ASSY, CLUTCH MASTER 1 Rp2.447.000
2 59800-24810-000 ?PISTON/CUP SET 1 Rp282.500
3 59866-23H00-000 ??BOOT 1 Rp44.000
4 59871-23H00-000 ?ROD, PUSH 1 Rp60.500
5 59892-08A00-000 ?BUSH 1 Rp36.500
6 59664-48B00-000 ?PROTECTOR 1 Rp68.500
7 DISCONTINUE
SUB: 59667-49460-000		 ?DIAPHRAGM 1 -
8 DISCONTINUE
SUB: 59668-41C00-000		 ?PLATE 1 -
9 59669-10G00-000 ?CAP 1 Rp220.500
10 69689-49300-000 ?SCREW 2 Rp3.000
11 59671-36500-000 ?HOLDER 1 Rp23.000
12 59675-02FA0-000 ?BOLT (6X22) 2 Rp9.000
13 59910-24F10-000 HOSE, CLUTCH 1 Rp1.709.500
14 09360-10062-000 UNION 1 Rp13.000
15 09360-10062-000 UNION 1 Rp13.000
16 09161-10009-000 WASHER (10X15X1.5) 4 Rp12.500
17 59915-24F00-000 CLAMP, HOSE NO.1 1 Rp60.500
18 01550-0616A-000 BOLT 1 Rp3.500
19 59921-24F00-000 CLAMP, HOSE NO.2 1 Rp64.500
20 01550-0616A-000 BOLT 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
