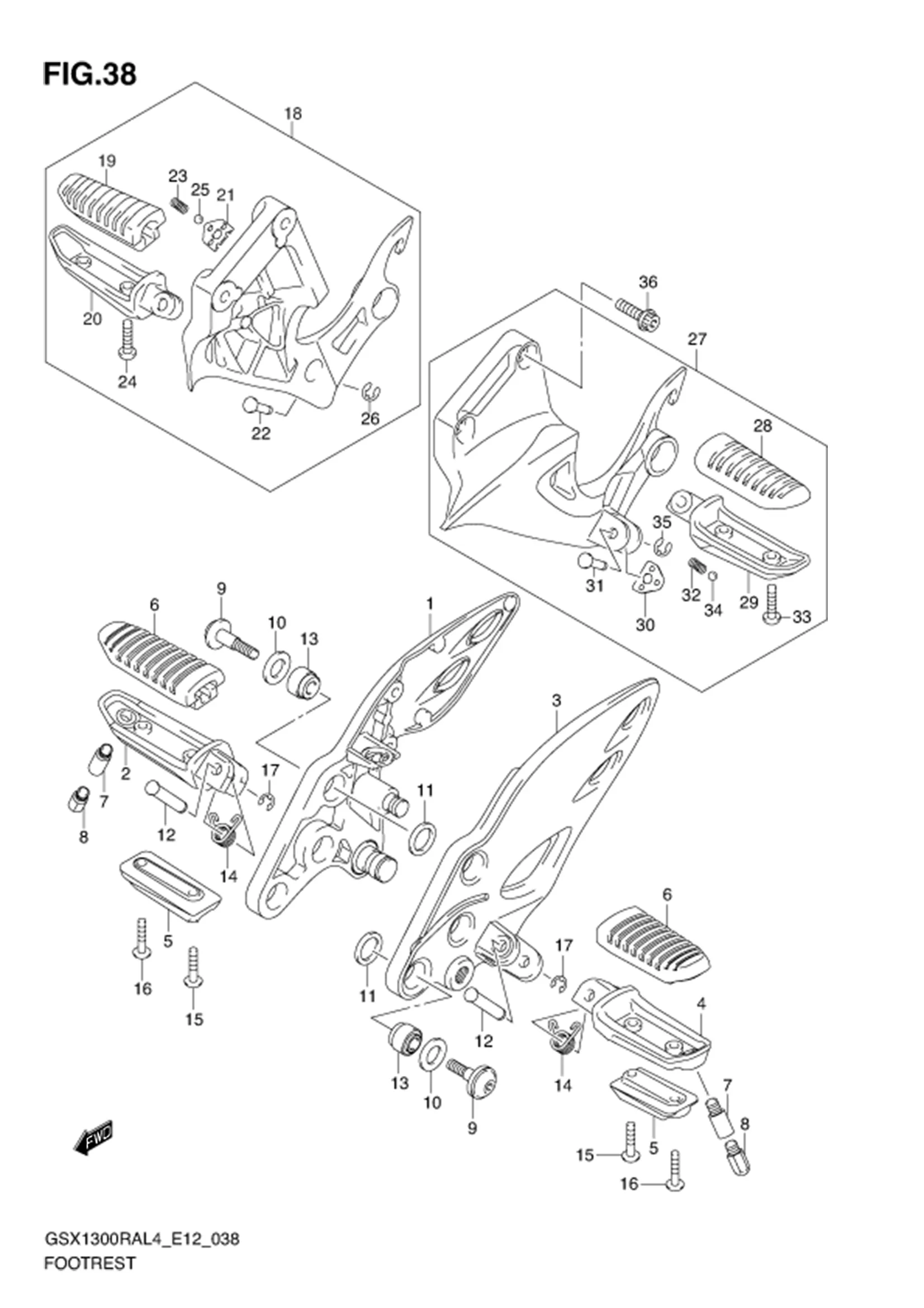

FIG.38 FOOTREST

FIG.38 FOOTREST
No No. Part Description Qty Price Per Pcs Remarks
1 43510-15H00-000 BRACKET, FRONT FOOTREST RH 1 Rp1.517.500
2 43511-44G10-000 BAR, FRONT FOOTREST RH 1 Rp357.500
3 43521-15H00-000 BRACKET, FRONT FOOTREST LH 1 Rp1.326.500
4 43521-44G10-000 BAR, FRONT FOOTREST LH 1 Rp357.500
5 DISCONTINUE
SUB: 43536-44G00-000		 BALANCER, FRONT FOOTREST 2 -
6 DISCONTINUE
SUB: 43550-44G10-000		 RUBBER, FOOTREST 2 -
7 43576-15H00-000 BOLT, BANK SENSOR 2 Rp86.000
8 43576-15H10-000 BOLT, BANK SENSOR 2 Rp163.000
9 09106-08147-000 BOLT (8X30) 6 Rp42.000
10 09161-13004-000 WASHER (13.7X24X2) 6 Rp26.500
11 09161-17002-000 WASHER (17.2X24X2.2) 6 Rp26.500
12 DISCONTINUE
SUB: 09208-08019-000		 PIN 2 -
13 09319-08045-000 BUSH (8.4X20X16) 6 Rp131.500
14 DISCONTINUE
SUB: 09448-14046-000		 SPRING 2 -
15 DISCONTINUE
SUB: 02142-0525A-000		 SCREW 2 -
16 DISCONTINUE
SUB: 02142-0530A-000		 SCREW 2 -
17 08332-1106A-000 E RING 2 Rp8.500
18 43600-15H00-000 FOOTREST ASSY, PILLION RH 1 Rp1.859.000
19 43550-44G00-000 ?RUBBER 1 Rp213.000
20 43611-44G00-000 ?BAR, PILLION FOOTREST RH 1 Rp346.000
21 43816-01H10-000 ?PLATE, PILLION FOOTREST 1 Rp49.500
22 09208-08020-000 ?PIN 1 Rp6.000
23 09440-05003-000 ?SPRING 1 Rp12.000
24 02142-0516A-000 ?SCREW 2 Rp3.500
25 06111M07004-000
SUB: 06111-07004-000		 ?BALL 1 Rp3.000
26 08332-1106A-000 ?E RING 1 Rp8.500
27 43700-15H00-000 FOOTREST ASSY, PILLION LH 1 Rp1.859.000
28 43550-44G00-000 ?RUBBER 1 Rp213.000
29 43621-44G00-000 ?BAR, PILLION FOOTREST LH 1 Rp346.000
30 43816-01H10-000 ?PLATE, PILLION FOOTREST 1 Rp49.500
31 09208-08020-000 ?PIN 1 Rp6.000
32 09440-05003-000 ?SPRING 1 Rp12.000
33 02142-0516A-000 ?SCREW 2 Rp3.500
34 06111M07004-000
SUB: 06111-07004-000		 ?BALL 1 Rp3.000
35 08332-1106A-000 ?E RING 1 Rp8.500
36 09106-08121-000 BOLT (8X30) 4 Rp21.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
