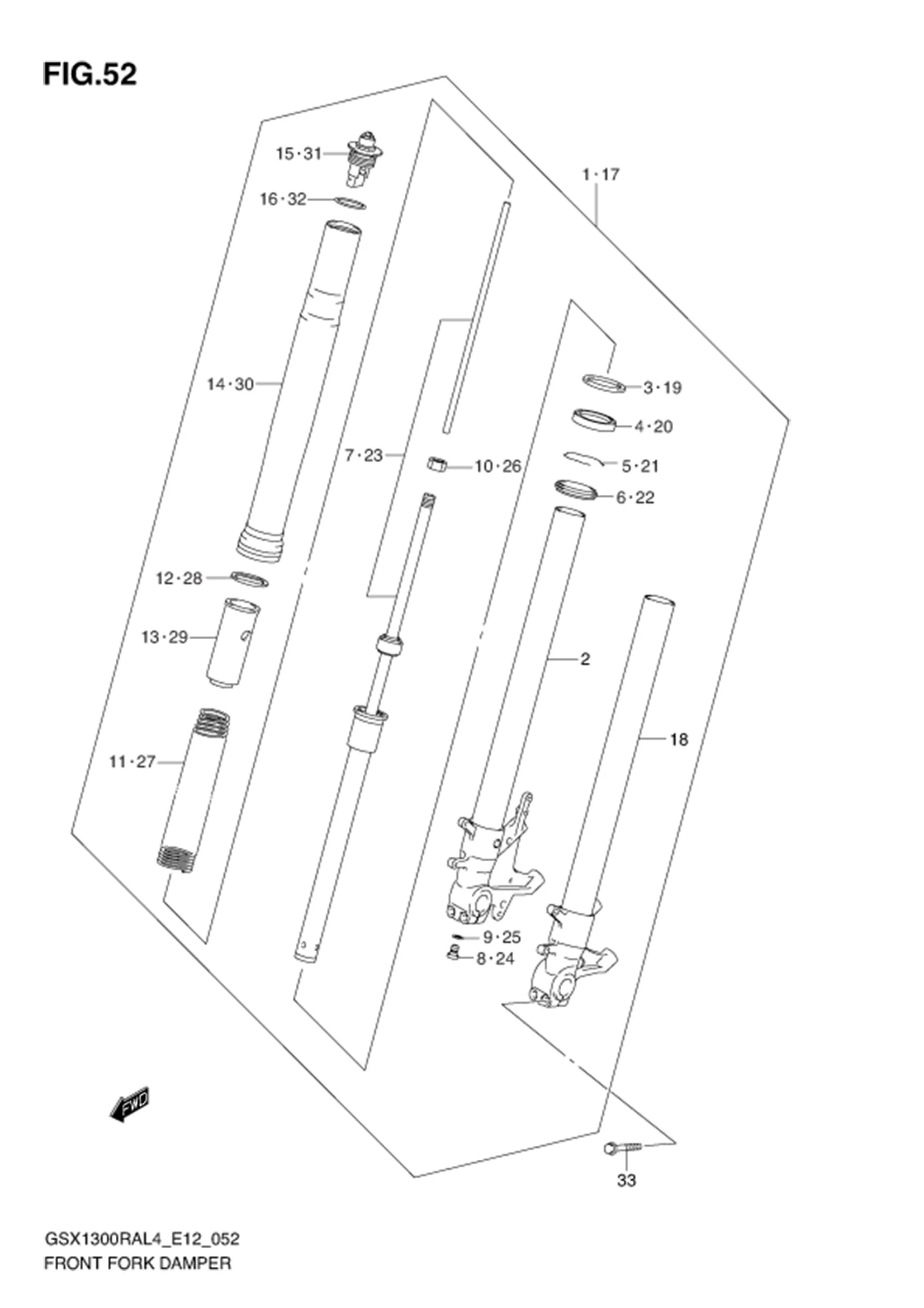

FIG.52 FRONT FORK DAMPER

FIG.52 FRONT FORK DAMPER
No No. Part Description Qty Price Per Pcs Remarks
1 51103-24F71-000 DAMPER ASSY, FRONT FORK RH 1 Rp15.191.500
2 51110-24F71-000 ?TUBE, INNER RH 1 Rp6.937.500
3 51158-14200-000 ?WASHER 1 Rp36.500
4 51153-41G00-000 ?OIL SEAL 1 Rp157.000
5 51156-14200-000 ?RING, STOPPER 1 Rp36.500
6 51173-41G00-000 ?SEAL, DUST 1 Rp180.500
7 51146-24F50-000 ?CYLINDER 1 Rp3.798.500
8 51147-24F50-000 ?BOLT 1 Rp65.000
9 51148-41310-000 ?GASKET 1 Rp8.500
10 51352-13A60-000 ?NUT 1 Rp19.000
11 51171-24F50-000 ?SPRING, FRONT 1 Rp779.000
12 51158-40F30-000 ?GUIDE, SPRING 1 Rp58.500
13 51176-40F30-000 ?SPACER, SPRING 1 Rp151.500
14 51130-24F50-000 ?TUBE, OUTER 1 Rp7.261.500
15 51351-24F50-000 ?CAP, FRONT FORK 1 Rp1.758.000
16 62278-14100-000 ?O RING 1 Rp29.500
17 51104-24F70-000 DAMPER ASSY, FRONT FORK LH 1 Rp15.191.500
18 51120-24F70-000 ?TUBE, INNER LH 1 Rp6.937.500
19 51158-14200-000 ?WASHER 1 Rp36.500
20 51153-41G00-000 ?OIL SEAL 1 Rp157.000
21 51156-14200-000 ?RING, STOPPER 1 Rp36.500
22 51173-41G00-000 ?SEAL, DUST 1 Rp180.500
23 51146-24F50-000 ?CYLINDER 1 Rp3.798.500
24 51147-24F50-000 ?BOLT 1 Rp65.000
25 51148-41310-000 ?GASKET 1 Rp8.500
26 51352-13A60-000 ?NUT 1 Rp19.000
27 51171-24F50-000 ?SPRING, FRONT 1 Rp779.000
28 51158-40F30-000 ?GUIDE, SPRING 1 Rp58.500
29 51176-40F30-000 ?SPACER, SPRING 1 Rp151.500
30 51130-24F50-000 ?TUBE, OUTER 1 Rp7.261.500
31 51351-24F50-000 ?CAP, FRONT FORK 1 Rp1.758.000
32 62278-14100-000 ?O RING 1 Rp29.500
33 51166-24F60-000 BOLT 4 Rp40.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
