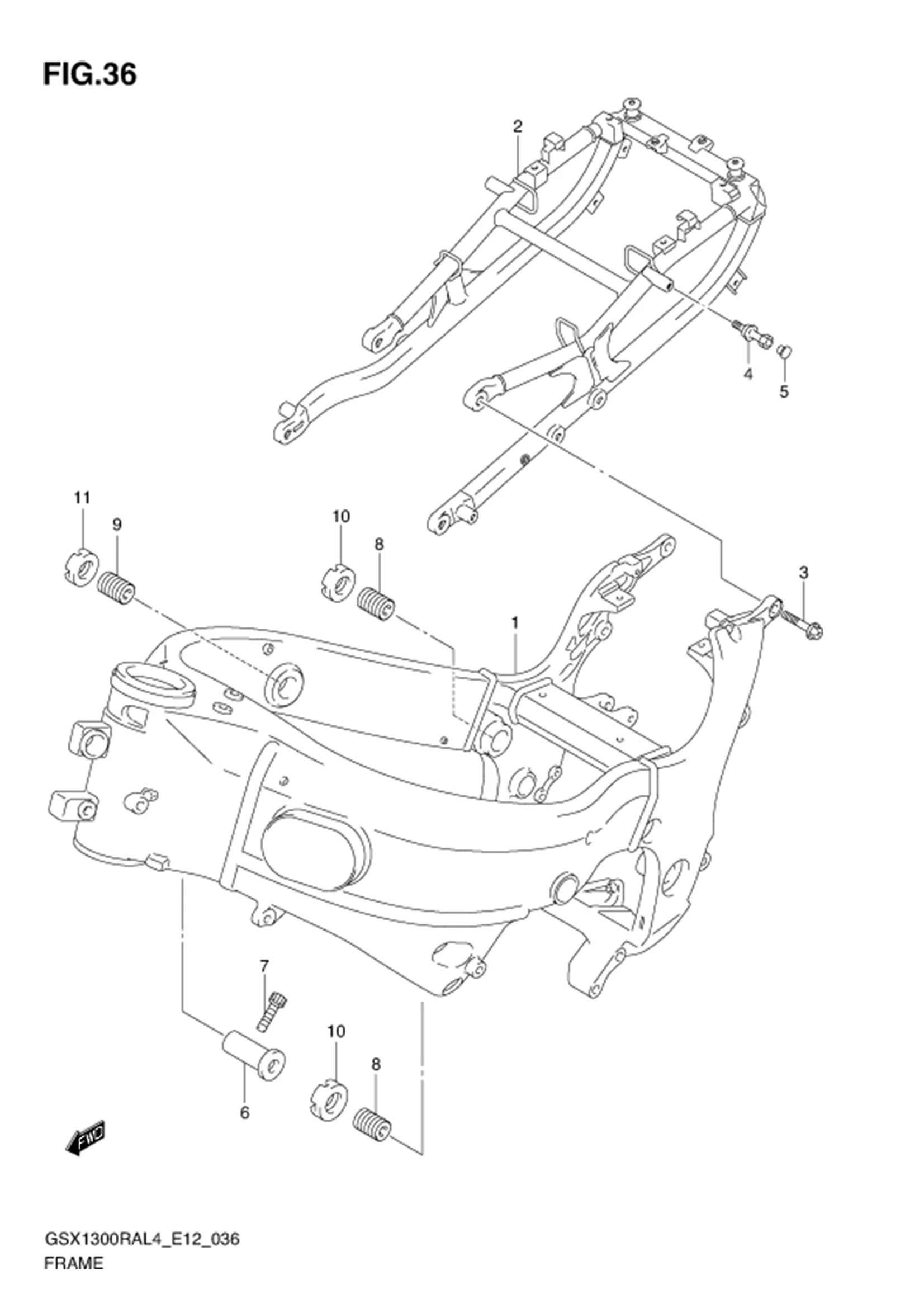

FIG.36 FRAME

FIG.36 FRAME
No No. Part Description Qty Price Per Pcs Remarks
1 41100-15H12-YAP FRAME (BLACK) 1 Rp35.495.000
2 41200-15H11-000 RAIL, SEAT 1 Rp7.424.000
3 09103-10296-000 BOLT (10X30) 4 Rp49.500
4 46315-24F01-000 HOOK, SEAT RAIL 2 Rp288.000
5 09250-05009-000 CAP (OD:10) 2 Rp12.500
6 41911-33E10-000 SPACER, ENGINE MOUNT 1 Rp151.500
7 09106-08105-000 BOLT (8X30) 1 Rp23.500
8 41921-15H00-000
SUB: 41921-15H20-000		 BOLT, CRANKCASE ADJUST 2 Rp293.000
9 41921-15H30-000 BOLT, CRANKCASE ADJUST 1 Rp246.500
10 41922-19F12-000 NUT, CRANK CASE ADJUST 2 Rp184.000
11 41922-33E30-000 NUT, CRANK CASE ADJUST 1 Rp129.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
