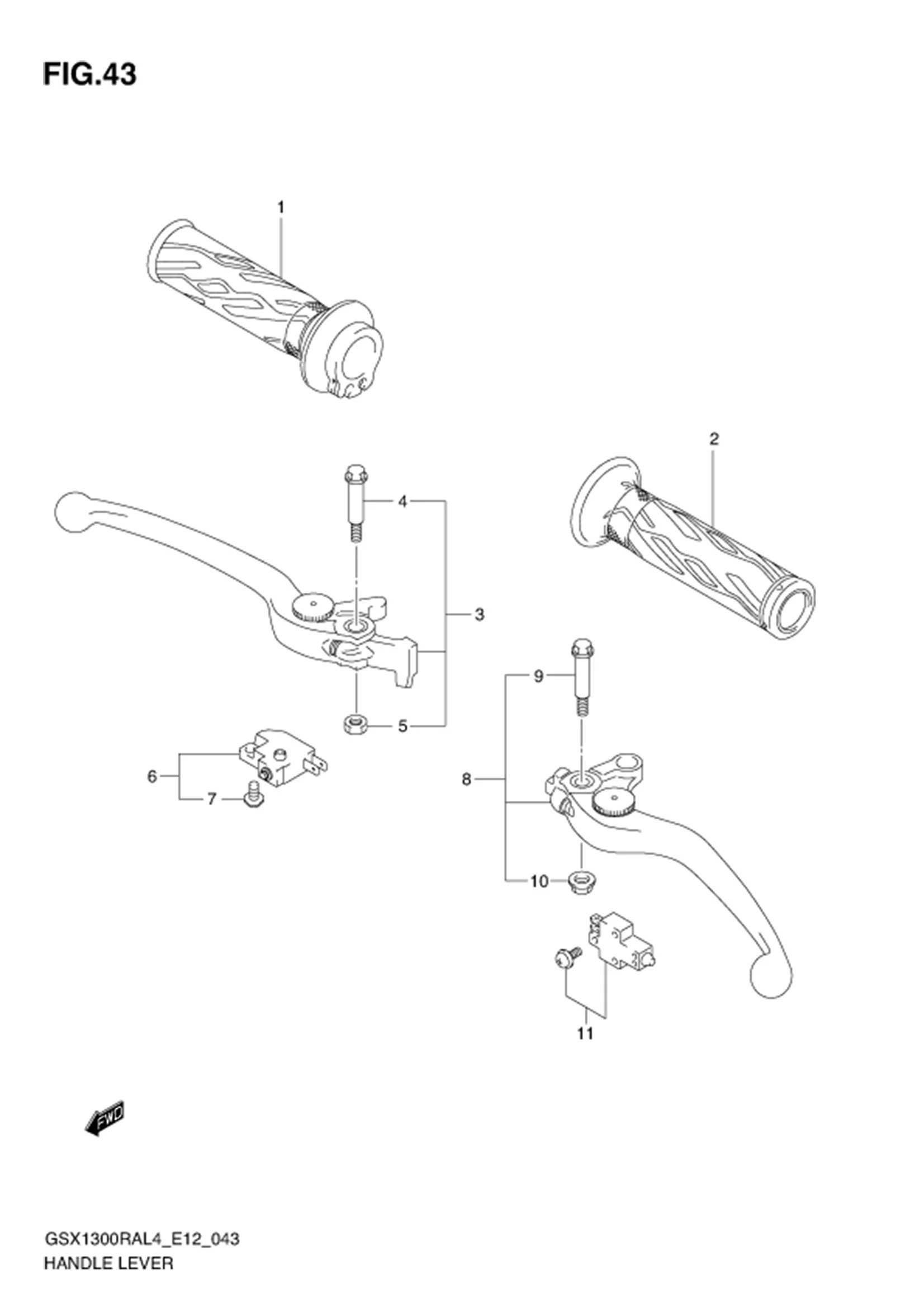

FIG.43 HANDLE LEVER

FIG.43 HANDLE LEVER
No No. Part Description Qty Price Per Pcs Remarks
1 57110-21H02-000
SUB: 57110-21H01-000		 GRIP, THROTTLE 1 Rp128.000
2 57211-21H01-000
SUB: 57211-21H00-000		 GRIP LH 1 Rp86.000
3 57300-14G22-000 LEVER ASSY, BRAKE 1 Rp1.053.000
4 57431-17H02-000 ?BOLT, LEVER PIVOT 1 Rp55.500
5 08319-2106A-000 ?NUT 1 Rp5.000
6 57460-14J02-000
SUB: 57460-14J01-000		 SWITCH ASSY, FRONT BRAKE 1 Rp265.000
7 DISCONTINUE
SUB: 57465-17C00-000		 ?SCREW 1 -
8 57500-24F30-000 LEVER ASSY, CLUTCH 1 Rp946.500
9 57431-17H02-000 ?BOLT, LEVER PIVOT 1 Rp55.500
10 08316-1006A-000
SUB: 08316-1006B-000		 ?NUT 1 Rp2.000
11 57560-02FA0-000 SWITCH ASSY, CLUTCH 1 Rp162.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
