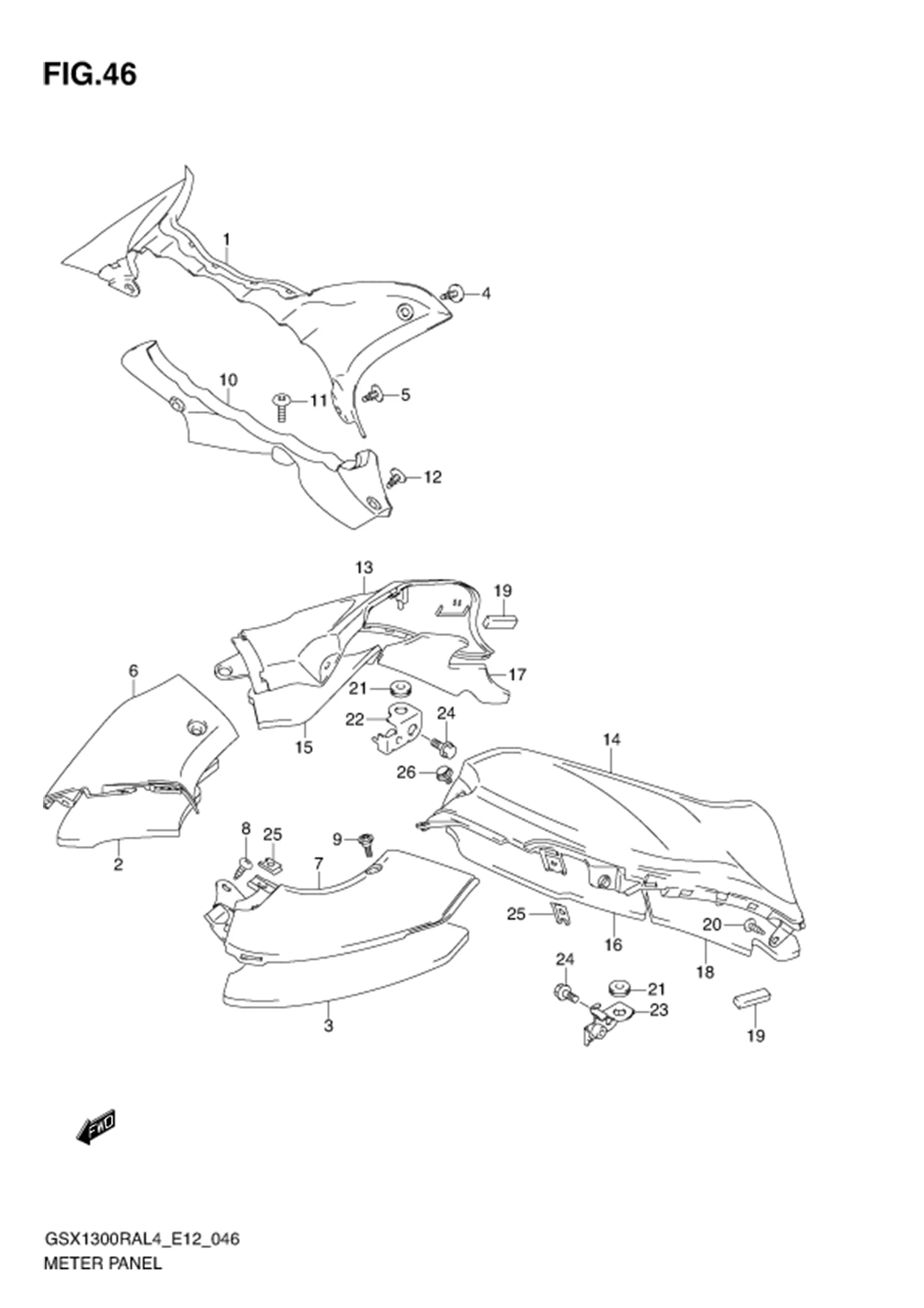

FIG.46 METER PANEL

FIG.46 METER PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 94424-15H00-000 PANEL, METER UPPER 1 Rp384.000
2 94643-15H00-000 CUSHION, RH 1 Rp150.500
3 94644-15H00-000 CUSHION, LH 1 Rp150.500
4 09409-06314-5PK CLIP (BLACK) 2 Rp3.500
5 09409-07333-000 CLIP 2 Rp17.500
6 94641-15H00-000 PANEL, METER RH 1 Rp300.000
7 94651-15H00-000 PANEL, METER LH 1 Rp300.000
8 03241-1516B-000 SCREW 2 Rp3.000
9 09139-05504-000 SCREW (5X16) 2 Rp23.000
10 94425-15H00-000 PANEL, METER REAR 1 Rp381.500
11 09139-05503-000 SCREW (5X13) 1 Rp18.000
12 09409-08327-000 CLIP 2 Rp15.000
13 94621-15H00-000 PANEL, SIDE RH 1 Rp490.500
14 94631-15H00-000 PANEL, SIDE LH 1 Rp490.500
15 94622-15H00-000 CUSHION, FRONT RH 1 Rp192.000
16 94632-15H00-000 CUSHION, FRONT LH 1 Rp192.000
17 94623-15H00-000 CUSHION, REAR RH 1 Rp150.500
18 94633-15H00-000 CUSHION, REAR LH 1 Rp150.500
19 33652-02H00-000 CUSHION 2 Rp59.000
20 09132-05053-000 SCREW (5X16) 6 Rp14.000
21 47191-06J00-000 CUSHION 2 Rp33.000
22 94520-24F10-000 BRACKET RH 1 Rp196.000
23 94530-24F10-000 BRACKET LH 1 Rp196.000
24 01550-0620B-000 BOLT 2 Rp3.500
25 94484-24F00-000 NUT 2 Rp29.000
26 09409M07L01-000
SUB: 09409-07332-000		 CLIP 2 Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
