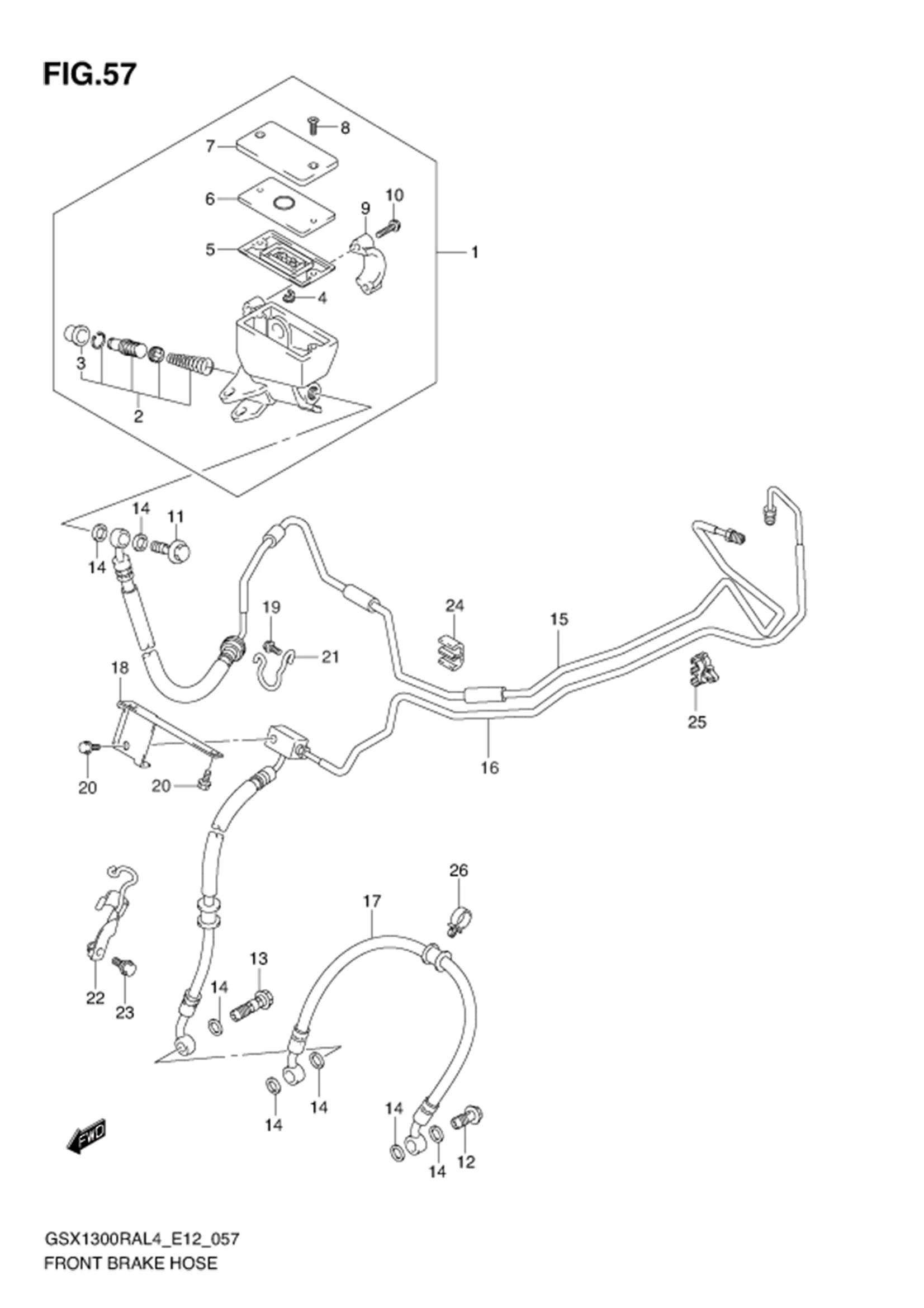

FIG.57 FRONT BRAKE HOSE

FIG.57 FRONT BRAKE HOSE
No No. Part Description Qty Price Per Pcs Remarks
1 59600-24F30-000 CYLINDER ASSY, FRONT MASTER 1 Rp2.250.000
2 59600-24810-000 ?PISTON/CUP SET 1 Rp280.000
3 59666-44300-000 ??BOOT 1 Rp16.000
4 59664-48B00-000 ?PROTECTOR 1 Rp68.500
5 DISCONTINUE
SUB: 59667-49460-000		 ?DIAPHRAGM 1 -
6 DISCONTINUE
SUB: 59668-41C00-000		 ?PLATE 1 -
7 59669-10G00-000 ?CAP 1 Rp220.500
8 69689-49300-000 ?SCREW 2 Rp3.000
9 59671-36500-000 ?HOLDER 1 Rp23.000
10 59675-02FA0-000 ?BOLT (6X22) 2 Rp9.000
11 09360-10062-000 UNION 1 Rp13.000
12 09360-10062-000 UNION 1 Rp13.000 LH
13 09360-10064-000 UNION 1 Rp44.000 RH
14 09161-10009-000 WASHER (10X15X1.5) 7 Rp12.500
15 59200-15H00-000 HOSE ASSY, FRONT BRAKE NO.1 1 Rp660.500
16 59400-15H00-000 HOSE ASSY, FRONT BRAKE NO.2 1 Rp750.500
17 59240-15H10-000 HOSE, FRONT BRAKE NO.2 1 Rp453.000
18 59243-15H00-000 BRACKET, BRAKE HOSE 1 Rp45.000
19 01547-0610A-000
SUB: 01547-0612A-000		 BOLT 1 Rp3.000
20 01547-0616A-000 BOLT 3 Rp6.500
21 59245-15H00-000 CLAMP, BRAKE HOSE 1 Rp151.500
22 59270-15H10-000 CLAMP, BRAKE HOSE 1 Rp102.000
23 09111-06107-000 BOLT (6X12) 1 Rp4.000
24 09403-06324-000 CLAMP 1 Rp20.000
25 09403-07334-000 CLAMP 1 Rp16.500
26 09403-16412-000 CLAMP 1 Rp21.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
