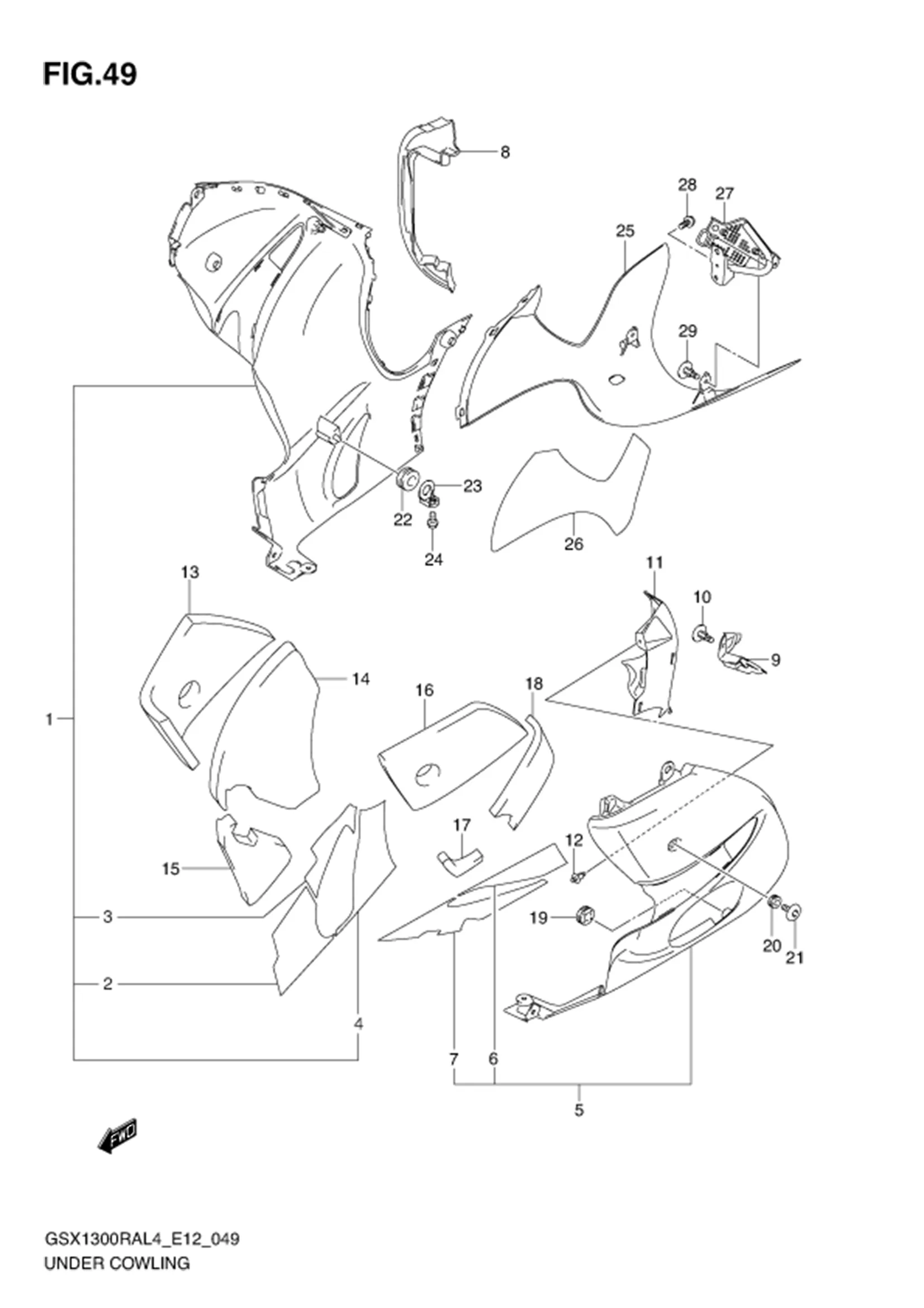

FIG.49 UNDER COWLING

FIG.49 UNDER COWLING
No No. Part Description Qty Price Per Pcs Remarks
1-2 94470-15H20-YVZ COWLING, UNDER RH (RED) 1 Rp3.089.000 FOR AGS
1-1 94470-15H20-YKY COWLING, UNDER RH (BLUE) 1 Rp3.089.000 FOR AJP
1-3 94470-15H20-YVB COWLING, UNDER RH (BLACK) 1 Rp3.089.000 FOR AA3
2 94472-15H00-000 ?SHIELD, HEAT RH NO.1 1 Rp143.000
3 94472-15H20-000 ?SHIELD, HEAT RH NO.3 1 Rp94.500
4 94472-15H10-000 ?SHIELD, HEAT RH NO.2 1 Rp143.000
5-1 94480-15H20-YKY COWLING, UNDER LH (BLUE) 1 Rp3.089.000 FOR AJP
5-2 94480-15H20-YVZ COWLING, UNDER LH (RED) 1 Rp3.089.000 FOR AGS
5-3 94480-15H20-YVB COWLING, UNDER LH (BLACK) 1 Rp3.089.000 FOR AA3
6 94482-15H00-000 ?SHIELD, HEAT LH NO.1 1 Rp152.500
7 94482-15H10-000 ?SHIELD, HEAT LH NO.2 1 Rp100.500
8 94475-15H00-000 PROTECTOR, RH 1 Rp221.000
9 94485-15H00-000 PROTECTOR, LH 1 Rp113.500
10 94479-35F00-000 CLIP, LH 1 Rp35.000
11 94489-15H00-000 COVER, UNDER LH 1 Rp191.000
12 09409-06314-5PK CLIP (BLACK) 1 Rp3.500 LH
13 94478-15H00-000 CUSHION, UNDER COWL RH NO.1 1 Rp402.000
14 94478-15H10-000 CUSHION, UNDER COWL RH NO.2 1 Rp466.000
15 94478-15H20-000 CUSHION, UNDER COWL RH NO.3 1 Rp161.000
16 94488-15H00-000 CUSHION, UNDER COWL LH NO.1 1 Rp318.500
17 94488-15H10-000 CUSHION, UNDER COWL LH NO.2 1 Rp226.500
18 94488-15H20-000 CUSHION, UNDER COWL LH NO.3 1 Rp160.500
19 94479-15H00-000 CUSHION, LH 1 Rp49.500
20 09320-09016-000 CUSHION 3 Rp4.000
21 09139-06190-000 SCREW (6X20) 4 Rp7.000
22 09320-08028-000 CUSHION 2 Rp11.500
23 94560-15H00-000 PLATE, UNDER COWL 2 Rp77.500
24 01550-0612B-000 BOLT 2 Rp16.500
25-1 94661-15H00-YKY COWLING, UNDER REAR (BLUE) 1 Rp4.308.000 FOR AJP
25-2 94661-15H00-YVZ COWLING, UNDER REAR (RED) 1 Rp2.570.000 FOR AGS
25-3 94661-15H00-YVB COWLING, UNDER REAR (BLACK) 1 Rp2.570.000 FOR AA3
26 DISCONTINUE
SUB: 94667-15H00-000		 SHIELD, HEAT 1 -
27 94540-15H00-000 BRACKET, REAR COWLING 1 Rp489.500
28 01550-0816A-000 BOLT 2 Rp6.000
29 94479-35F00-000 CLIP 2 Rp35.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
