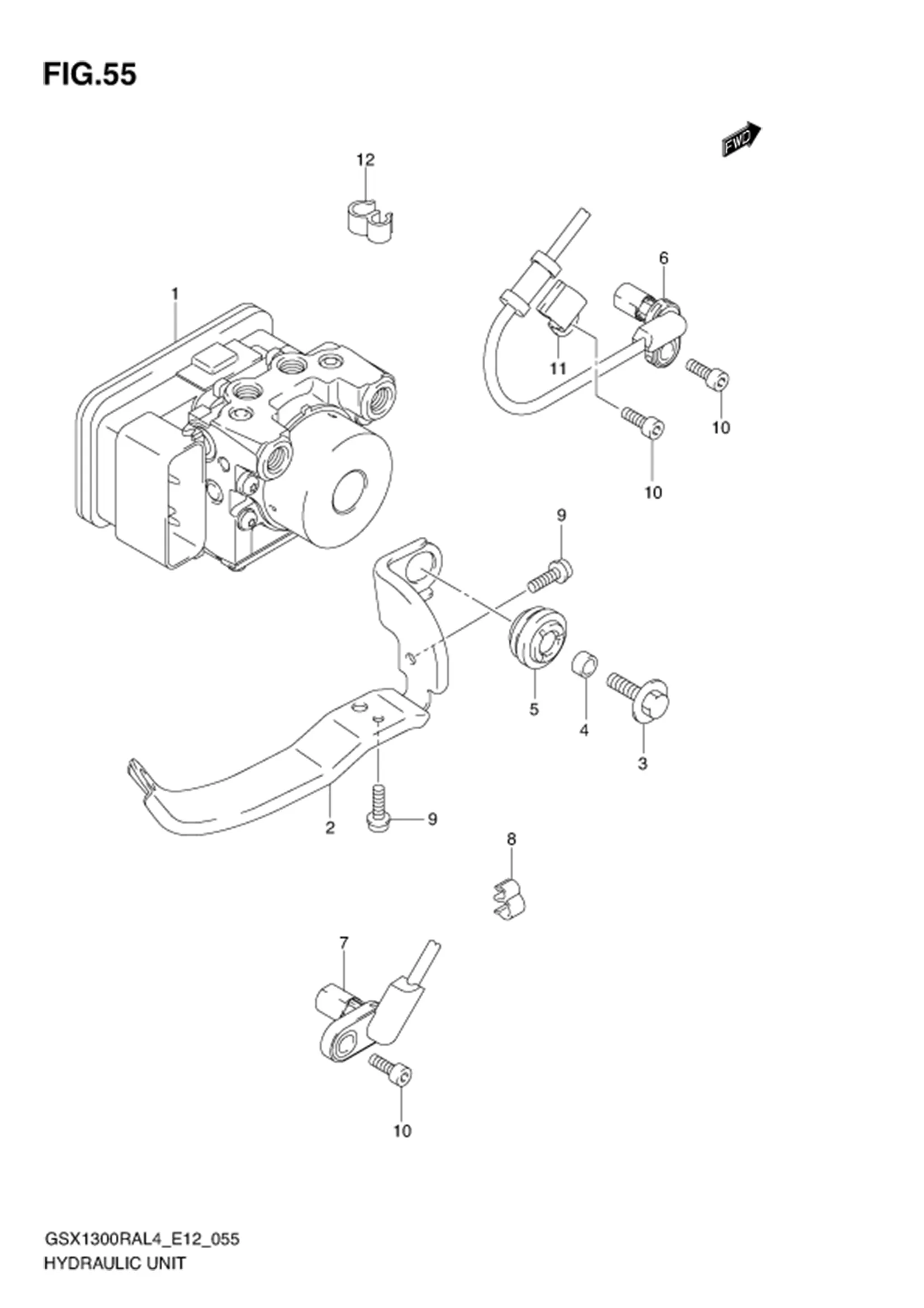

FIG.55 HYDRAULIC UNIT

FIG.55 HYDRAULIC UNIT
No No. Part Description Qty Price Per Pcs Remarks
1 55610-15H01-000 UNIT ASSY, HYDRAULIC ABS 1 Rp22.359.000
2 55660-15H00-000 HOLDER, HYDRAULIC UNIT 1 Rp207.500
3 55661-10G00-000 BOLT, HYDRAULIC UNIT MTG 2 Rp39.000
4 55662-10G00-000 SPACER, HYDRAULIC UNIT 2 Rp39.000
5 09320-10066-000 RUBBER 2 Rp35.000
6 55710-15H10-000 SENSOR, FRONT WHEEL ABS 1 Rp826.000
7 65710-15H10-000 SENSOR, REAR WHEEL ABS 1 Rp813.000
8 09408-00266-000 CLAMP 7 Rp15.000
9 07120-0612A-000 BOLT 2 Rp16.500
10 07130-0612A-000
SUB: 07130-0612B-000		 BOLT 3 Rp3.500
11 55731-23H00-000 CLAMP, SENSOR FRONT 1 Rp86.000
12 09407-14407-000 CLAMP (L:145) 1 Rp18.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
