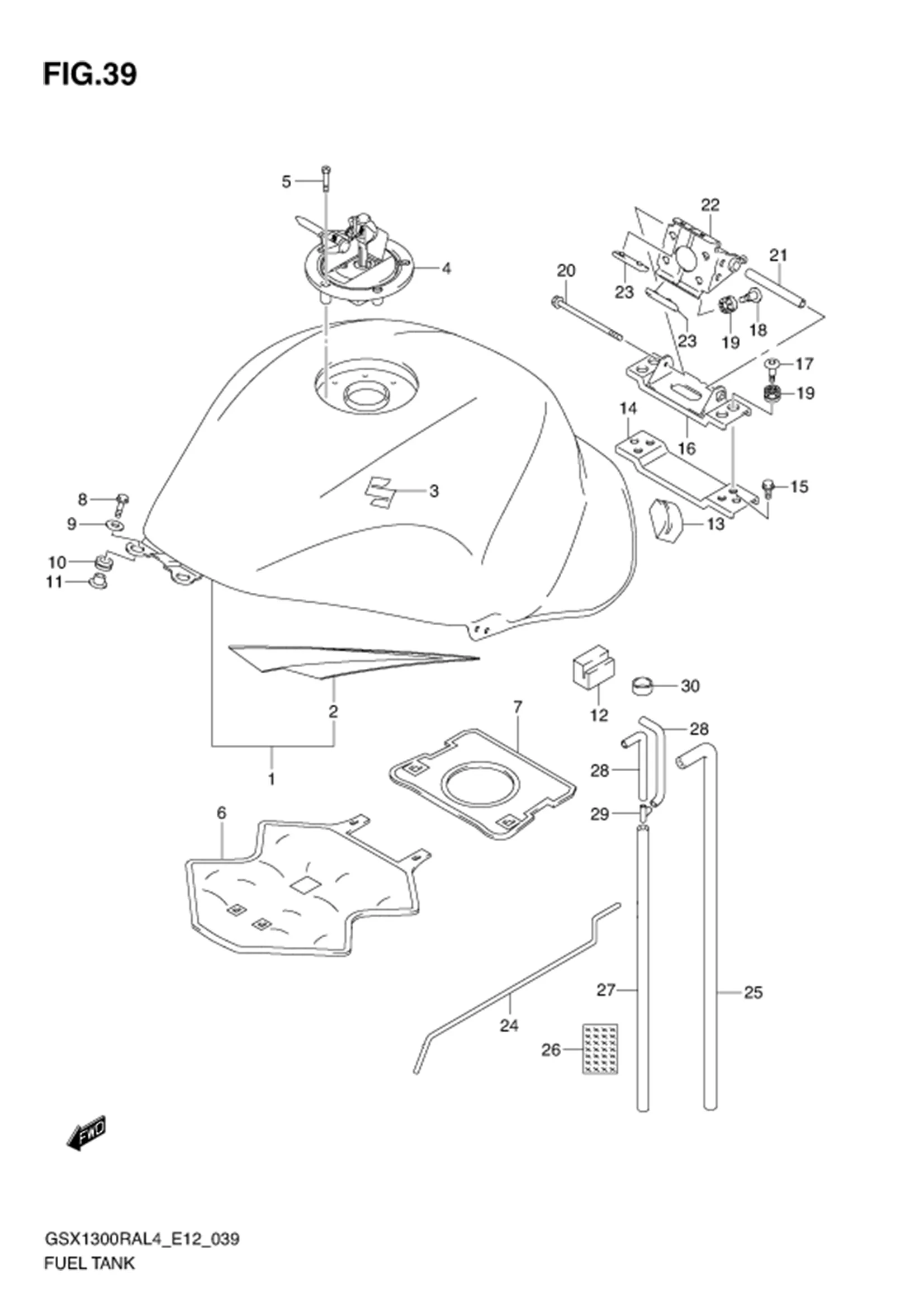

FIG.39 FUEL TANK

FIG.39 FUEL TANK
No No. Part Description Qty Price Per Pcs Remarks
1-2 44100-15H90-YVZ TANK ASSY, FUEL (RED) 1 Rp11.191.500 FOR AGS
1-1 44100-15H90-YKY TANK ASSY, FUEL (BLUE) 1 Rp11.191.500 FOR AJP
1-3 44100-15H90-6UX TANK ASSY, FUEL (BLACK) 1 Rp11.191.500 FOR AA3
2-1 68110-15H20-AWF ?TAPE SET 1 Rp690.000 FOR YKY
2-2 68110-15H20-AV9 ?TAPE SET 1 Rp690.000 FOR YVZ
2-3 68110-15H20-AV8 ?TAPE SET 1 Rp690.000 FOR 6UX
3 68111-47HA0-000 EMBLEM, "S" 2 Rp275.000
4 44200-16850-000 CAP SET, FUEL TANK 1 Rp1.421.500
5 09106-05017-000 BOLT (5X20) 3 Rp18.000
6 44191-15H00-000 SHIELD, FUEL TANK HEAT NO.1 1 Rp1.005.000
7 44191-15H10-000 SHIELD, FUEL TANK HEAT NO.2 1 Rp444.000
8 09139-06029-000 SCREW (6X25) 2 Rp39.000
9 09160-06012-000 WASHER (6.5X22X1.6) 2 Rp7.000
10 44511-16G01-000
SUB: 44511-16G00-000		 CUSHION 2 Rp7.500
11 44512-16G00-000 SPACER 2 Rp52.000
12 44541-24F00-000 CUSHION, SIDE 2 Rp48.000
13 44543-15H00-000 CUSHION, REAR 2 Rp35.500
14 44555-15H00-000 BRACKET, FUEL TANK REAR NO.3 1 Rp134.500
15 01550-0816A-000 BOLT 2 Rp6.000
16 44550-15H01-000 BRACKET, FUEL TANK REAR NO.2 1 Rp285.500
17 09139-06191-000 SCREW (6X22) 4 Rp31.000
18 09139-06191-000 SCREW (6X22) 4 Rp31.000
19 09320-08071-000 CUSHION 8 Rp24.500
20 07120-0695B-000 BOLT 1 Rp31.000
21 44561-18G00-000 SPACER, FUEL TANK REAR 1 Rp120.500
22 44530-15H01-000 BRACKET, FUEL TANK REAR NO.1 1 Rp298.500
23 45149-44G00-000 CUSHION, BRACKET 2 Rp42.000
24 44574-35F00-000 STAY 1 Rp103.500 OPT
25 44423-15H00-000 HOSE, DRAIN 1 Rp140.000 COLOR : AJP=YKY(BLUE),YWW(WHITE) AGS=YVZ(RED),YWW(WHITE) AA3=YLF(GRAY),YVB(BLACK)
26 44427-15H00-000 SHIELD, DRAIN HOSE HEAT 1 Rp113.500
27 44424-15H00-000 HOSE, BREATHER 1 Rp127.500
28 44424-15H10-000 HOSE, BREATHER NO.2 2 Rp83.500
29 09367-06007-000 3 WAY 1 Rp30.500
30 09352-12163-600 HOSE (12X16X600) 1 Rp90.000 L:600->10

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
