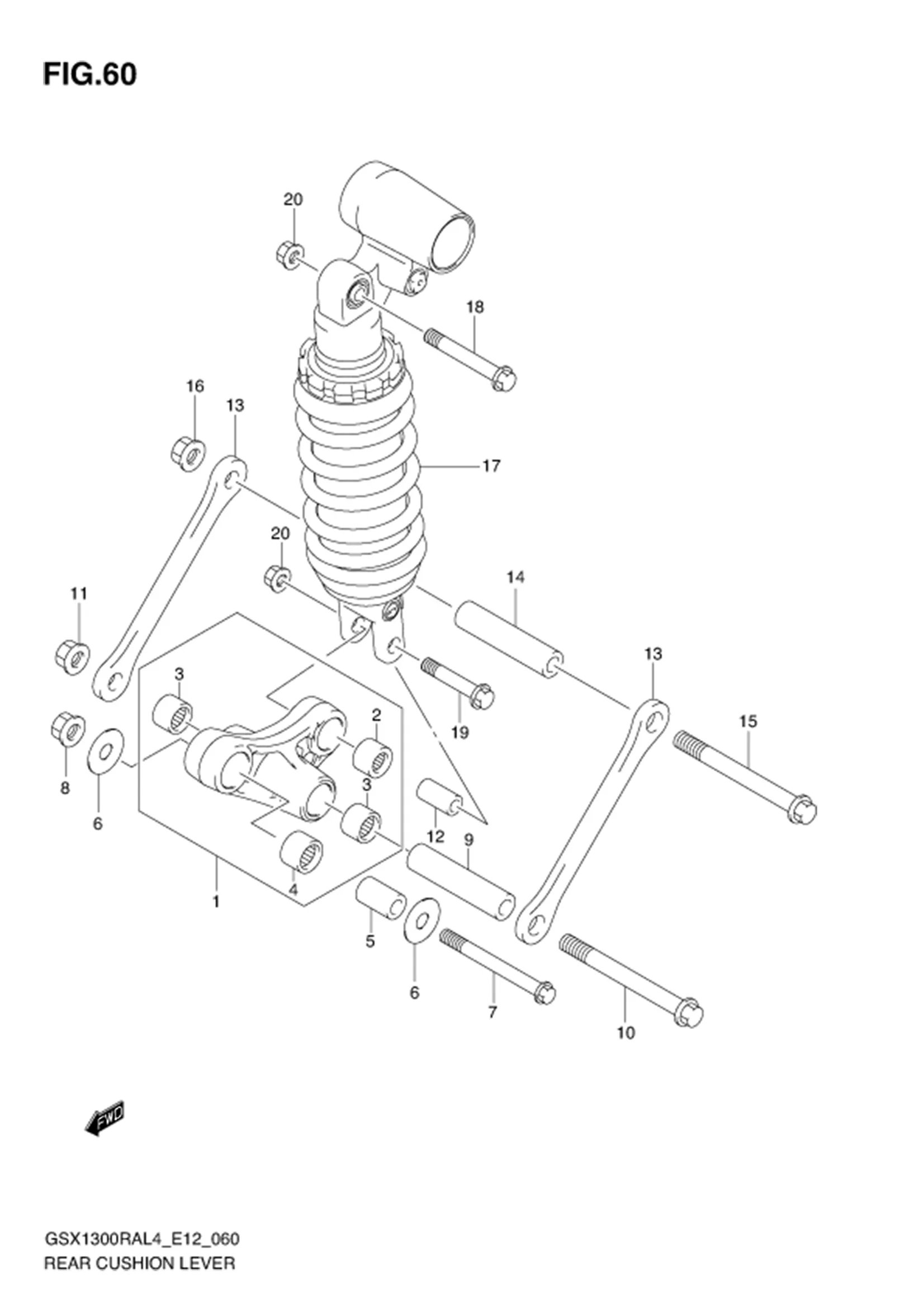

FIG.60 REAR CUSHION LEVER

FIG.60 REAR CUSHION LEVER
No No. Part Description Qty Price Per Pcs Remarks
1 62600-24831-000 LEVER SET, REAR CUSHION 1 Rp3.048.500
2 DISCONTINUE
SUB: 09263-20073-000		 ?BEARING (20X27X30) 1 -
3 09263-17053-000
SUB: 09263-17037-000		 ?BEARING (17X24X25) 2 Rp38.000
4 09263-17057-000
SUB: 09263-17034-000		 ?BEARING (17X24X26) 1 Rp201.000
5 62684-12C00-000 SPACER, FRONT (12X20X32) 1 Rp107.000
6 08211-12301-000 WASHER 2 Rp16.000
7 62658-19F00-000 BOLT, FRONT (12X78) 1 Rp68.500
8 09159-12056-000 NUT 1 Rp51.000
9 62626-33D00-000 SPACER, CENTER 1 Rp148.000
10 62621-33D10-000 BOLT, CENTER 1 Rp193.000
11 09159-12056-000 NUT 1 Rp51.000
12 62684-40A10-000 SPACER, REAR (10X17X30) 1 Rp70.500
13 62641-24F00-000 ROD, REAR CUSHION 2 Rp314.500
14 62626-33D00-000 SPACER, ROD 1 Rp148.000
15 62621-33D10-000 BOLT, ROD 1 Rp193.000
16 09159-12056-000 NUT 1 Rp51.000
17 62100-24F50-000 ABSORBER ASSY, REAR SHOCK 1 Rp11.676.500
18 09103-10033-000 BOLT (10X70) 1 Rp64.500
19 09103-10143-000 BOLT (10X55) 1 Rp21.500
20 09159-10115-000 NUT 2 Rp23.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
