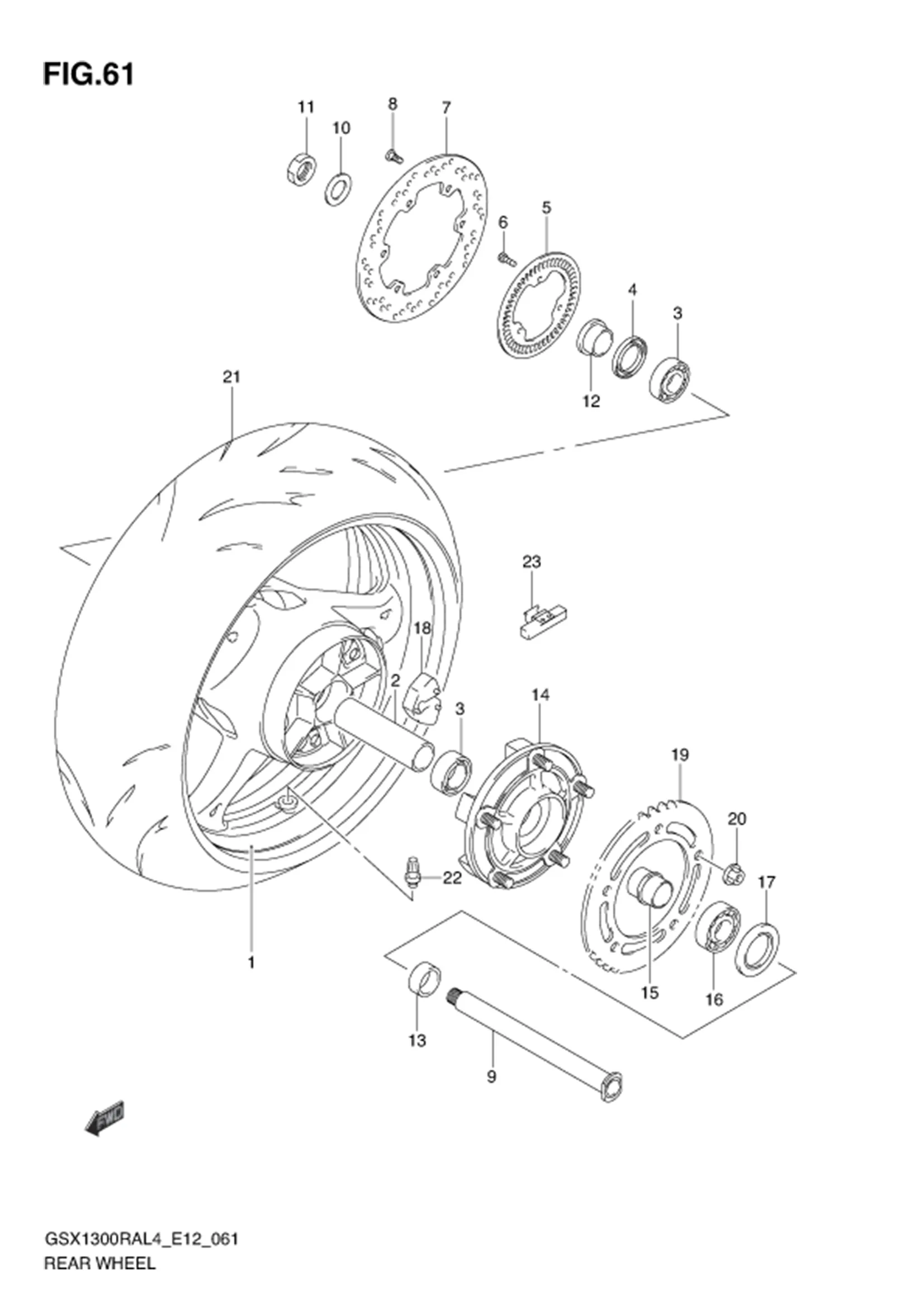

FIG.61 REAR WHEEL

FIG.61 REAR WHEEL
No No. Part Description Qty Price Per Pcs Remarks
1 64111-15H20-019 WHEEL, REAR (17M/CXMT6.00) (BLACK) 1 Rp9.791.500
2 64731-40F10-000 SPACER, HUB BEARING 1 Rp354.000
3 09262-28052-000 BEARING (28X52X12) 2 Rp199.000
4 DISCONTINUE
SUB: 09284-37001-000		 OIL SEAL (37X52X8) 1 - RH
5 64162-23H00-000 RING, SPEED SENSOR (60T) 1 Rp221.000
6 07130-0512A-000 BOLT 3 Rp4.000
7 69211-15H00-000 DISC, REAR BRAKE 1 Rp2.002.000
8 09106-08160-000 BOLT (8X21) 6 Rp26.500
9 64711-33E20-000 AXLE, REAR 1 Rp888.000
10 09160-25070-000 WASHER (25.2X42X3.2) 1 Rp34.000
11 DISCONTINUE
SUB: 09159-25003-000		 NUT 1 -
12 64741-35F00-000 SPACER, AXLE RH 1 Rp178.500
13 64751-49G00-000 SPACER, AXLE LH 1 Rp188.500
14 DISCONTINUE
SUB: 64610-35F30-000		 DRUM, REAR SPROCKET 1 -
15 DISCONTINUE
SUB: 64733-35F00-000		 RETAINER, SPROCKET DRUM 1 -
16 09262-32022-000 BEARING (32X65X17) 1 Rp329.500
17 DISCONTINUE
SUB: 09285-39001-000		 OIL SEAL (39X65X7) 1 -
18 64651-35F20-000 ABSORBER, HUB SHOCK 5 Rp141.000
19 64511-15H00-000 SPROCKET, REAR (NT:43) 1 Rp770.500
20 08319-3110A-000 NUT 5 Rp4.500
21 65110-24F50-000 TIRE, REAR (190/50 ZR17 (73W)) 1 Rp5.135.000
22 43130-24A00-000 VALVE ASSY, WHEEL RIM (TR412) 1 Rp50.500
23-1 55411-22H00-000 BALANCER, WHEEL NO.1 (10G) 0 Rp46.000
23-2 55412-22H00-000 BALANCER, WHEEL NO.2 (20G) 0 Rp55.000
23-3 55413-22H00-000 BALANCER, WHEEL NO.3 (30G) 0 Rp62.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
