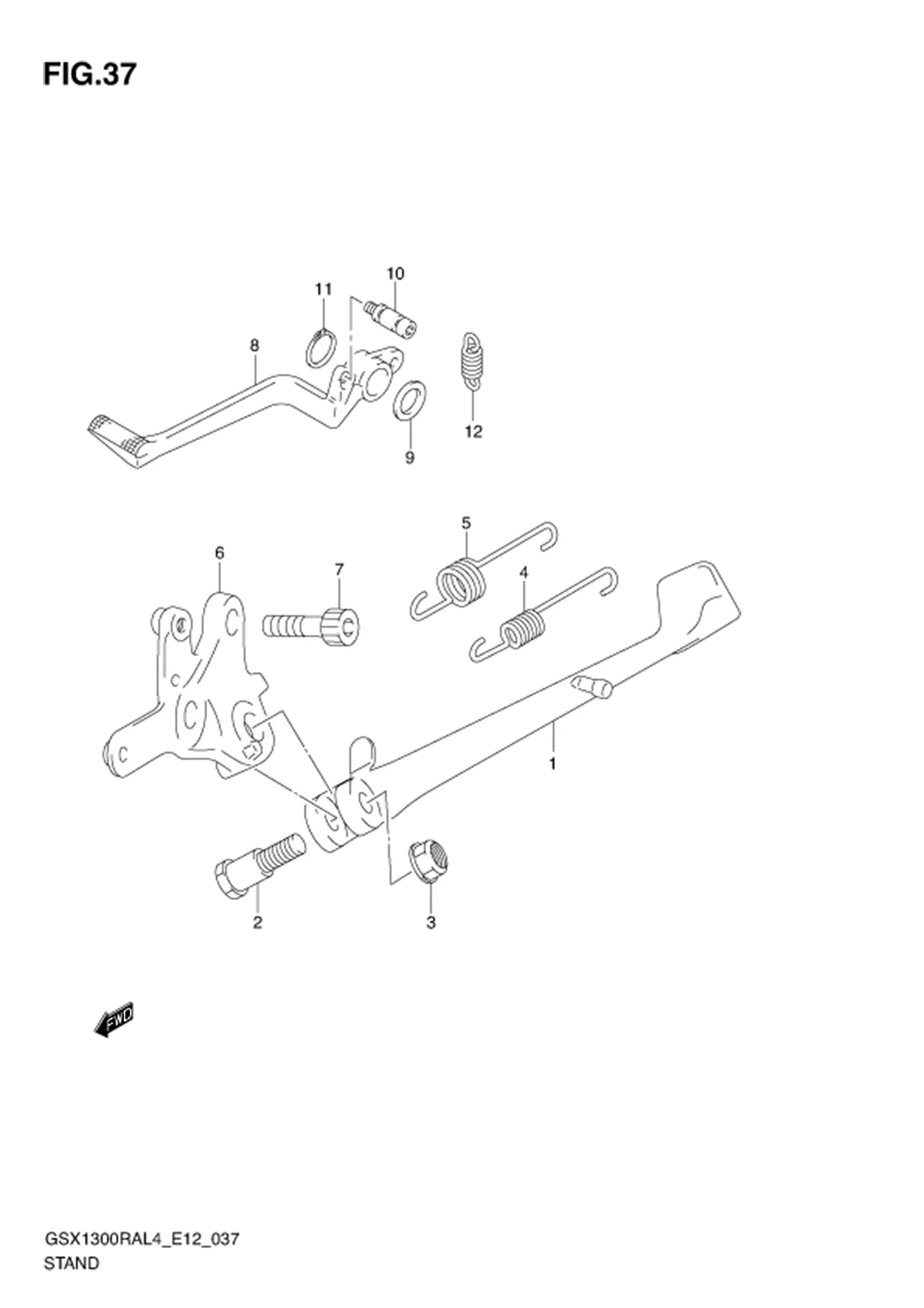

FIG.37 STAND

FIG.37 STAND
No No. Part Description Qty Price Per Pcs Remarks
1 42310-24F00-000 STAND, PROP 1 Rp939.500
2 09111-10059-000 BOLT (10X21) 1 Rp48.000
3 09159-10103-000 NUT 1 Rp23.500
4 09443-14068-000 SPRING 1 Rp40.000
5 09443-19015-000 SPRING 1 Rp42.000
6 42330-24F01-000 BRACKET, PROP STAND 1 Rp893.000
7 09106-12003-000 BOLT (12X35) 2 Rp35.000
8 43111-24F01-000 PEDAL, BRAKE 1 Rp1.247.000
9 09160-18022-000 WASHER (18X24X1) 1 Rp19.500
10 43561-24F00-000 HOOK, RETURN SPRING 1 Rp88.500
11 08331-3118A-000 CLIP 1 Rp14.500
12 09443-13032-000 SPRING 1 Rp30.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
