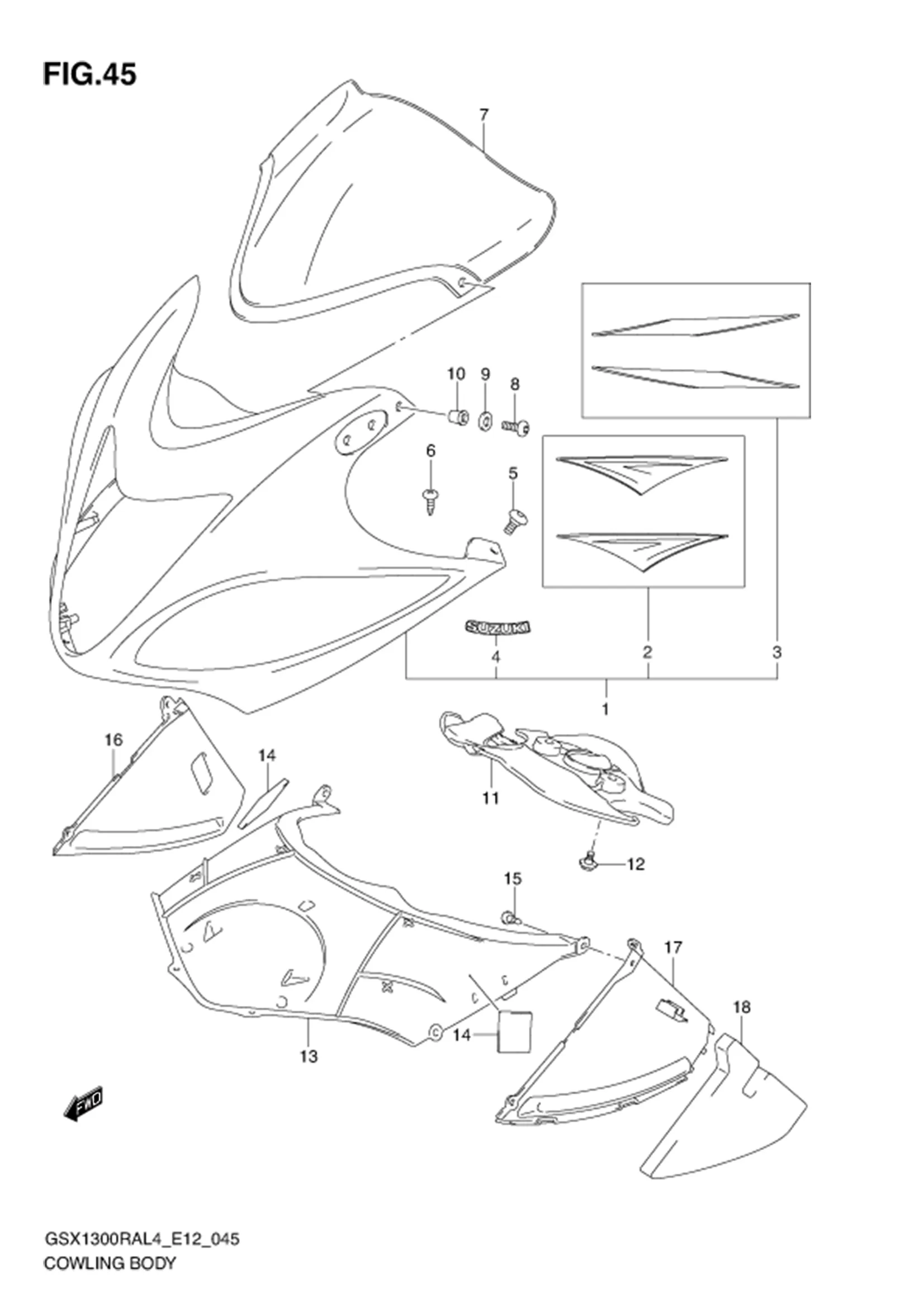

FIG.45 COWLING BODY

FIG.45 COWLING BODY
No No. Part Description Qty Price Per Pcs Remarks
1-2 94401-15H40-YVZ BODY, COWLING (RED) 1 Rp3.738.000 FOR AGS
1-3 94401-15H40-6UX BODY, COWLING (BLACK) 1 Rp3.738.000 FOR AA3
1-1 94401-15H40-YKY BODY, COWLING (BLUE) 1 Rp7.532.000 FOR AJP
2-1 68270-15H40-AWF ?TAPE SET, BODY COWLING UPPER 1 Rp534.000 FOR YKY
2-2 68270-15H40-AV9 ?TAPE SET, BODY COWLING UPPER 1 Rp534.000 FOR YVZ
2-3 68270-15H40-AV8 ?TAPE SET, BODY COWLING UPPER 1 Rp534.000 FOR 6UX
3-1 68270-15H50-AJP ?TAPE SET, BODY COWLING LOWER (BLUE/WHITE) 1 Rp394.000
3-2 68270-15H50-AGS ?TAPE SET, BODY COWLING LOWER (RED/WHITE) 1 Rp394.000
3-3 68270-15H50-AA3 ?TAPE SET, BODY COWLING LOWER (GRAY/BLACK) 1 Rp394.000
4-1 68281-24F10-YWW ?EMBLEM (BLACK) 1 Rp62.000 FOR YKY,YVZ
4-2 68281-24F10-17U ?EMBLEM (GRAY) 1 Rp62.000 FOR 6UX
5 09139-05077-000 SCREW (5X16) 2 Rp24.500
6 09132-05053-000 SCREW (5X16) 2 Rp14.000
7 94611-15H00-000 WINDSCREEN 1 Rp1.716.500
8 09139-05025-000 SCREW (5X14) 2 Rp13.000
9 08322-0105A-000
SUB: 08322-0105B-000		 WASHER 2 Rp3.000
10 09159-05019-000 NUT 2 Rp41.000
11 94458-15H10-000 COVER, LOWER BRACKET 1 Rp126.500
12 09111-06107-000 BOLT (6X12) 2 Rp4.000
13 94419-15H01-000 COVER, BODY COWL 1 Rp203.000
14 DISCONTINUE
SUB: 36930-60A10-000		 CUSHION, COVER 2 -
15 09409-06314-5PK CLIP (BLACK) 6 Rp3.500
16 94461-15H00-000 COWL, INNER RH 1 Rp341.500
17 94462-15H00-000 COWL, INNER LH 1 Rp341.500
18 94463-15H00-000 CUSHION, LH 1 Rp298.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
