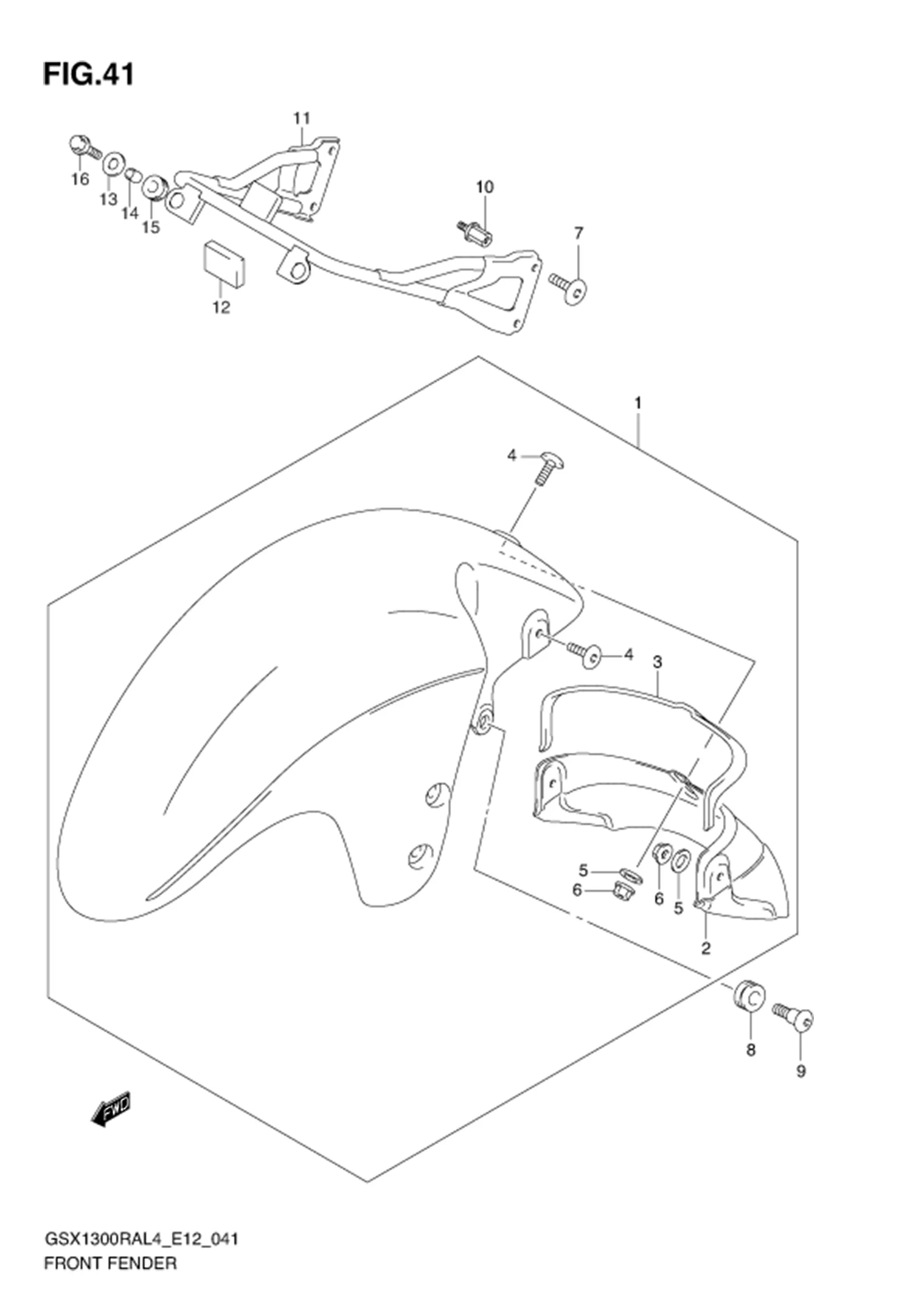

FIG.41 FRONT FENDER

FIG.41 FRONT FENDER
No No. Part Description Qty Price Per Pcs Remarks
1-2 53100-15H00-YVZ FENDER, FRONT (RED) 1 Rp3.018.500 FOR AGS
1-3 53100-15H00-YVB FENDER, FRONT (BLACK) 1 Rp2.510.000 FOR AA3
1-1 53100-15H00-YKY FENDER, FRONT (BLUE) 1 Rp3.018.500 FOR AJP
2 53331-15H00-000 ?MUDGUARD, FRONT FENDER 1 Rp203.000
3 94424-05H00-000 ?CUSHION 1 Rp31.500
4 09139-06129-000 ?SCREW (6X16) 3 Rp21.500
5 09160-06129-000 ?WASHER (6.5X16X1) 3 Rp5.500
6 08319-3106A-000 ?NUT 3 Rp6.500
7 09139-06131-000 SCREW (6X16) 4 Rp24.000
8 09320-09016-000 CUSHION 2 Rp4.000
9 09139-06146-000 SCREW (6X16) 2 Rp21.500
10 48190-15H00-000 BOLT, FRONT NUMBER PLATE 4 Rp302.000
11 48190-15H11-000
SUB: 48190-15H10-000		 BRACKET, NUMBER FRONT 1 Rp2.413.500
12 44543-10G00-000 CUSHION, NUMBER FRONT 1 Rp40.000
13 09160-06028-000 WASHER (6.5X18X1) 2 Rp3.500
14 09180-06283-000 SPACER (6.5X10X7) 2 Rp13.000
15 09320-08510-000
SUB: 09320-08021-000		 CUSHION 2 Rp15.500
16 01550-0616A-000 BOLT 4 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
