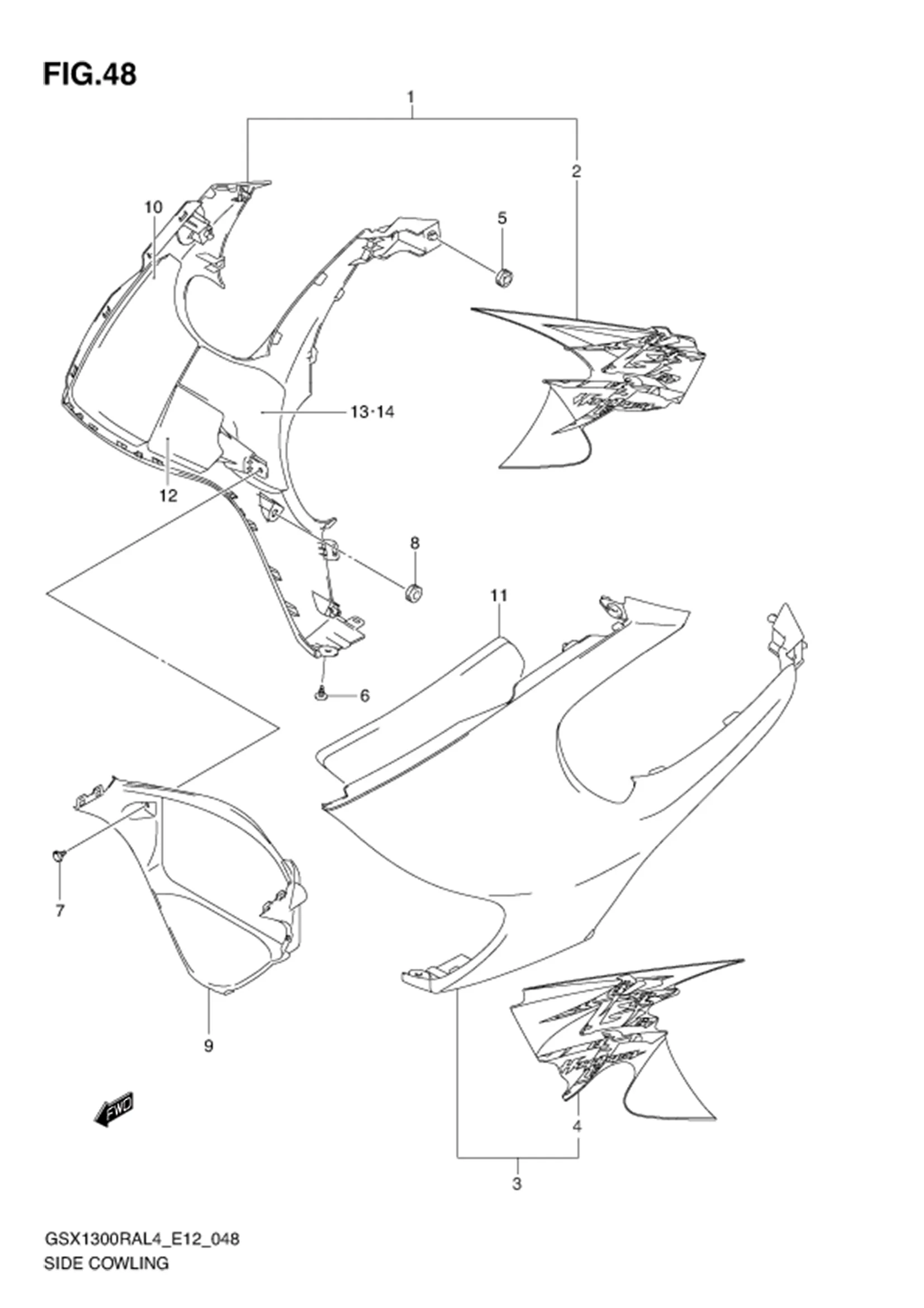

FIG.48 SIDE COWLING

FIG.48 SIDE COWLING
No No. Part Description Qty Price Per Pcs Remarks
1-2 94450-15H50-YWW COWLING, SIDE RH (WHITE) 1 Rp15.766.500 FOR AGS
1-3 94450-15H50-YLF COWLING, SIDE RH (GRAY) 1 Rp14.992.000 FOR AA3
1-1 94450-15H50-AHX COWLING, SIDE RH (WHITE) 1 Rp15.766.500 FOR AJP
2-1 68685-15H40-AWM ?TAPE, SIDE COWLING RH 1 Rp1.605.500 FOR AHX
2-2 68685-15H40-AWL ?TAPE, SIDE COWLING RH 1 Rp1.605.500 FOR YWW
2-3 68685-15H40-AWK ?TAPE, SIDE COWLING RH 1 Rp1.605.500 FOR YLF
3-1 94460-15H50-AHX COWLING, SIDE LH (WHITE) 1 Rp15.766.500 FOR AJP
3-2 94460-15H50-YWW COWLING, SIDE LH (WHITE) 1 Rp15.766.500 FOR AGS
3-3 94460-15H50-YLF COWLING, SIDE LH (GRAY) 1 Rp14.992.000 FOR AA3
4-3 68695-15H40-AWK ?TAPE, SIDE COWLING LH 1 Rp1.605.500 FOR YLF
4-2 68695-15H40-AWL ?TAPE, SIDE COWLING LH 1 Rp1.605.500 FOR YWW
4-1 68695-15H40-AWM ?TAPE, SIDE COWLING LH 1 Rp1.605.500 FOR AHX
5 09320-08028-000 CUSHION 2 Rp11.500
6 94479-35F00-000 CLIP 2 Rp35.000
7 94479-35F00-000 CLIP 2 Rp35.000
8 09321-10018-000 CUSHION 2 Rp31.500
9 94498-15H00-000 COWLING, UNDER CENTER 1 Rp398.000
10 94476-15H00-000 CUSHION, SIDE UPPER RH 1 Rp260.500
11 94486-15H00-000 CUSHION, SIDE UPPER LH 1 Rp260.500
12 94476-15H10-000 CUSHION, SIDE LOWER 2 Rp95.500
13 94474-15H00-000 SHIELD, SIDE RH 1 Rp480.500
14 94484-15H00-000 SHIELD, SIDE LH 1 Rp480.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
