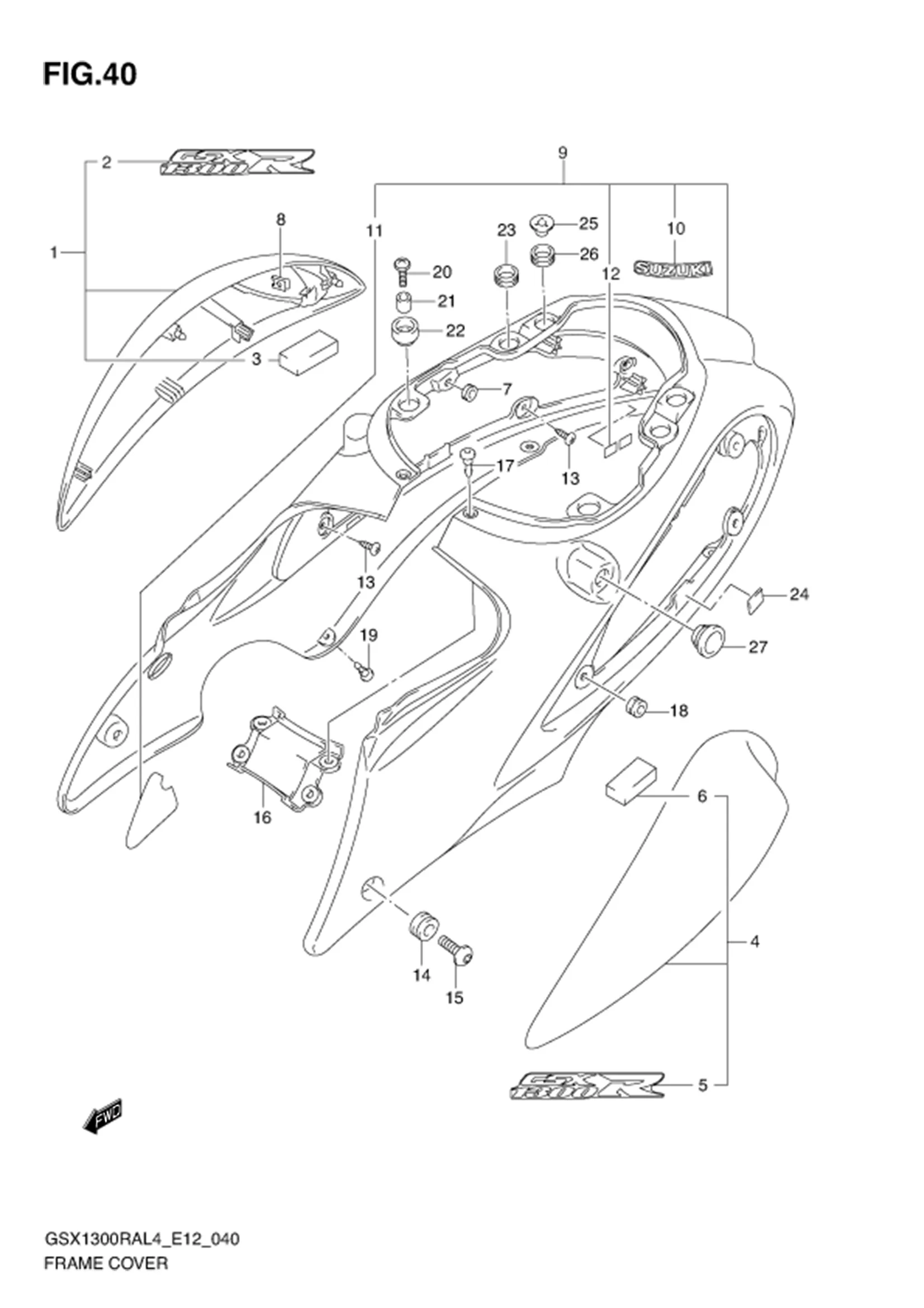

FIG.40 FRAME COVER

FIG.40 FRAME COVER
No No. Part Description Qty Price Per Pcs Remarks
1-2 47110-15H01-YVZ COVER, FRAME RH (RED) 1 Rp2.135.000 FOR AGS
1-1 47110-15H01-YKY COVER, FRAME RH (BLUE) 1 Rp2.135.000 FOR AJP
1-3 47110-15H01-6UX COVER, FRAME RH (BLACK) 1 Rp2.135.000 FOR AA3
2-1 68131-15H00-AWJ ?EMBLEM, FRAME COVER 1 Rp116.000 FOR YKY
2-2 68131-15H00-AWH ?EMBLEM, FRAME COVER 1 Rp128.500 FOR YVZ
2-3 68131-15H00-AWG ?EMBLEM, FRAME COVER 1 Rp128.500 FOR 6UX
3 47511-15H00-000 ?CUSHION 2 Rp29.000
4-1 47210-15H01-YKY COVER, FRAME LH (BLUE) 1 Rp2.135.000 FOR AJP
4-2 47210-15H01-YVZ COVER, FRAME LH (RED) 1 Rp2.135.000 FOR AGS
4-3 47210-15H01-6UX COVER, FRAME LH (BLACK) 1 Rp2.135.000 FOR AA3
5-2 68131-15H00-AWH ?EMBLEM, FRAME COVER 1 Rp128.500 FOR YVZ
5-3 68131-15H00-AWG ?EMBLEM, FRAME COVER 1 Rp128.500 FOR 6UX
5-1 68131-15H00-AWJ ?EMBLEM, FRAME COVER 1 Rp116.000 FOR YKY
6 47511-15H00-000 ?CUSHION 2 Rp29.000
7 09320-06027-000
SUB: 09320-06016-000		 CUSHION 4 Rp3.500
8 09148-04019-000
SUB: 09148-04034-000		 NUT 2 Rp6.500
9-1 47310-15H20-YKY COVER, FRAME CENTER (BLUE) 1 Rp3.333.500 FOR AJP
9-2 47310-15H20-YVZ COVER, FRAME CENTER (RED) 1 Rp3.333.500 FOR AGS
9-3 47310-15H20-YVB COVER, FRAME CENTER (BLACK) 1 Rp3.333.500 FOR AA3
10-2 68641-19F00-17U ?EMBLEM (BLACK) 1 Rp60.500 FOR YVB
10-1 68641-19F00-YWW ?EMBLEM (GRAY) 1 Rp60.500 FOR YKY,YVZ
11 47312-15H00-000 ?TAPE, CENTER 2 Rp112.500
12 45516-01H00-000 ?CUSHION 4 Rp30.000
13 09136-05062-000 SCREW (5X15) 6 Rp17.500
14 09320-09016-000 CUSHION 2 Rp4.000
15 09139-06190-000 SCREW (6X20) 2 Rp7.000
16-1 47411-15H00-YKY LID, CENTER (BLUE) 1 Rp452.000 FOR AJP
16-2 47411-15H00-YVZ LID, CENTER (RED) 1 Rp452.000 FOR AGS
16-3 47411-15H00-YVB LID, CENTER (BLACK) 1 Rp452.000 FOR AA3
17 09409-06314-5PK CLIP (BLACK) 4 Rp3.500
18 09320-09016-000 CUSHION 6 Rp4.000
19 09409-06329-000 CLIP 4 Rp7.000
20 09136-06105-000 SCREW (6X20) 2 Rp12.500
21 DISCONTINUE
SUB: 09180-06288-000		 SPACER (6.5X10X11) 2 -
22 47115-16G00-000 CUSHION, UPPER FRONT 2 Rp28.500
23 47191-24F00-000 CUSHION, UPPER CENTER 2 Rp36.500
24 DISCONTINUE
SUB: 33651-37000-000		 CUSHION, LOWER 2 -
25 47190-24F21-000 WASHER, UPPER REAR 2 Rp70.000
26 47191-24F30-000 CUSHION, UPPER REAR 2 Rp36.500
27 47191-24F20-000 SPACER, SIDE CENTER 2 Rp66.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
